Description of Double cone rotating vacuum dryer:
SZG double cone rotary vacuum dryer is a new generation drying apparatus our company developed on the basis of technology of domestic similar products. It uses belt-chain two elastic coupling manner thus it runs smoothly. Specially designed technology fully reflects two good concentric shafts.Heating medium and vacuum system use reliable vacuum system use reliable mechanical seal or US-technology rotary joint, on which basis we have developed SZG-A, with stepless speed regulating and constant temperature control. We also supply hundreds sets to the customers every year. As for working medium, it may be thermal oil or steam or hot water. For drying the adhesive raw materials, we have designed specially a stirring palate butter for you.
When the heat source (hot water, low temperature steam, or thermal oil) pass through the sealed jacket, the heat will be transmitted to raw material through the inner shell.
Under action of driving power, the tank is rotated slowly and the raw material is mixed continuously. The purpose of reinforced drying can be realized.
The raw material is under vacuum condition. When steam pressure is dropping, it makes the moisture (solvent) at the surface of raw material become saturation and then evaporates. The solvent will be discharged through vacuum pump.
The moisture (solvent) of raw material will infiltrate. Evaporate and discharge continuously.The production processes are carried out continuously and the drying can be done in a short time.

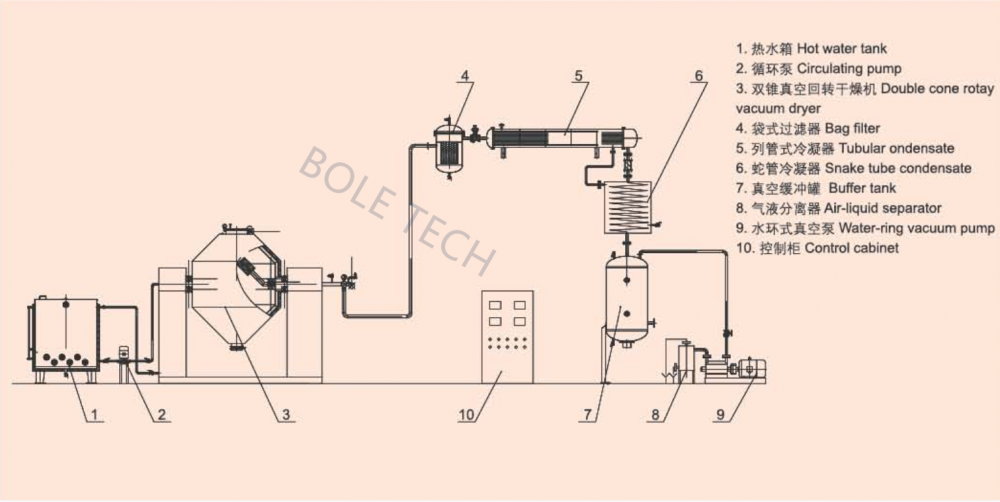

Note: 1. The heating source in the flow chart is hot water. The heating source also can be steam or thermal oil.
2. If you do not need to recover the organic solvents, the condenser will be not needed.
Application of Double cone rotating vacuum dryer:
Double cone rotary vacuum dryer is suitable for vacuum mixing and drying powder and granules materials in pharmaceutical, nutriceutical, food and chemical, new energy, battery materials industry. For example: Thermal sensitive materials, the materials that is easy to oxidize, the materials that has solvent to recover, and the materials that needs very low moisture content, etc.
Parameters of Double cone rotary vacuum dryer:
|
Model
|
Volume
(L)
|
Loading volume
(L)
|
Loading capacity
(kg/batch)
|
Rotary speed
(rpm)
|
Power of motor
(kW)
|
|
SZG-100
|
100
|
40
|
20
|
3~13
|
0.75
|
|
SZG-500
|
500
|
200
|
100
|
3~13
|
1.5
|
|
SZG-1000
|
1000
|
400
|
200
|
3~13
|
3
|
|
SZG-1500
|
1500
|
600
|
300
|
3~13
|
4
|
|
SZG-2000
|
2000
|
800
|
400
|
3~13
|
5.5
|
|
SZG-3500
|
3500
|
1400
|
700
|
3~13
|
7.5
|
|
SZG-4500
|
4500
|
1800
|
900
|
3~10
|
11
|
|
SZG-5000
|
5000
|
2000
|
1000
|
3~10
|
15
|
If you are interested in the product, contact 2bvideo.com for more information for more information
