Extruding granulator

2 year ago
38 0
Product details

Description of Extruding granulator:

Rotary extruding granulator is suitable for making mixed damp material to strip shape granules. It is widely used in pharmaceutical, nutriceutical, food, animal remedy, agrochemical, fertilizer, chemical and solid drinking industries. The size of granule can be regulated by changing the sieve.

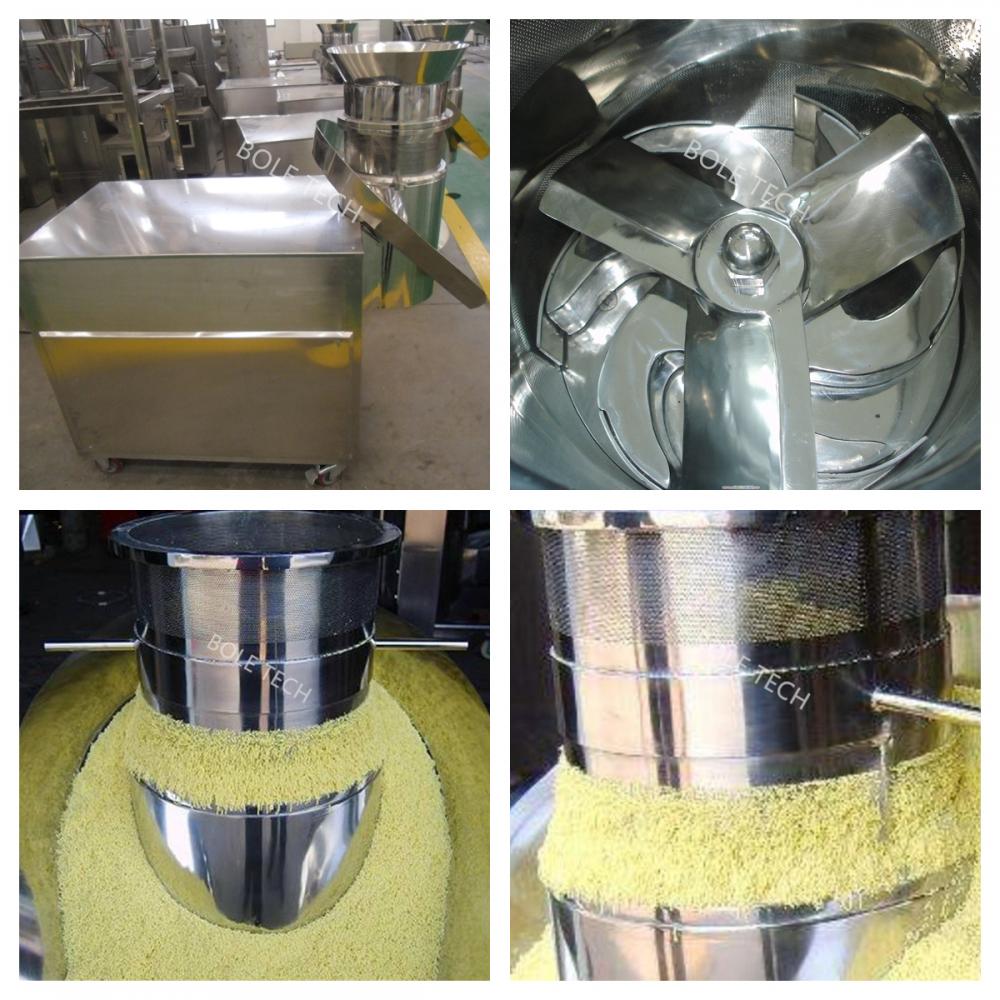

XL rotary extruding granulator is used for wet granulation, which mainly consists of drive motor, feeding hopper, extrusion blades, screen and discharging chute. Wet mass is gravity fed into the granulator and wiped through the perforated screen by extrusion blades to get require-sized cylindrical extrudates. Finished granules are discharged into the barrel via the chute. The gap between blade and screen is adjustable.
XL extruding granulator is most often used in pharmaceutical, food and chemical industries for making granules with wet mass before spheronization.

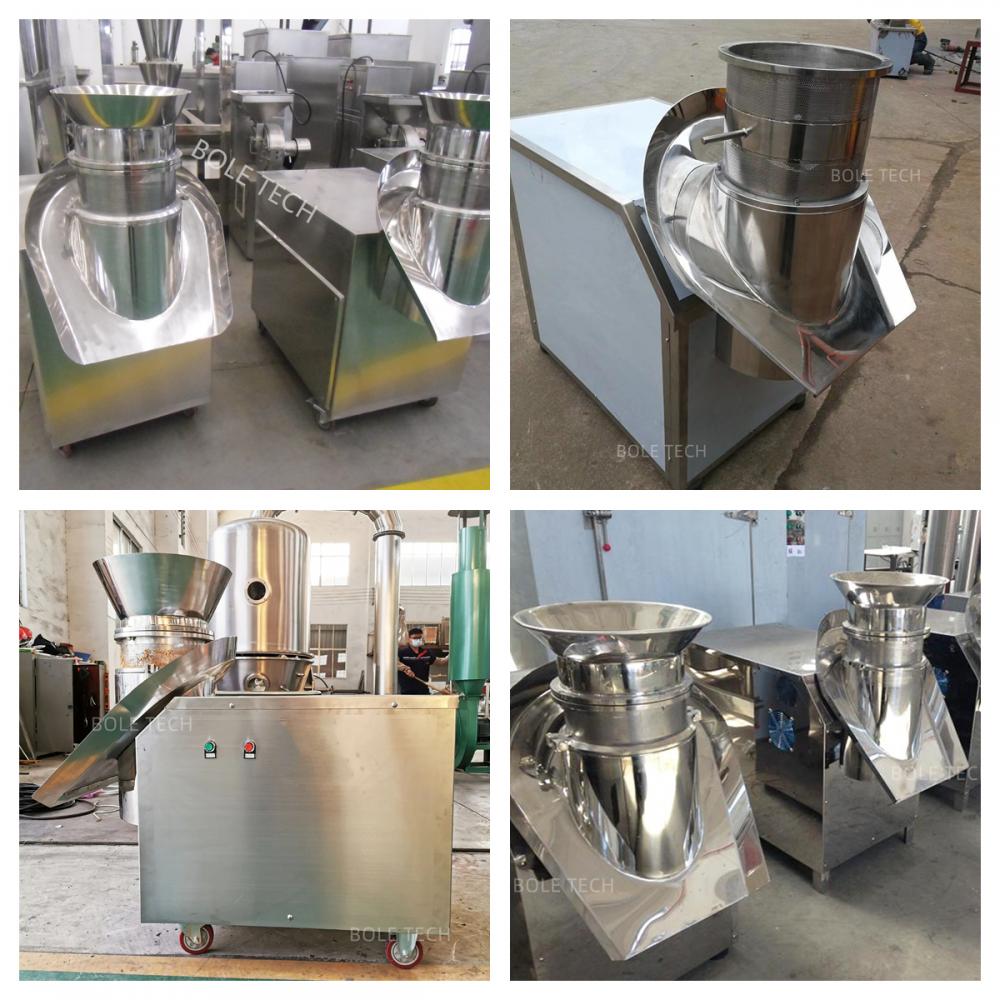

Extruding Granulator



Features of Extruding granulator:

1. Press wet mass through perforated screen to get require-sized cylindrical extrudates
2. Wet granulation for food, chemical and pharmaceutical products
3. Capacity: 20-400 kg/h
4. GMP design
5. Different granule size can be achieved by changing perforated screen
6. Robust,simple and compact design requires minimum maintenance;
7. Made by SUS304 or SUS316 and mirror polished to meet GMP sanitary standards.
8. Uniform granules, higher output, less fines and low noise.
9. Special drive shaft sealing design can 100% make sure contamination free of product.

Extruding GranulatorRotary Granulator



Parameters of Extruding granulator:

Model
XL-120
XL-250
XL-300
Diameter of granules (mm)
0.8~2.5
0.8~2.5
0.8~2.5
Capacity (kg/h)
30~50
60~200
100~400
Power (kW)
1.5
4
5.5
Overall dimension (mm)
650×400×660
700×500×1230
880×630×1230
