Description of Spin flash dryer:

XSG Spin Flash Dryer is widely used for drying materials such as paste, cake shape, powder, granules material, etc. It is a new type high drying efficiency and low energy consumption equipment that researched and developed by our company.


Hot air enters the stirring part of drying chamber from the bottom, material is stirred by stirring device and then the hot air
exerts strong shearing, blowing, floating and rotating effect to material. Therefore material is crushed by centrifugal, shearing, impacting and friction effect. It strengthens the heat exchanging process. In the bottom of drying chamber, big and damp granules are crushed by stirring device, the particles with low moisture content and small size are lifted by rotary air stream, and be further dried. Gas and solid two phases rotary flow, inertia of solid phase is bigger than gas phase, the relative velocity between gas phase and solid phase is high, heat exchanging efficiency is strengthened, so the drying intensity of this machine is high.

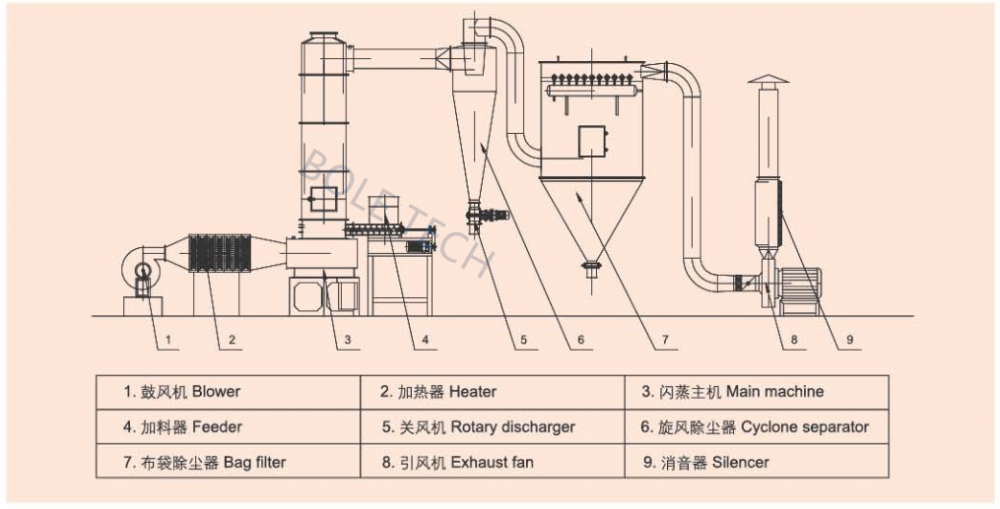

Xsg


Features of Spin flash dryer:

1 Adopt 2 lines tangential air enter into volute at the best position, it will improve or remove blind Angle of wind and also the wind in the weak
2 Be good at controlling the powder's moisture, fineness, and hold time. for control the speed coordinating and unifying at spinning disk work witwind-enter, it can ensure the outlet wind with low temperature, it will also reduce the energy consumption.
3 The special alloy steel be used in the rotary blade, the layout structure with unique, it has the character of small erosion, contact surface wide, cutting force strong.
4 Adopt the newly leak-proof structure; the main engine bearing life will be delayed and the bearing black with the cooling device.
5 In order to ensure the powder water content is less than 0.5%, so increase the height than the original basis, it is also equipped with a spinning disk, which will make the powder quality and particle size meet your requirement.
Due to the gas-solid corresponding relative velocity big, even though the mix temperature is around 80~90ºC, the powder temperature is still below 45ºC condition, it will help to pack and save energy.

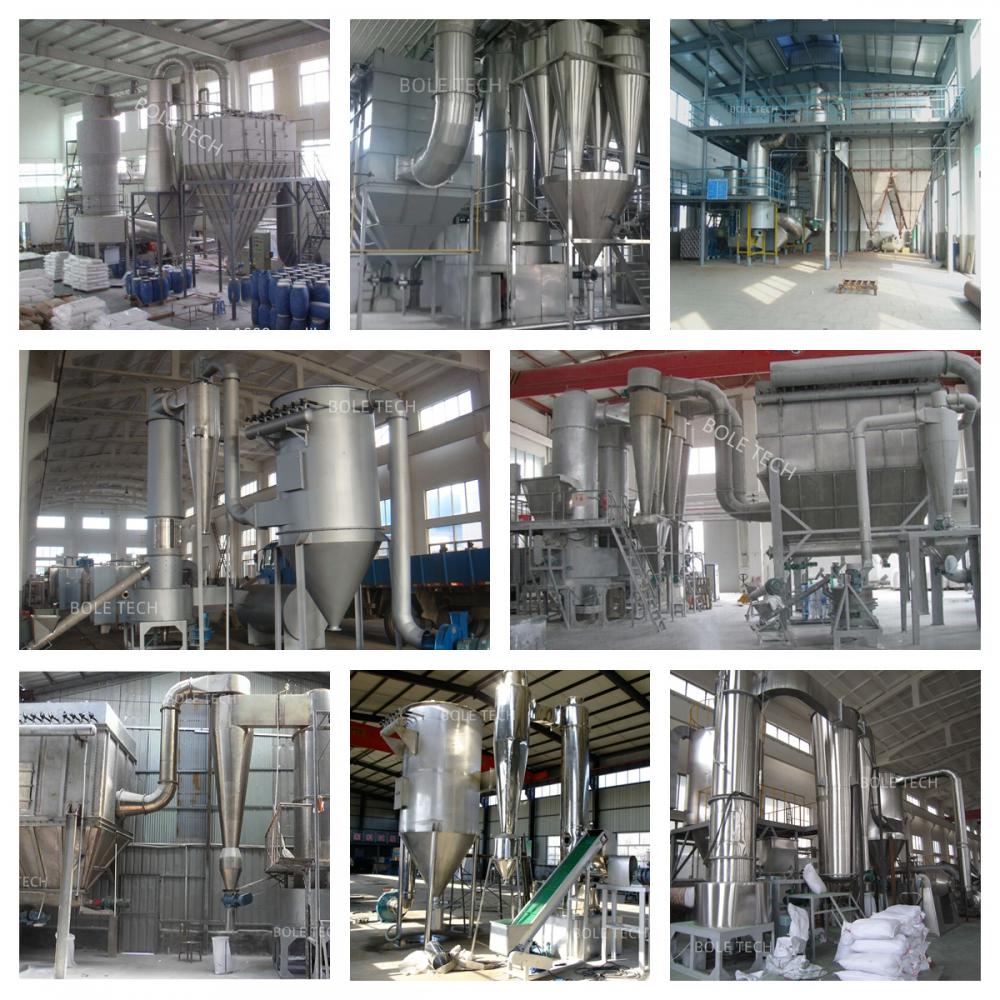

Spin Flash Dryer


Parameters of Spin flash dryer:

Model
XSG-4
XSG-6
XSG-8
XSG-10
XSG-12
XSG-14
XSG-16
Inner diameter (mm)
400
600
800
1000
1200
1400
1600
Air volume (m3/h)
2100
4500
7500
12000
18000
24000
30000
Water evaporation (kg/h)
60
130
240
400
610
800
1000
Installed power (kW)
25
37
48
75
85
98
135
Max. height (m)
4.6
5.5
6.0
6.5
7.0
7.8
8.5
Occupied area (m2)
19
26
34
45
58
76
110
