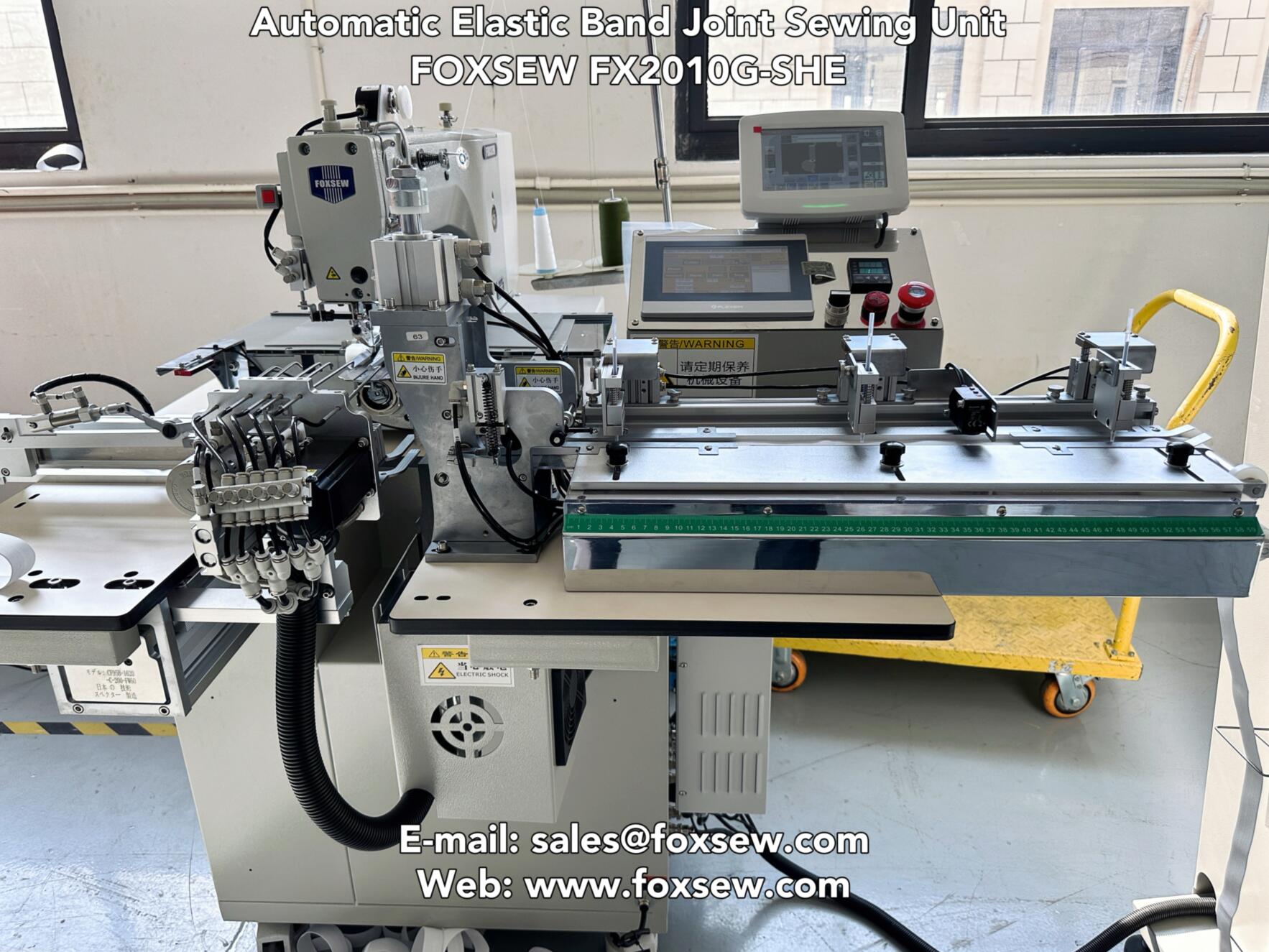

FOXSEW Automatic Elastic Band Joining Machine, Automatic Elastic Band Loop Joint Sewing Machine Unit
FOXSEW Automatic Elastic Ring Joint Sewing Machine, automatic measurement, automatic cutting, automatic sewing, high production efficiency, reducing the operation of the professional skills requirements, Reducing the labors required for elastic cutting and joining, a non-skilled operator can operate 4-6 machines independently. Stable sewing size can improve the efficiency of elastic joining. To minimize the waste of raw materials, increase the production output and quality.
Working Video: www.foxsew.com/company-video/automatic-elastic-tape-joint-sewing-machine-1393.html
Features: High Speed, Logo Sensor, Shape Device, Different Size, Joint Sensor, Elastic Collection, High Efficiency, 1 machine equals 5 labors, Bottom thread sensor, Ultrasonic cutting, width up to 10cm.
This machine adopts imported SMC electrical parts, fast operating speed, Logo Sensor can read different color to positioning singe logo, multi-logos which has best cost performance. Shape and feeding device, adopting gravity theory makes elastics vertical shaping and remove folding mark, meanwhile it has heating and preshrunk function. Different size, Elastic with logo, when you make one size and have to waste materials, you can use our machine to make two sizes to save the cost. Joint Sensor, Elastics is always used staple or tape for the joint, when the joint goes through the sensor machine will cut the joint and go on working. Automatic collection device, you can set the quantity for each rod by yourself. Large touch screen, easy to operate, just need to set up the parameter on the panel is ok, it`s very easy and convenient. Advanced device, nice side, adopting front block and back push air cylinder, make sure each elastics with neat side.
Specifications:
| Model NO.: | FX2010G-SHE |
| Needle Type: | DPx5 14#-16# |
| Number of Needle: | Single Needle |
| Sewing Speed: | 3000r.p.m |
| Jointing Stitch Width: | 0.8-10cm |
| Presser Foot Lift: | 13mm |
| Packing Size: | 1320x1220x1500mm |
| Weight: | 200KGS. |

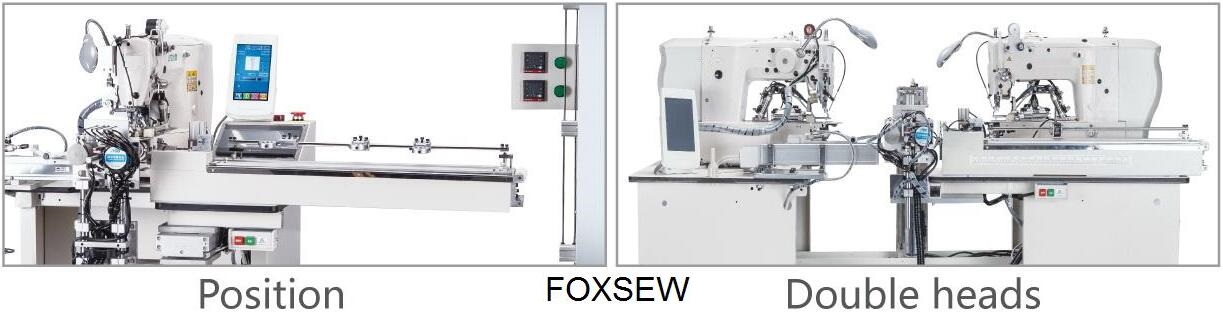

Product Images: Automatic Elastic Band Joining Machine
