5 ohm ITO PET FILM

11 month ago
29 0
Product details

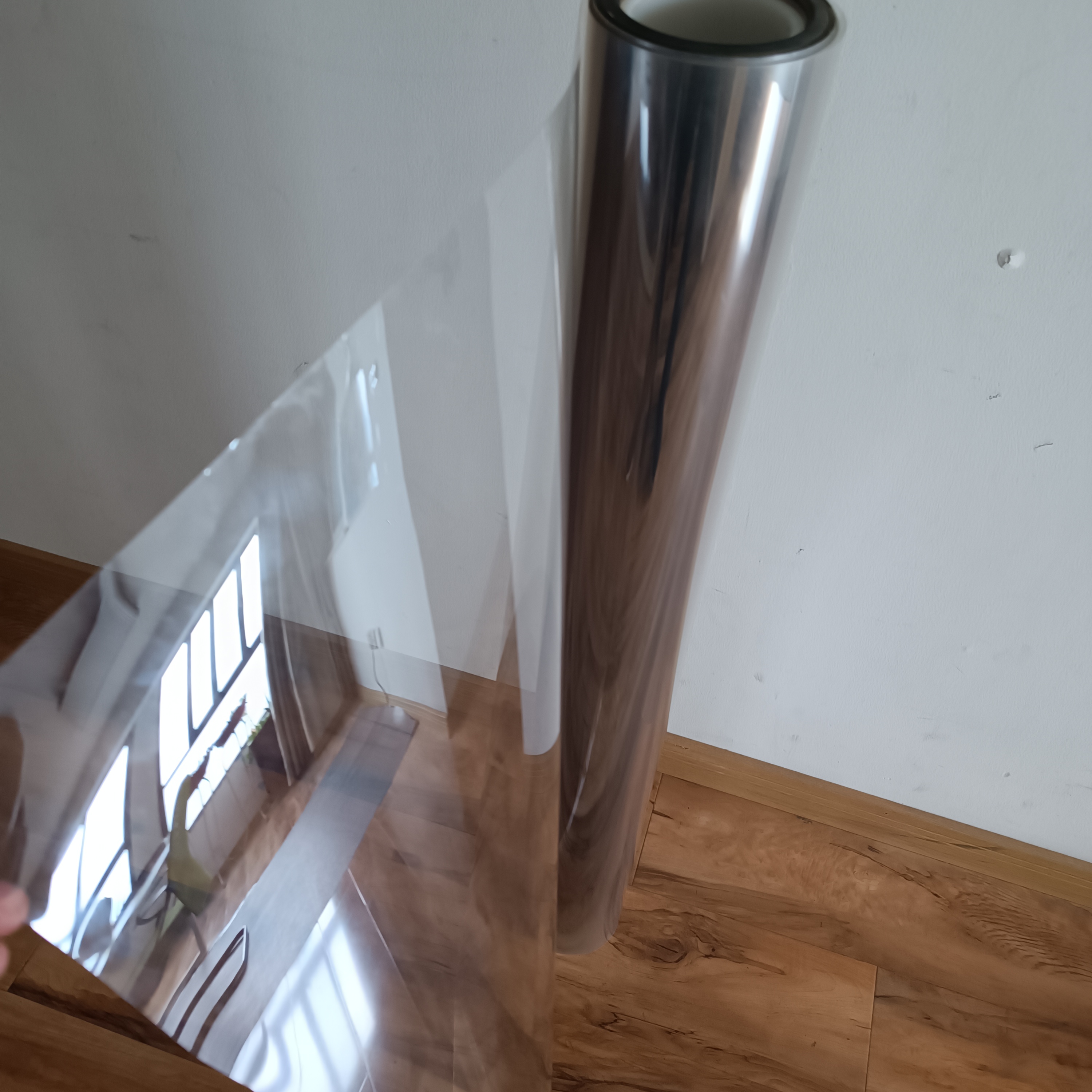

5 OHM ITO PET FILM

High Transparent ITO PET FILM 5 OHM/SQ is designed for low resistance clear electrode of flexible circuit, flexible solar cell and transparent EMI shielding for LCD/TFT displays. Substrate is optical high temperature PET film, regular thickness 0.125mm (5mil) with one side ITO sputtered, remains high transparency upto 78%.
Specification
Thickness
0.125mm and customized
Width
1220mm and slitted
Resistance
5 ohm/sq
Resistance Tolerance
+/-2 ohm/sq
Transparency
>78%
Haze
<3%
Adhesive
Can be customized
Protective film
Both sides
High Transparency

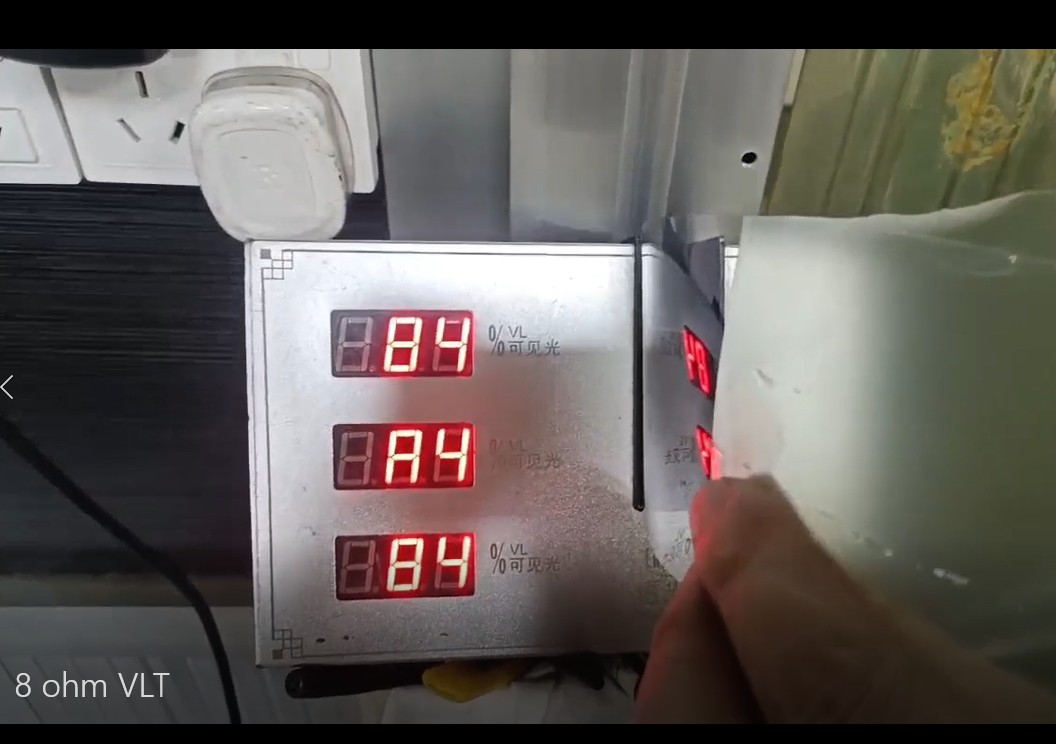

8-10 ohm/sq ITO PET FILM VLT reaches 84%. 5 ohm reaches 79%

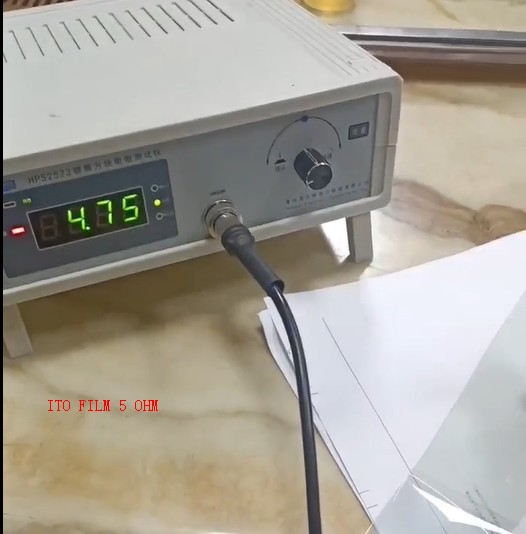

Low Resistance

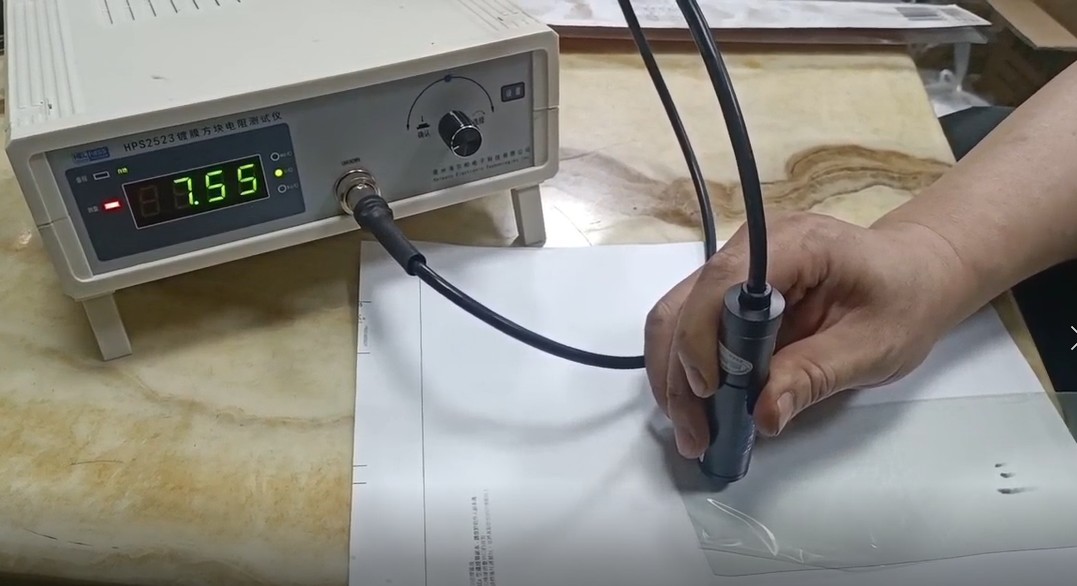

5 & 8 ohm ITO 4 PROBE Test
ITO Surface Tension
38 Dyne Surface tension test
Packing & Delivery
ITO film roll wrapped with enough foam for protection,standard roll is hanging to prevent any possible hit. Carton is filled with enough foam again suitable for long distance transportation.
