ADRPE-3 Sporlan Type Discharge Hot Gas Bypass Valve
The primary function of ADR discharge hot gas bypass valves, referred to as DBV valves, is to limit the minimum evaporating pressure during periods of low load either to prevent coil icing or avoid operating the compressor at a lower suction pressure than it was designed to operate. Each valve is factory tested to ensure positive leak-free performance.
Technical Data:
Model No
Valve Type
Equalizer Size
Inlet & Outlet Size
Adjustment Range
(psig)
Standard Setting
(psig)
ADRIE-1-1/4
Externally
Equalized
1/4'' ODF
3/8'' ODF
0 to 55
0 to 75
0 to 100
28
38
50
ADRSE-2
3/8'' ODF
0 to 30
0 to 80
20
60
1/2'' ODF
5/8'' ODF
3/8'' SAE
1/2'' SAE
5/8'' SAE
ADRPE-3
1/2'' ODF
5/8'' ODF
1/2'' SAE
5/8'' SAE
ADRHE-6
5/8'' ODF
7/8'' ODF
1-1/8'' ODF
Cooling Capacity (KW):
R22
|
Min Evaporator Temperature
|
Adjustment Range
|
||||||||
|
ADRIE-1-1/4
|
ADRSE-2
|
ADRPE-3
|
ADRHE-6
|
||||||
|
0/55psig
|
0/75psig
|
0/100psig
|
0/30psig
|
0/80psig
|
0/30psig
|
0/80psig
|
0/30psig
|
0/80psig
|
|
|
0/3.79bar
|
0/5.17bar
|
0/6.9bar
|
0/2.07bar
|
0/5.52bar
|
0/2.07bar
|
0/5.52bar
|
0/2.07bar
|
0/5.52bar
|
|
|
5℃
|
-
|
2.04
|
1.86
|
-
|
12.3
|
-
|
21.1
|
-
|
32.2
|
|
-5℃
|
1.55
|
2.25
|
1.9
|
-
|
12.5
|
-
|
22
|
-
|
34.8
|
|
-15℃
|
2.22
|
2.11
|
1.72
|
13.7
|
12.9
|
26
|
23.2
|
48.9
|
38.3
|
|
-25℃
|
2.08
|
1.76
|
1.55
|
13.2
|
12.8
|
26.2
|
23.4
|
49.6
|
38.7
|
R134a
|
Min Evaporator Temperature
|
Adjustment Range
|
||||||||
|
ADRIE-1-1/4
|
ADRSE-2
|
ADRPE-3
|
ADRHE-6
|
||||||
|
0/55psig
|
0/75psig
|
0/100psig
|
0/30psig
|
0/80psig
|
0/30psig
|
0/80psig
|
0/30psig
|
0/80psig
|
|
|
0/3.79bar
|
0/5.17bar
|
0/6.9bar
|
0/2.07bar
|
0/5.52bar
|
0/2.07bar
|
0/5.52bar
|
0/2.07bar
|
0/5.52bar
|
|
|
5℃
|
1.41
|
1.51
|
1.19
|
-
|
9.4
|
-
|
17.4
|
-
|
32.9
|
|
-5℃
|
1.44
|
1.37
|
1.12
|
9.15
|
8.59
|
17.4
|
15.5
|
32.9
|
25.5
|
|
-15℃
|
1.34
|
1.09
|
0.98
|
8.66
|
-
|
17.2
|
-
|
33.1
|
-
|
R404A
|
Min Evaporator Temperature
|
Adjustment Range
|
||||||||
|
ADRIE-1-1/4
|
ADRSE-2
|
ADRPE-3
|
ADRHE-6
|
||||||
|
0/55psig
|
0/75psig
|
0/100psig
|
0/30psig
|
0/80psig
|
0/30psig
|
0/80psig
|
0/30psig
|
0/80psig
|
|
|
0/3.79bar
|
0/5.17bar
|
0/6.9bar
|
0/2.07bar
|
0/5.52bar
|
0/2.07bar
|
0/5.52bar
|
0/2.07bar
|
0/5.52bar
|
|
|
5℃
|
-
|
-
|
1.94
|
-
|
-
|
-
|
-
|
-
|
-
|
|
-5℃
|
-
|
2.36
|
2.11
|
-
|
13.7
|
-
|
23.6
|
-
|
36.6
|
|
-15℃
|
2.35
|
2.5
|
1.97
|
-
|
14.1
|
-
|
25.2
|
-
|
41.2
|
|
-25℃
|
2.39
|
2.15
|
1.79
|
14.7
|
14.1
|
28.4
|
25.6
|
53.8
|
42.6
|
R407C
|
Min Evaporator Temperature
|
Adjustment Range
|
||||||||
|
ADRIE-1-1/4
|
ADRSE-2
|
ADRPE-3
|
ADRHE-6
|
||||||
|
0/55psig
|
0/75psig
|
0/100psig
|
0/30psig
|
0/80psig
|
0/30psig
|
0/80psig
|
0/30psig
|
0/80psig
|
|
|
0/3.79bar
|
0/5.17bar
|
0/6.9bar
|
0/2.07bar
|
0/5.52bar
|
0/2.07bar
|
0/5.52bar
|
0/2.07bar
|
0/5.52bar
|
|
|
5℃
|
-
|
2.74
|
2.29
|
-
|
14.9
|
-
|
26.4
|
-
|
42.6
|
|
-5℃
|
2.15
|
2.74
|
2.22
|
-
|
14.9
|
-
|
26.4
|
-
|
42.6
|
|
-15℃
|
2.6
|
2.39
|
1.97
|
15.9
|
15.2
|
30.4
|
27.5
|
57.3
|
45.7
|
|
-25℃
|
2.39
|
1.97
|
1.76
|
15.2
|
14.9
|
30.4
|
27.1
|
58
|
45.4
|

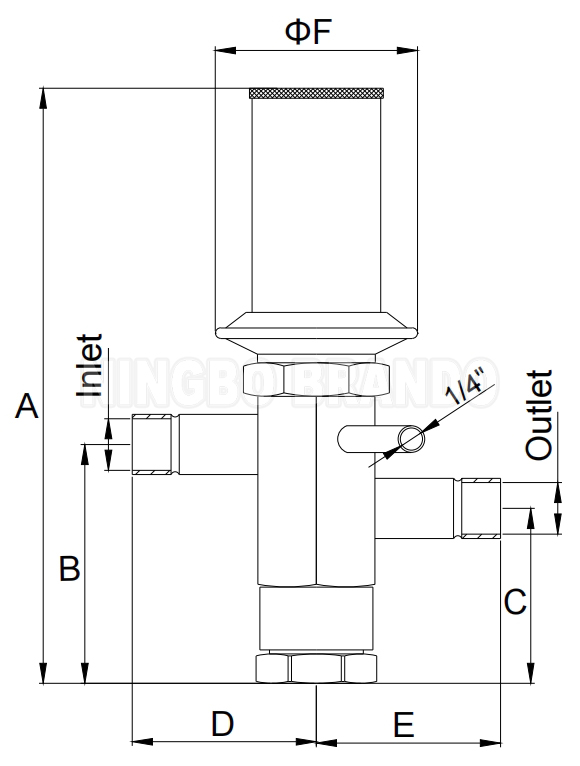

Main Dimension:
Model No
Inlet & Outlet
A
B
C
D
E
F
ADRIE-1-1/4
3/8'' ODF
124
46
35
43
34
50
ADRSE-2
3/8'' ODF
164
64
50
37
37
70
1/2'' ODF
35
35
5/8'' ODF
38
38
3/8'' SAE
43
45
1/2'' SAE
48
50
5/8'' SAE
53
54
ADRPE-3
1/2'' ODF
176
72
53
43
41
70
5/8'' ODF
46
45
1/2'' SAE
53
53
5/8'' SAE
56
56
ADRHE-6
5/8'' ODF
180
73
48
118
118
70
7/8'' ODF
1-1/8'' ODF
