Product details

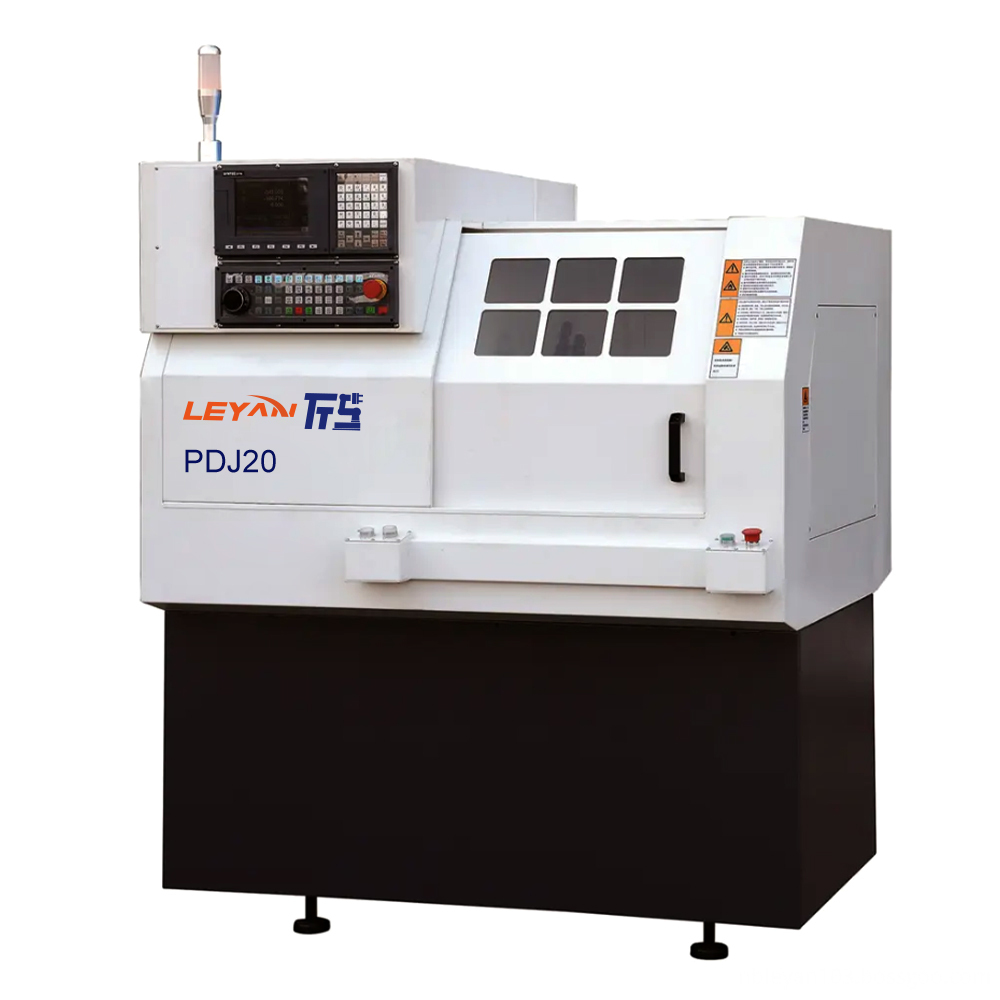

PDJ20 High-speed Numerical Controlling Flat Lathe

● Numerical control system: Adopt Taiwan SYNTEC system, high stability, high precision.

● High Cnc Auto Lathe precision spindle. Use the advanced structure of motorized spindle, spindle bearing adopts Japan NSK high precision angular contact ball bearing, ensure the accuracy of the spindle high rigid and durable properties, main shaft runout & le; 2 & mu; M.
● Efficient Lathe Machining. Highest spindle speed 6000 r/min, x, z axis fast moving speed can reach 18 m/min.
● High rigid bed. Stable structure design, high quality baking the whole cast iron bed, strong rigidity.
● Row of knife rest. Novel row knife rest make repetitive error to a minimum, in high speed accurately, can substantially save processing time.
● Auto Lathe Machine tool guideway structure. Machine tool guideway adopt Taiwan PMI, HIWIN linear guide has high precision, automatic lubrication system configuration set river valley, ensure that the axis high speed feed for a long time.

● Cnc Auto Lathe----Automation. Can be customized different automatic feeding device to realize automation of processing.

Pdj20

Specification：

Technical Parameter	PDJ20
Maximum Turning Diameter of Bed	Ф240 mm
Turning Diameter X Axis Mesa	Ф120 mm
The Largest Processing Bar Diameter	Ф20 mm
Maximum Processing Length	100 mm
The Highest Speed	6000 r/min
The Spindle Control Mode	Frequency conversion stepless speed regulation
The Spindle The Hole Diameter	Ф26 mm
Built-in Spindle Motor	2.2 Kw
X, Z axis is Fast Moving Speed	18m/min
The X axis Stroke	220mm（Can order 320 mm）
The Z axis Stroke	180mm
X axis of the Torque	2.39N.m
Z axis of the Torque	2.39N.m
Car handle Size	□16mmX16mm
The Spindle to Beat	≤0.002mm
Repeat Positioning Accuracy	≤0.003mm
Machine Weight	1300 kg
Machine tool overall dimensions (length x width x height)	1350x1040x1560mm

Main parts brand:

Product	Brand	Place of Origin
Numerical Control System	SYNTEC 22TB CNC controller	Taiwan
Spindle Configuration	Motorized spindle	Taiwan
Spindle Driver	SYNTEC	Taiwan
Servo Motor	SYNTEC	Taiwan
Servo Driver	SYNTEC	Taiwan
Spindle Bearing	NSK (or NTN, P4 level)	Japan
Lead Screw	THK	Japan
Guide Rail	THK	Japan
Lead Rod Bearing	NSK (or NACHI)	Japan
Coupling	KTR	Germany
Spindle, Screw lock nut	YIN XI	Taiwan
Main Electrical Components	Schneider	FRANCE
Pneumatic Element	AIRTAC	Taiwan
Lubrication System	Rihua valley	Japan
Spindle Encoder	SYNTEC	Taiwan
Chuck and Cylinder	PMT	Japan
