PVC high speed folding up door

4 year ago
78 0
Product details

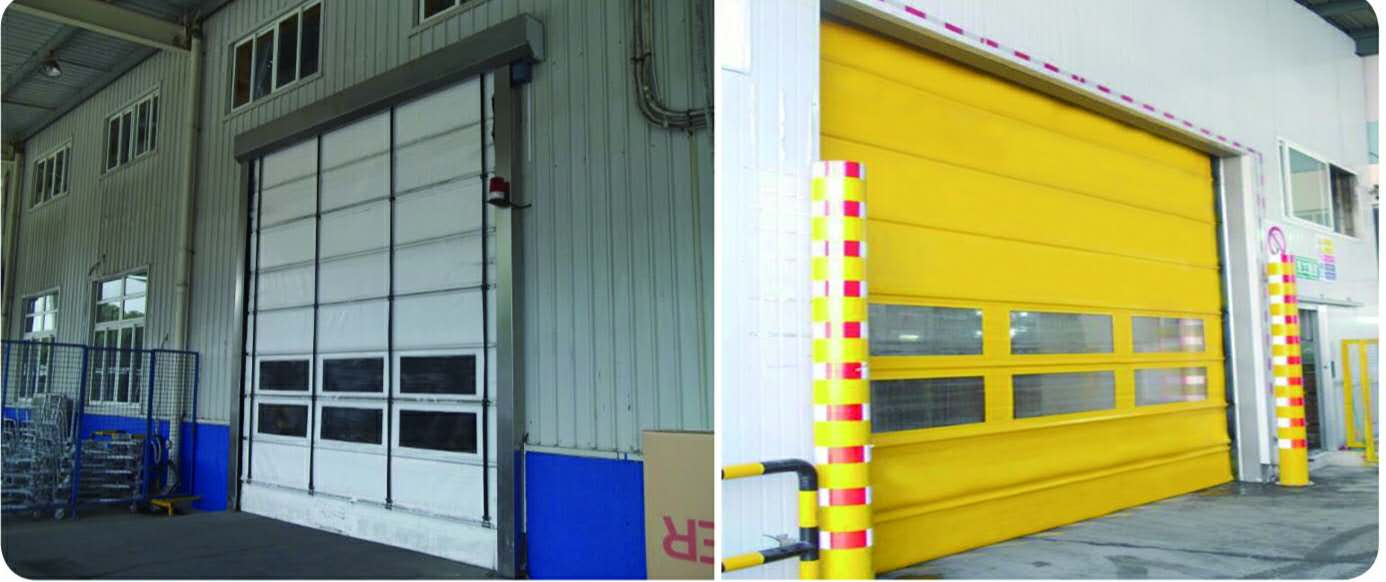

Industrial Aluminum Interior Windproof Stacking Door


The industrial stacking door has various functions such as heat preservation, cold preservation, insect proof, windproof, dustproof and soundproof.  It can meet high-performance logistics and cleaning workshops, save energy and improve air conditioning. High-speed automatic opening and closing, improve work efficiency and environmental quality. Fast stacking doors are suitable for larger doors and can withstand wind speeds above 10 degrees.


overhead sectional door-


-Our product highlights:

  • Fast open: all fast shutter doors are required to be opened quickly in order to ensure fast and efficient and energy saving.
  • Open the door to stop and reserve the bottom fast shutter doors mounted sensing means to ensure that the process of closing the cube. Here are a moving object or portion of a slight collision: the use of security.
  • Impact resistance: When fast shutter doors impact or collision, the automatic derailment systems and automatic reset device will play a role in the door after the impact that requires no special tools to restore the working state in a short time.
  • Reliability: fast shutterdoors must have electric and manual features to ensure that in the can manually.


high speed stacking door


---Features:


1) The drive

Uses the Taiwan SNMA branch electrical machinery, power source 220V, power 0.75kw, the load bearing shoulders S4 greatly.

2) The electrically controlled system

Uses the Danish Denver Si high performance promotion control box, in sets at the vector control pattern, the control precision is high; The high torque frequency changer (150%1HZ), PLC combines, has the high performance, the redundant reliability, the high stability, high characteristics ,high accurately localization. Simultaneously utilizes the frequency conversion control technology, has the soft start, slow stop function, guarantee door body revolution steady increase service life.

3) Operation speed

0.4-0.8m/s opening speed (adjustable). High frequency opening(1000-1500/day)

4) Safety device

Lower part the doorframe installs infrared photoelectricity protection switch one pair, under the gate body pauses when the human and the object block the photoelectricity, gate body not whereabouts.(South Korean Otto Nix)

5) The wind resistant effect

Curtain cloth engagement spot is loaded with the wind steel tube, the increase wind resistant effect.


stacking door


---Technical classfication:


Door body

High-strength  polyester fiber with soft epoxy resin on the surface

Degree of tear resistance

500N

Low temperature cracking temperature

-20 degree anti-corrosion, anti-ultrtaviolet; horizontal reinforcement rod strenthens the door body, wind pressure resistance 200N/m

Size range

4-10m wide and 4-10m high

Noise attenuation

≤20dBA

Power and control

230V/400V, single or three phase, 50Hz

Power

0.75KW-4.0KW; manual, button, drawstring, remote control, photoelectric switch, metal detection and radar, etc.

Running speed and time control

Switching speed: 0.6-1.5 m / sec, closing time can be adjusted: 5-30 seconds


---Product details:



1. Air duct

The joint of the curtain is equipped with steel pipe or aluminum alloy wind and windproof strip to increase the wind resistance effect.

air duct

2. Ring
It is painted with galvanized steel and is beautiful, durable and wear resistant. Using advanced welding technology, the material is durable, not easy to desold, broken


ring

3. Brush
The built-in brush on the guide rail can play the role of dustproof and sealed.

brush

4. Perspective window
The middle is provided with a horizontal PVC transparent window with a thickness of 1.2mm, making it safer for vehicles and vehicles to enter and exit.

perspective window


stacking door

stacking door


Our certificates:

--Advanced technology and workmanship


certificates

packing

Photobank 14

FAQ


1. What is the payment details?
Pre-production deposit, balance before shipment.
2. What is the delivery time?
For ordinary orders, it only takes about 7 days.
3. How about the door warranty?
We offer a 12 month warranty for all doors and accessories. When product quality occurs.
4. Do you offer OEM services?
Yes. OEM and ODM services are no problem for us.
5. What is the minimum order quantity?
We accept 1 set as a sample order.
