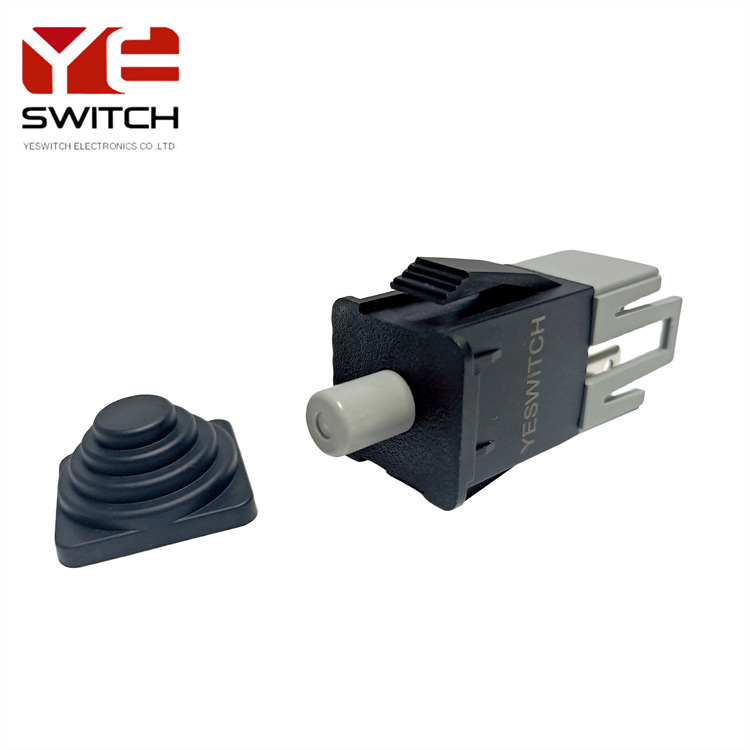

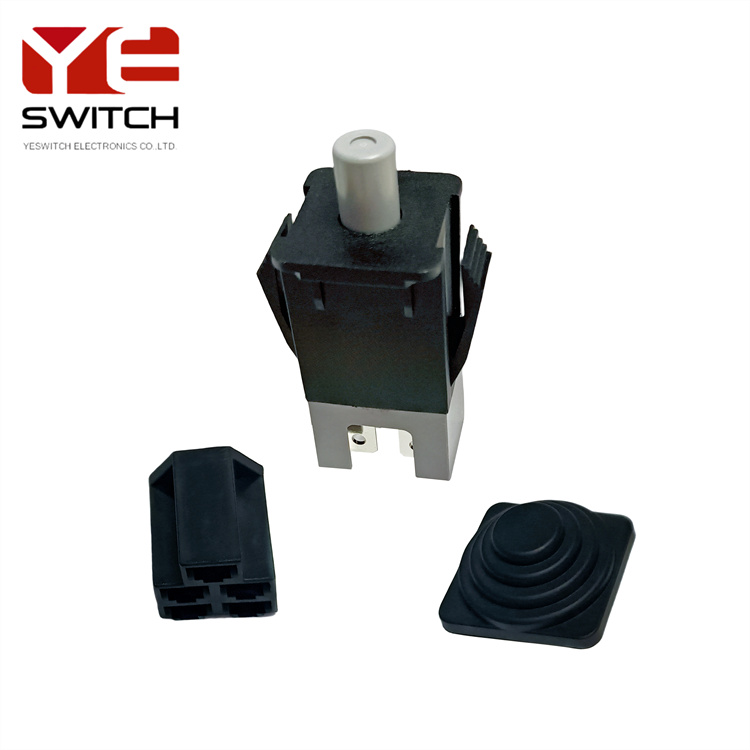

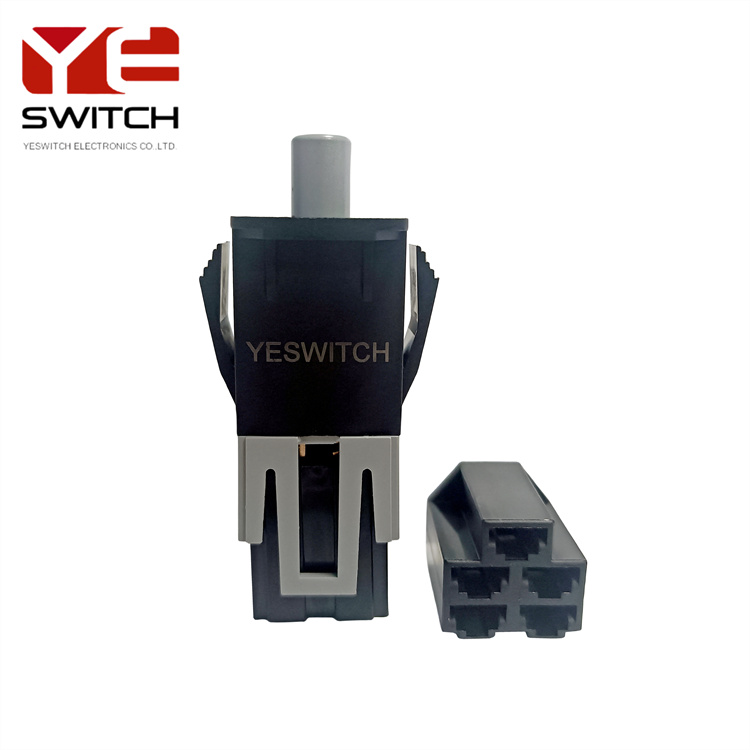

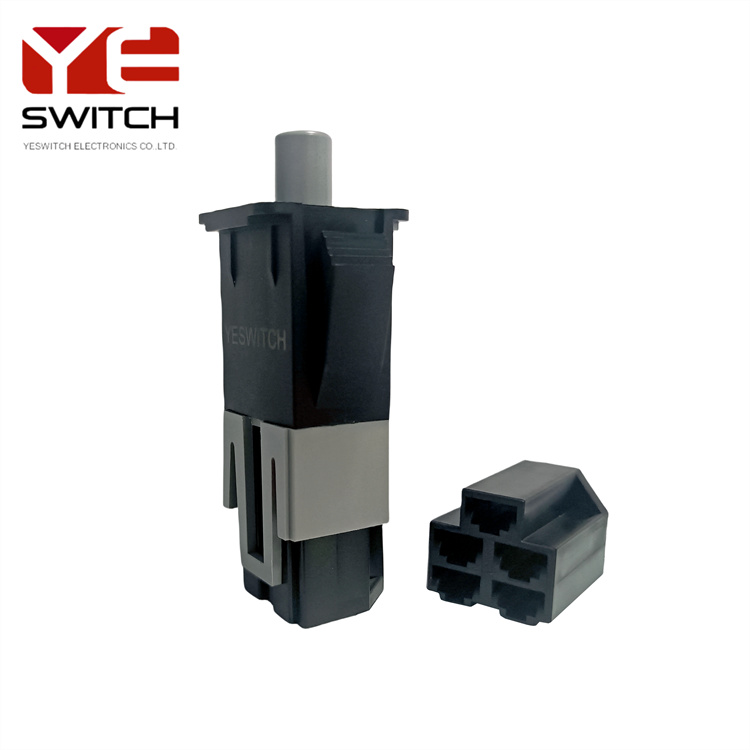

YESWITCH FD-01 Plunger Interlock Safety Switch for Simplicity Riding Lawn Mowers
The YESWITCH FD-01 Interlock Plunger Safety Switch is a plunger type with a snap mount, 2-position and 4 terminals. The Plunger Safety Switch has N.O. (normally open) and N.O. (normally open) circuit.The mower seat safety switch Provides a reliable and responsive momentary switch and Durable construction withstands harsh environments.Ensuring safety and convenience in operating lawn mower seats.
Replaces many OEM parts, including but not limited to the following:Cub Cadet,AYP, Ferris, Kees, MTD, Rotary, Snapper, Stens, and Troy-Bilt.
Features:
Double Pole Momentary Seat Switch
Snap Mount Safety Switch
DC Push Plunger Switch
Easy-to-use push button design
Durable construction for long-lasting performance
Embedded design for seamless integration

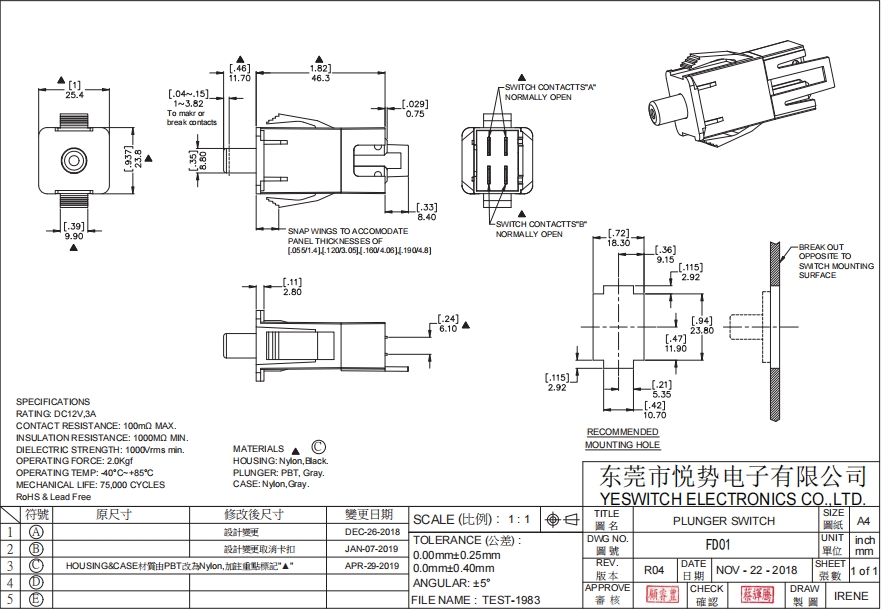

SPECIFICATIONS
RATING: DC12V,3A
CONTACT RESISTANCE: 100m MAX.
INSULATION RESISTANCE: 1000M MIN.
DIELECTRIC STRENGTH: 1000Vrms min.
OPERATING FORCE: 2.0Kgf
OPERATING TEMP: -40~+85 Degree
MECHANICAL LIFE: 75,000 CYCLES
MATERIALS
HOUSING: Nylon,Black.
PLUNGER: PBT, Gray.
CASE: Nylon,Gray
