Our alarm has multiple features, Minimum SPL is 90dB, Operating Temperature is -40~+85℃, our company mainly promote this type of products, besides alarm, we also produce Microphone, Receiver, Buzzer, etc. You are welcome to contact us.
|
Product Name |
BE39×15.5-100-P 6KB·Al |
|

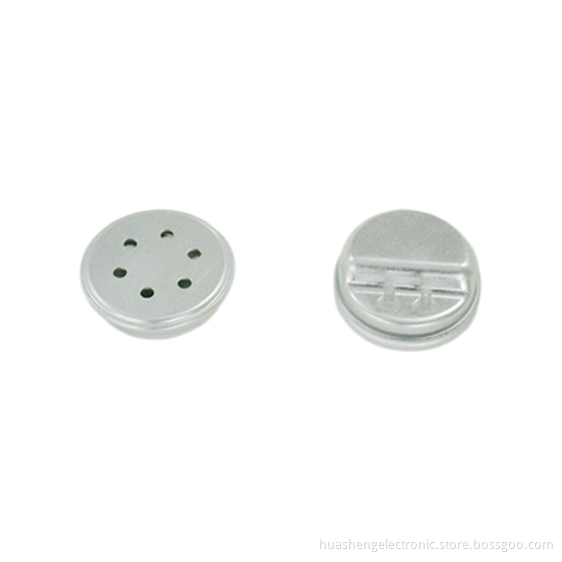

Product picture |
|
Characteristics
|
No. |
Item |
Specifications |
|
1 |
Rated Voltage |
24Vp-p |
|
2 |
Operating Voltage range |
1~30 Vp-p |
|
3 |
Coil Resistance |
22Ω±10% |
|
4 |
AC Impedance at 1kHz |
100Ω±25% |
|
5 |
Sensitivity at 1kHz 1000mV |
≥110dB |
|
6 |
Minimum SPL |
90dB （at 1m 24Vp-p 1KHz） |
|
7 |
Frequency range |
300~3400Hz |
|
8 |
Operating Temperature |
-40~+85℃ |
|
9 |
Storage Temperature |
-50~+95℃ |
|
10 |
Housing Material |
Aluminum |
|
11 |
Terminal Material |
Sn Plated Copper |
|
12 |
Weight |
28g |

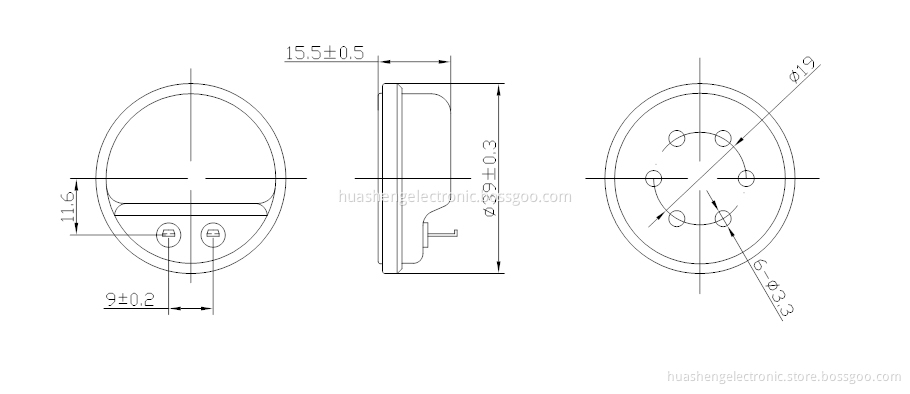

Drawing
