Product Introduction
H section steel is a new type of economic building steel. The section shape of H beam is economical and reasonable, and the mechanical ability is good. When rolling, each point on the section extends more evenly and the internal stress is small. Compared with ordinary I-beam, it has the advantages of large section modulus, light weight and metal saving, which can reduce the building structure by 30-40%. And because its legs are parallel inside and outside, the leg end is a right Angle, assembly and combination into components, can save welding, riveting work up to 25%. It is often used in large buildings (such as factories, high-rise buildings, etc.) that require large bearing capacity and good cross-section stability, as well as Bridges, ships, hoisting machinery, equipment foundation, bracket, foundation pile, etc.
H section steel is a kind of economic section steel with better mechanical properties, which is optimized and developed from I-section steel, especially the section with the same English letter "H". Its characteristics are as follows: Wide flange, high side stiffness.
◆ Strong bending ability, about 5%-10% than I-beam.
The two surfaces of the flange are parallel to each other, which makes the connection, processing and installation easy.
◆ Compared with welding I-beam, low cost, high precision, low residual stress, no need for expensive welding materials and weld detection, saving steel structure production cost about 30%.
◆ Under the same section load. Hot rolled H steel structure is 15%-20% lighter than traditional steel structure.
◆ Compared with concrete structure, the use area of hot-rolled H steel structure can be increased by 6%, and the self-weight of the structure can be reduced by 20% to 30%, thus reducing the internal force of the structure design.
H beam can be processed into T beam, honeycomb beam can be combined to form various section forms, greatly meet the needs of engineering design and production.
Product Specification
Product Name |
Hot Rolled H Beam / H Shaped Steel / H Channel Steel / H Section Steel |
Standard |
GB/T 11263, EN 10034, EN 10025, JIS G3101, ASTM A36, ASTM A572, ASTM A992 |
Shape |
H Channel |
Technique |
Hot Rolled/ Welded |
Materials |
Q235B, Q345B, S235JR, S235J0, C, S355JR, S355J0, S355J2, S355NL, SS400, ASTM A36, A572, A992, G300, G350 etc. |
Standard Size Type |
HW, HM, HN; HEA120-HEA450, HEB120-HEB400, HEM100-HEM450 |

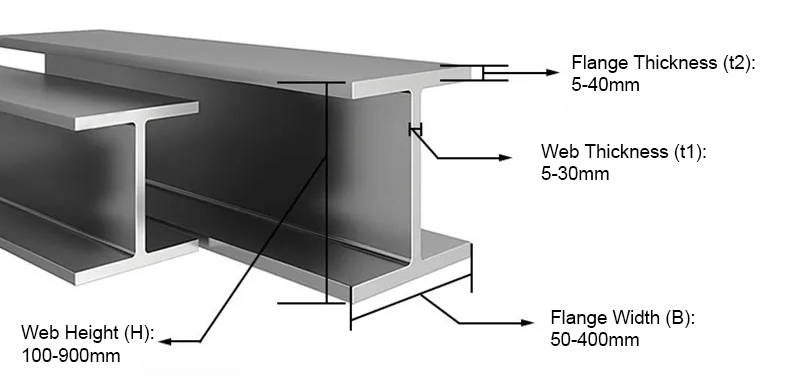

Web Height |
100--900mm, or as required |
Flange Width |
50-400mm, or as required |
Web Thickness |
5-30mm, or as required |
Flange Thickness |
5-40mm, or as required |
Length |
1m-12m, or other lengths required |
Surface Treatment |
Hot Dip Galvanized, Painting or Black. |
Custom services |
Cutting, Punching, Drilling, Bending, Welding |
Packing |
By bundles with steel strips or as customer request |
Delivery Time |
15 days after receive advance payment or L/C |
Application |
Mechanical&manufacture, Steel structure, Shipbuilding, Bridging, Automobile chassis. |
European Standard Size:
Type |
Depth of section (mm) |
Width of section (mm) |
Web Thickness (mm) |
Flange Thickness (mm) |
Mass per metre (Kg/m) |
HEA120 |
114 |
120 |
5 |
8 |
20.4 |
HEA140 |
133 |
140 |
5.5 |
8.5 |
25.3 |
HEA160 |
152 |
160 |
6 |
9 |
31.2 |
HEA180 |
171 |
180 |
6 |
9.5 |
36.4 |
HEA200 |
190 |
200 |
6.5 |
10 |
43.4 |
HEA220 |
210 |
220 |
7 |
11 |
51.8 |
HEA240 |
224 |
240 |
6.5 |
9 |
48.6 |
HEA260 |
250 |
260 |
7.5 |
12.5 |
69.9 |
HEA280 |
270 |
280 |
8 |
13 |
78.3 |
HEA300 |
290 |
300 |
8.5 |
14 |
90.5 |
HEA320 |
310 |
300 |
9 |
15.5 |
100 |
HEA340 |
330 |
300 |
9.5 |
16.5 |
107.6 |
HEA360 |
350 |
300 |
10 |
17.5 |
112 |
HEA400 |
390 |
300 |
11 |
19 |
125 |
HEA450 |
440 |
300 |
11.5 |
21 |
140 |
HEB120 |
120 |
120 |
6.5 |
11 |
27.4 |
HEB140 |
140 |
140 |
7 |
12 |
34.5 |
HEB160 |
160 |
160 |
8 |
13 |
43.7 |
HEB180 |
180 |
180 |
8.5 |
14 |
52.5 |
HEB200 |
200 |
200 |
9 |
15 |
62.8 |
HEB220 |
220 |
220 |
9.5 |
16 |
73.3 |
HEB240 |
240 |
240 |
10 |
17 |
85.3 |
HEB260 |
260 |
260 |
10 |
17.5 |
95.3 |
HEB280 |
280 |
280 |
10.5 |
18 |
105.6 |
HEB300 |
300 |
300 |
11 |
19 |
119.9 |
HEB320 |
320 |
300 |
11.5 |
20.5 |
130.2 |
HEB340 |
340 |
300 |
12 |
21.5 |
134 |
HEB360 |
360 |
300 |
12.5 |
22.5 |
142 |
HEB400 |
400 |
300 |
13.5 |
24 |
155 |
HEM100 |
120 |
106 |
12 |
20 |
42.8 |
HEM120 |
140 |
126 |
12.5 |
21 |
53.4 |
HEM140 |
160 |
146 |
13 |
22 |
64.8 |
HEM160 |
180 |
166 |
14 |
23 |
78.1 |
HEM180 |
200 |
186 |
14.5 |
24 |
91.1 |
HEM200 |
220 |
206 |
15 |
25 |
105.6 |
HEM220 |
240 |
226 |
15.5 |
26 |
119.9 |
HEM240 |
270 |
248 |
18 |
23 |
160.9 |
HEM260 |
290 |
268 |
18 |
32.5 |
176.3 |
HEM280 |
310 |
288 |
18.5 |
33 |
193.7 |
HEM300 |
340 |
310 |
21 |
39 |
244 |
HEM320 |
359 |
309 |
21 |
40 |
251.1 |
HEM340 |
377 |
309 |
21 |
40 |
248 |
HEM360 |
395 |
308 |
21 |
40 |
250 |
HEM400 |
432 |
307 |
21 |
40 |
256 |
HEM450 |
478 |
307 |
12 |
40 |
263 |

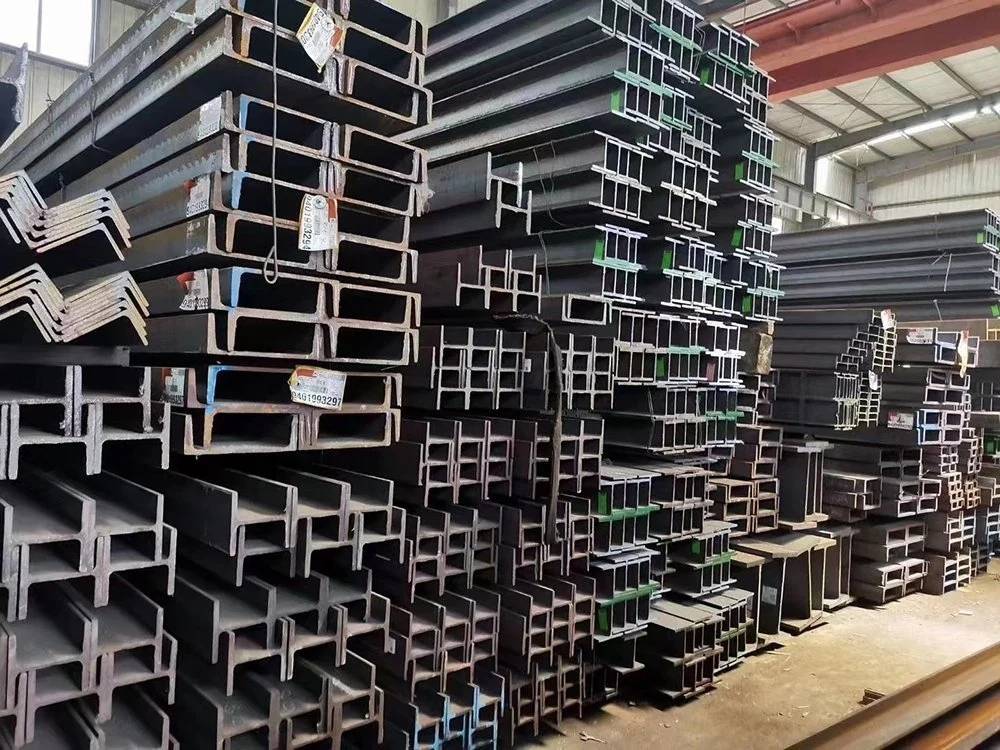

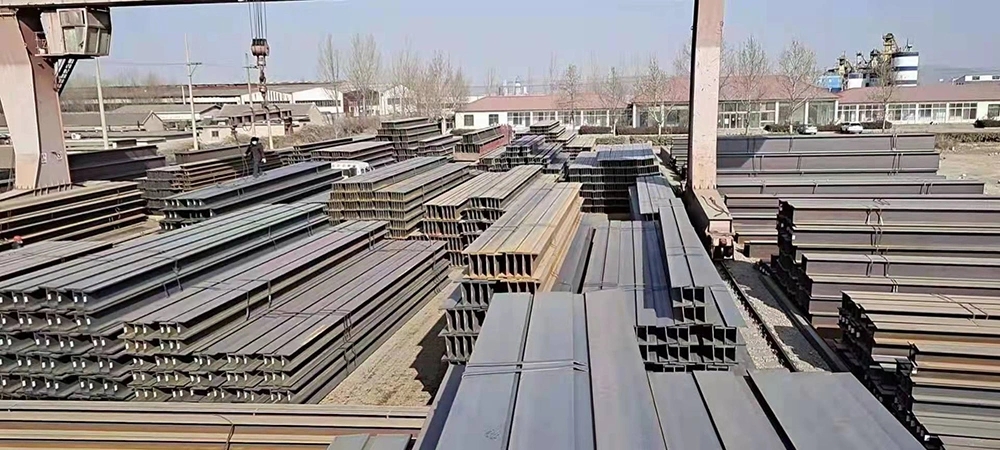

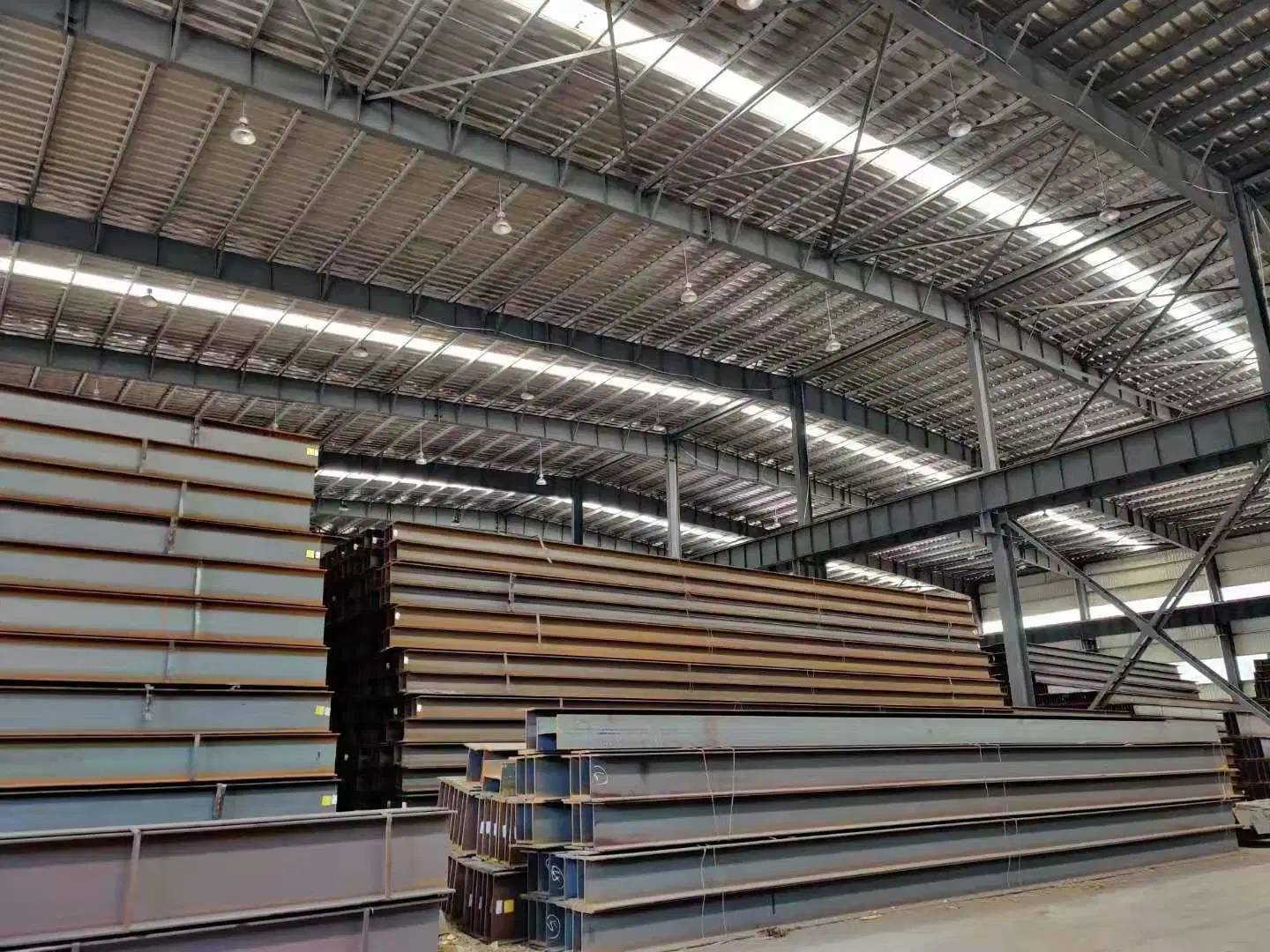

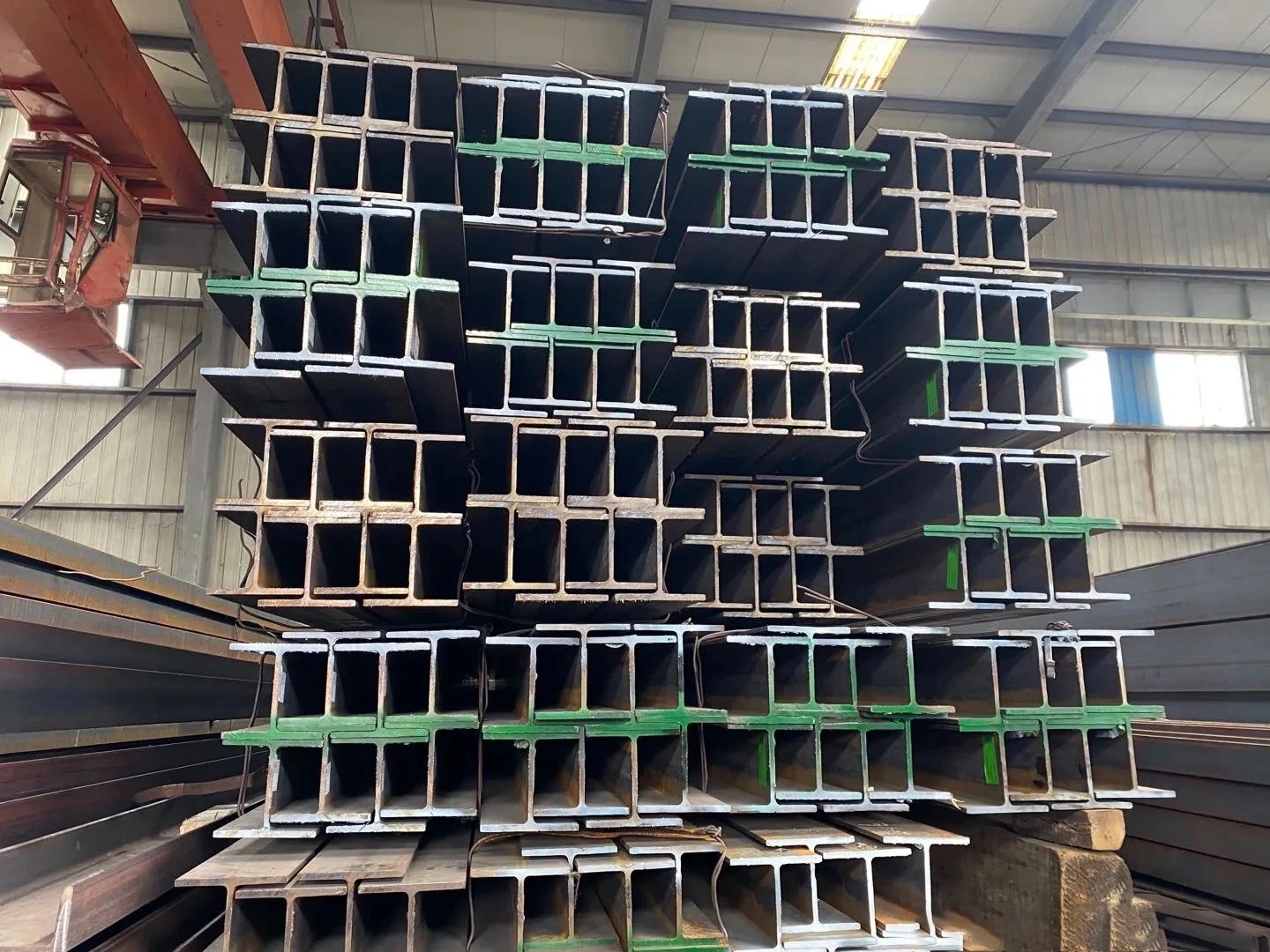

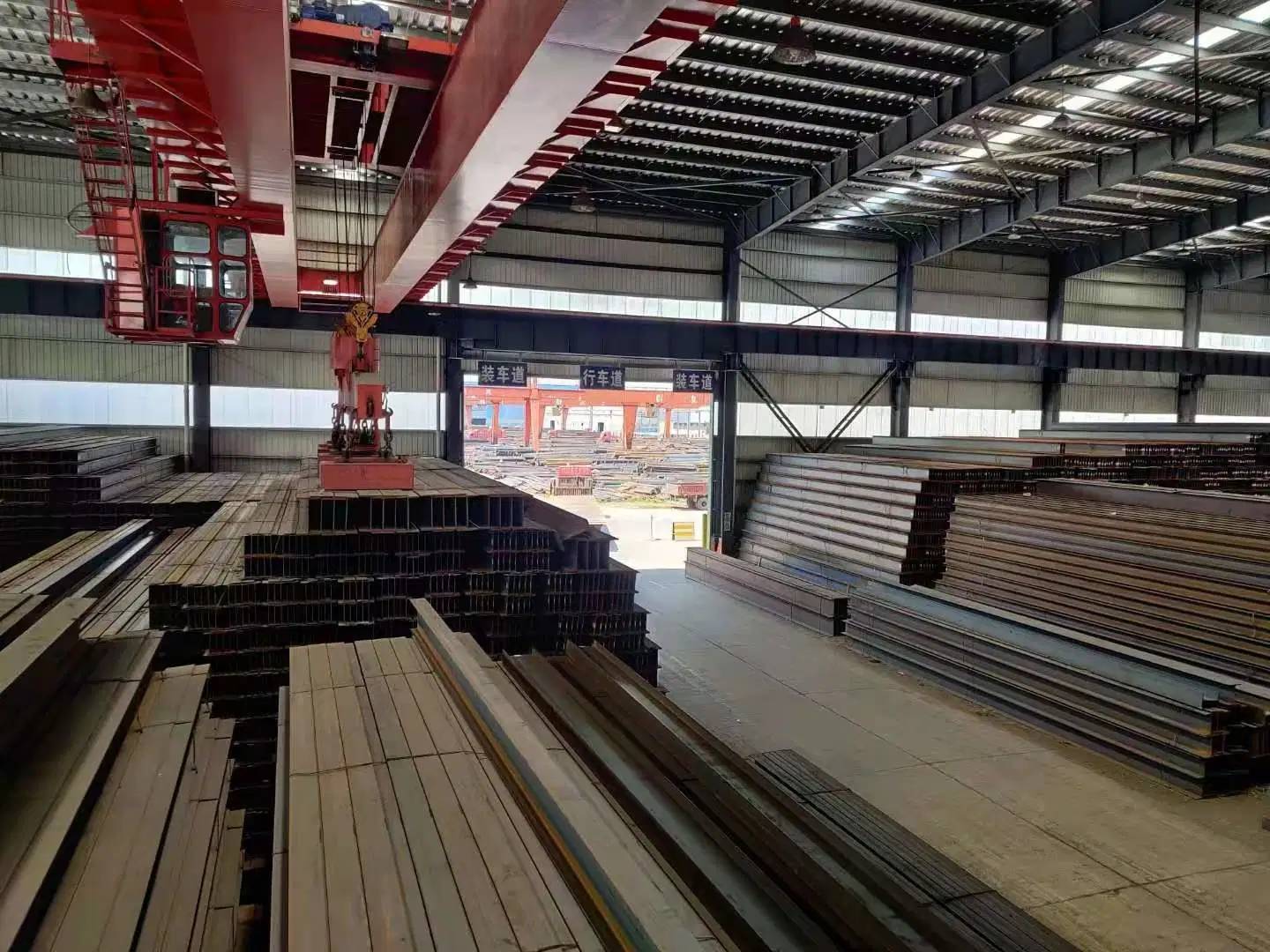

Product Display
We can produce different sizes, thicknesses, widths and materials according to your requirements

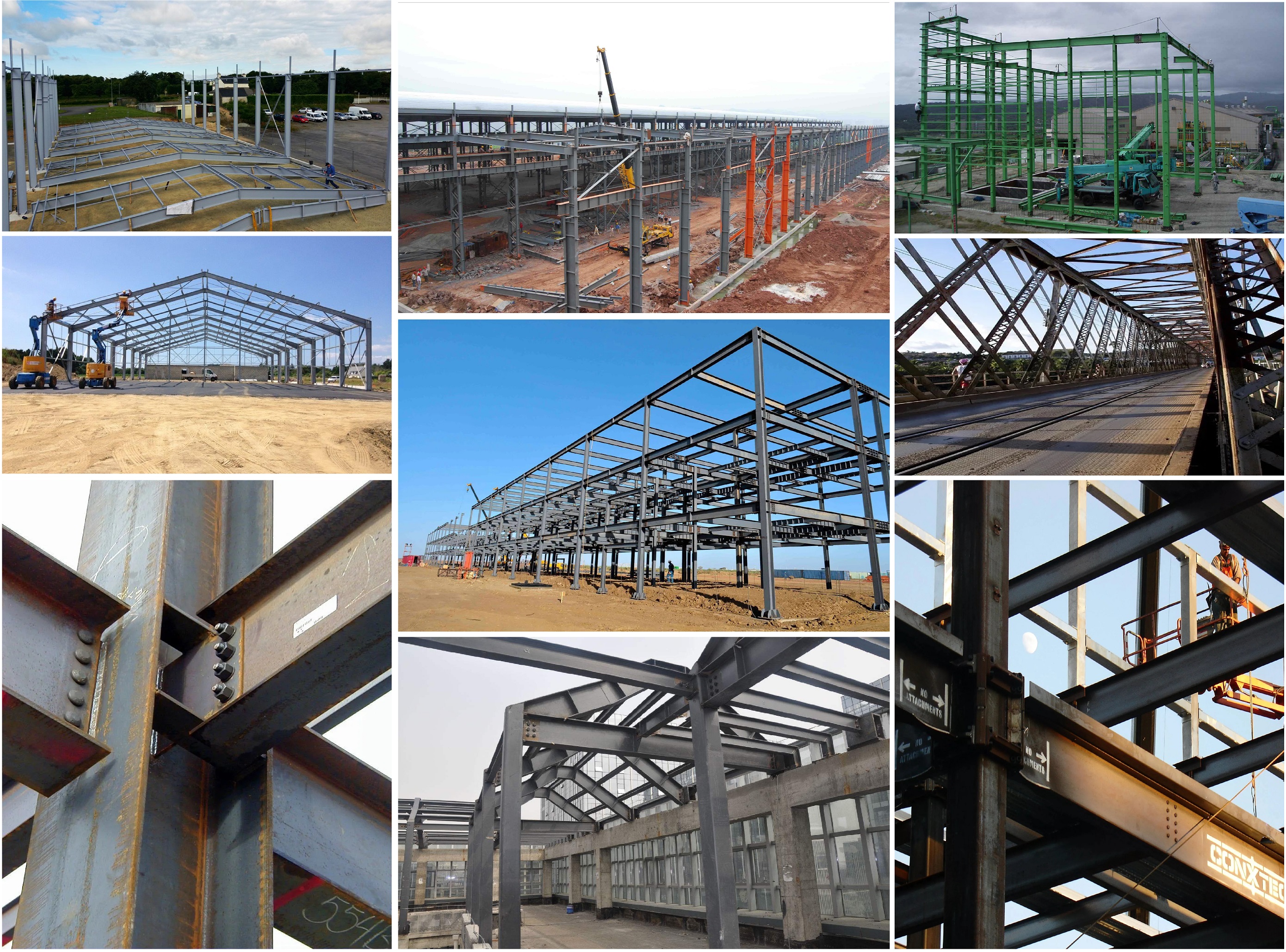

Application Scope
Large Span Custom H beam steel structure warehouse buildings for sale is a new type of steel structure buildings. It is easy assembly, quick installation,long life,recycle using factors, the steel structure buildings is replacing the traditional concrete buildings or brick buildings.
