Product details

XJ900 Truck-mounted Workover Rig

Oil well workover is a high-tech, high-risk work. The conventional oilfield workover rig has problems such complicated operating procedures and high labor intensity. Shengji, in cooperation with the Shengli Drilling Corporation, have designed an oilfield workover rig automation system.

The system includes double monkey board pipes ranging robot, bolted beam system, machine hand, power catwalk, power elevator, hydraulic chuck, power control and monitoring system. The system uses one-button automated operation. The operation only needs one driller, one wellhead operator and one patrol personnel.

The oilfield automatic workover rig has a high degree of automation adopting modular integration and advanced robot closed-loop control technology. It functions as self-diagnosis, leakage and short circuit protection and fault alarming, etc. It has remote monitoring capability.



The automatic workover rig greatly increases the automation of workover operations, reduces the number of operators, decreases workers' labor intensity. The technology is advanced, safe and reliable.

Large Vehicle-Mounted Oilfield Workover Drill Truck-Mounted Drilling Rig

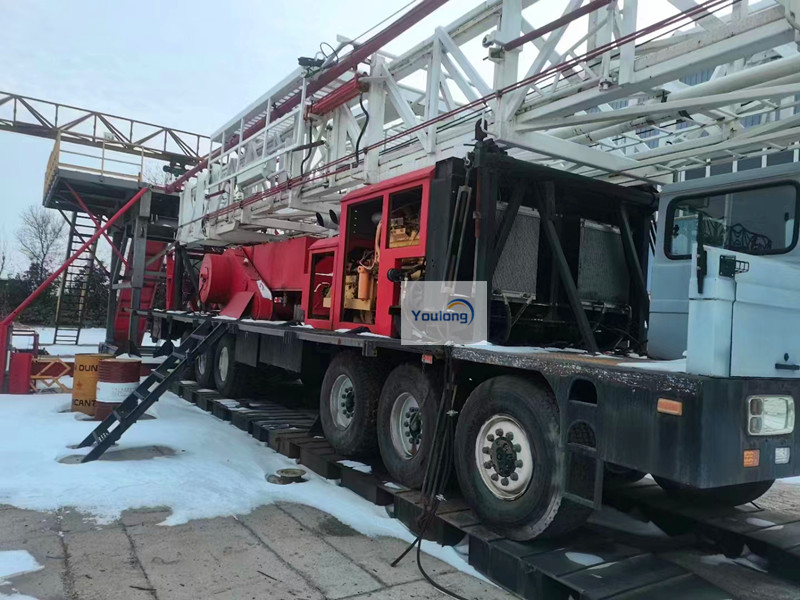

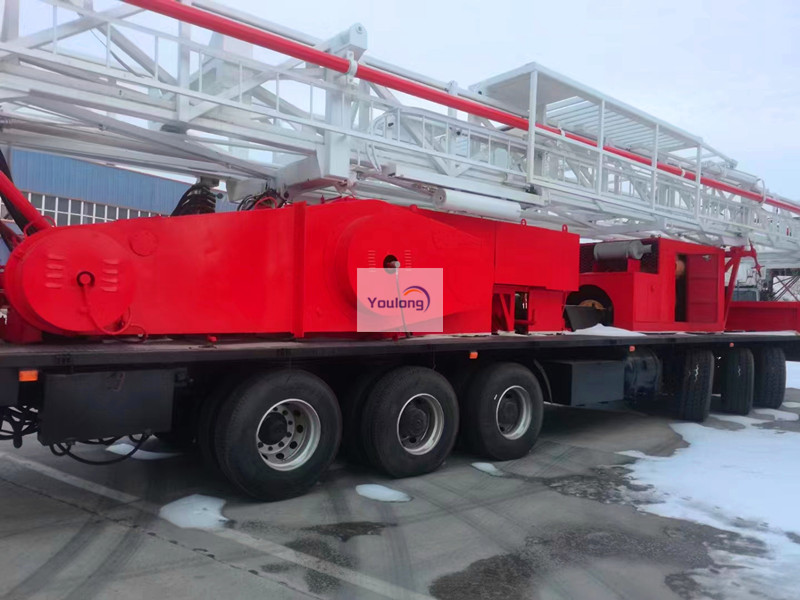

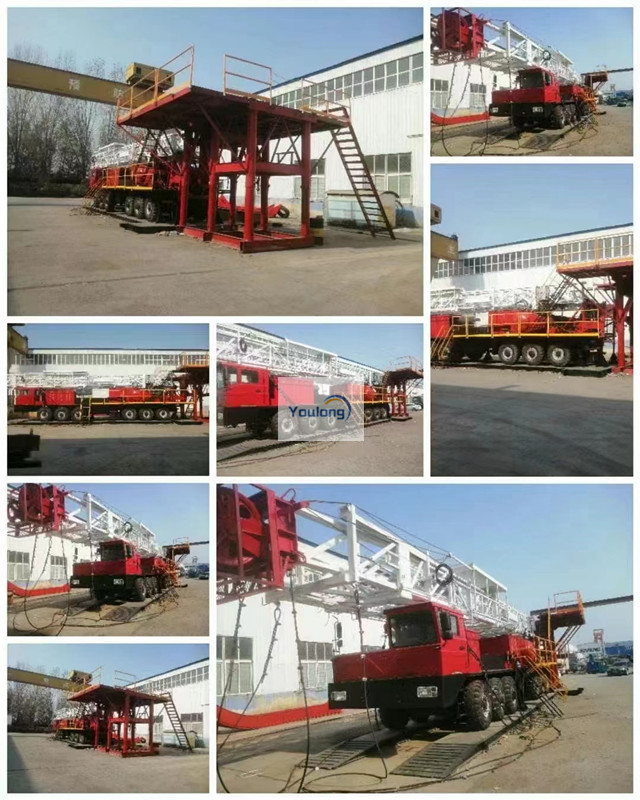

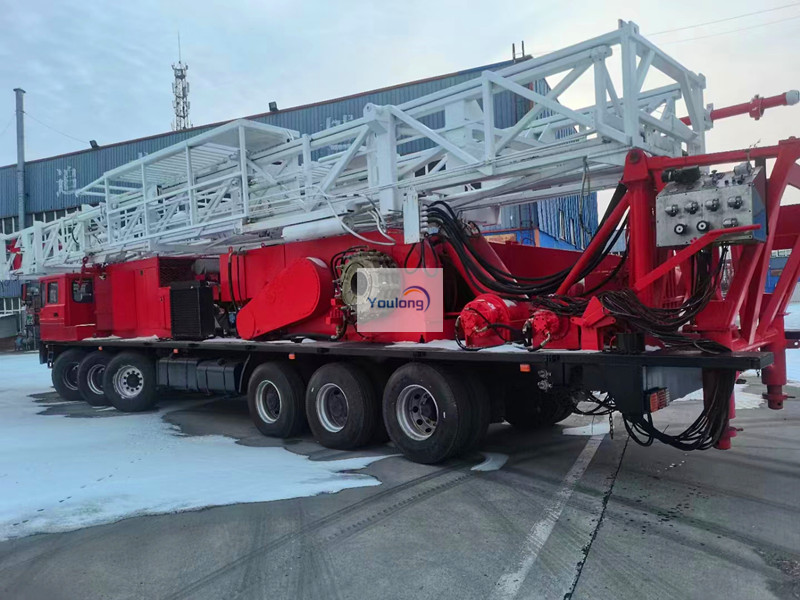

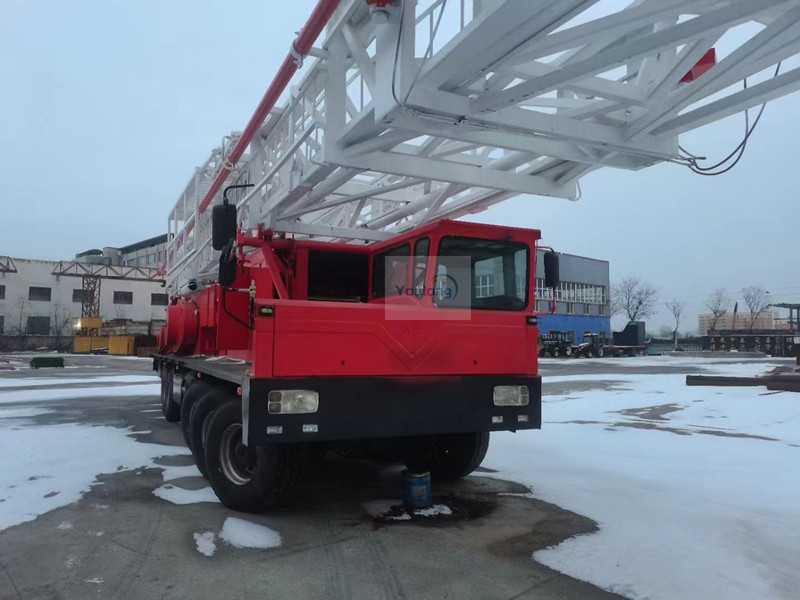

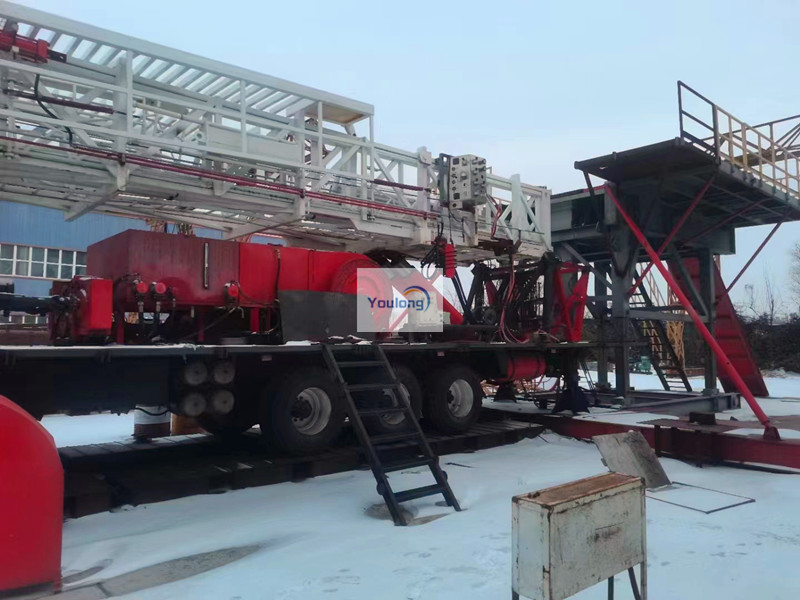

XJ900 workover rig is truck-mounted drilling equipment. The chassis adopts home-made 6×6, 8×8 special chassis or 10×8 special chassis. And based on which it is equipped with high speed diesel motor, hydraulic mechanical drive, angle gear box, drawworks assembly, two-section telescoping mast, traveling system, hydraulic and pneumatic system, etc.

The workover rig is mainly used for medium and small operation in 4000m oil and water well with 73mm(2.7/8″) tubing.

Also can do major workover operation with drilling rig and related components.

Characteristics and features

▲The chassis adopts home-made special workover rig chassis, easy to ride and operate and good cross country performance.

▲Adopts 29m or 32m two-section telescoping mast, monkey board, has three kinds of adjusting height (17.6m, 20.2m, 21.2m), can install simple rig.

▲The main drum of drawworks adopts integral LIBUS groove to line regularly.

The auxiliary brake adopts S 122 hydraulic brake and can equipped with pneumatic water cooling disc brake.

▲The control system of electric, hydraulic and pneumatic adopt centralized control, easy to operate.

▲The main parts and components adopt imported original famous brand products to ensure product reliability.

Specifications and parameters

 Product Model

XJ900(6×6 chassis)

XJ900(8×8 chassis)

XJ900(10×8 chassis)

Workover depth

4000

4000

4000

(2 7 / 8 "thicken DP)                    (m)







 Overhaul workover depth (2 7/8″ DP)   (m)

3200

3200

3200

 Nominal hook load                      (kN)

650

600

600

 The max. Loading                      (kN)

900

900

900

 The height of mast                       (m)

23.5

29

32

 The dia. Of rope/effective number of rope                                           (mm/n)

Φ26/8

Φ26/6

Φ26/6

Maximum pulling speed of hook       (m/s)

1.1

1.2

1.2

The dimension of moving state
(including mast)                  (m)

13910×2705×4320

17140×3110×4260

18720×3110×4490

Weight of the whole set              (kg)

31490

39970

49500
