Use and Characteristics:

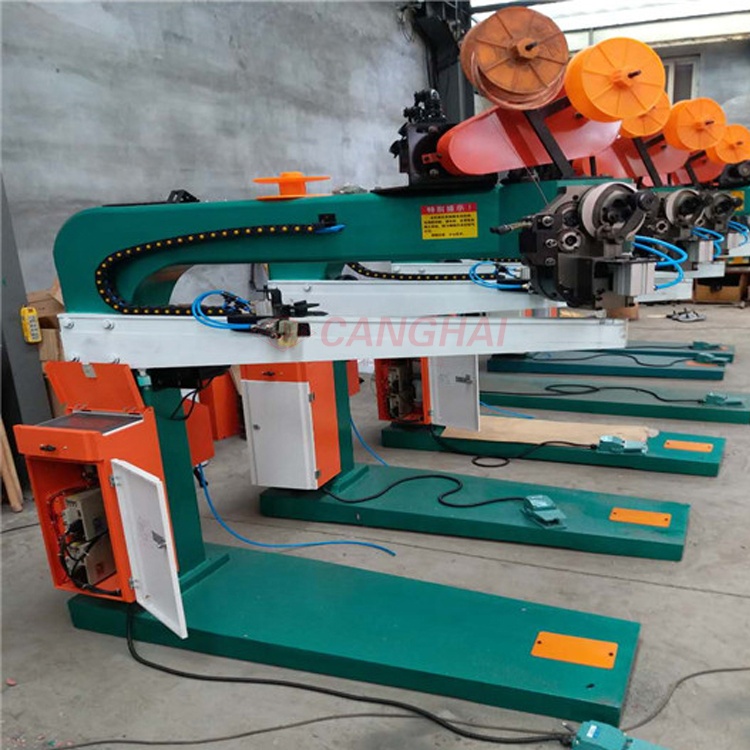

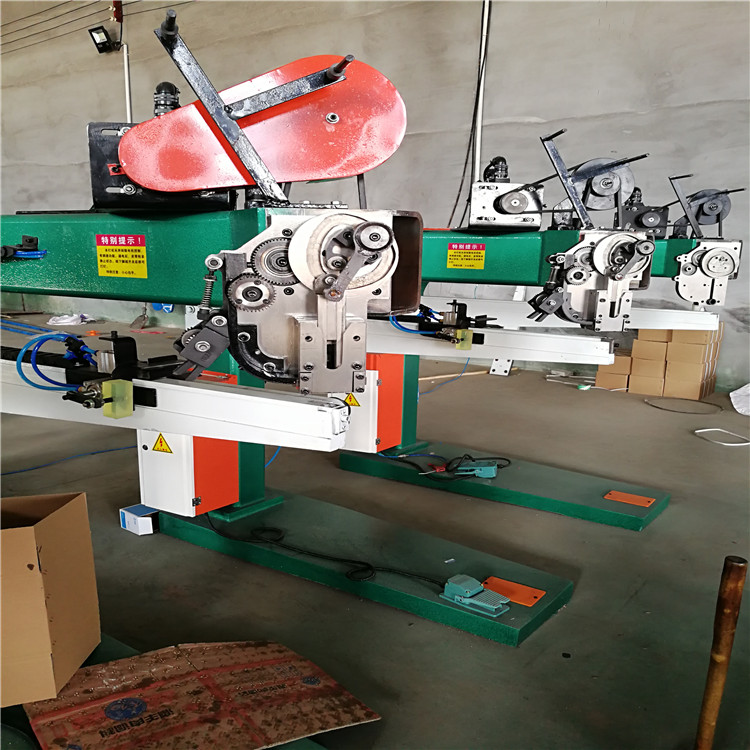

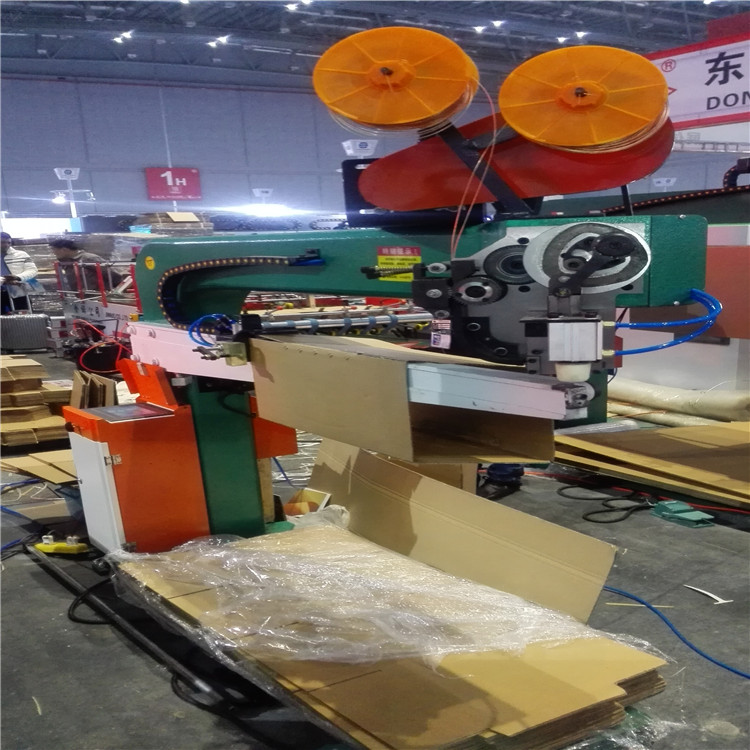

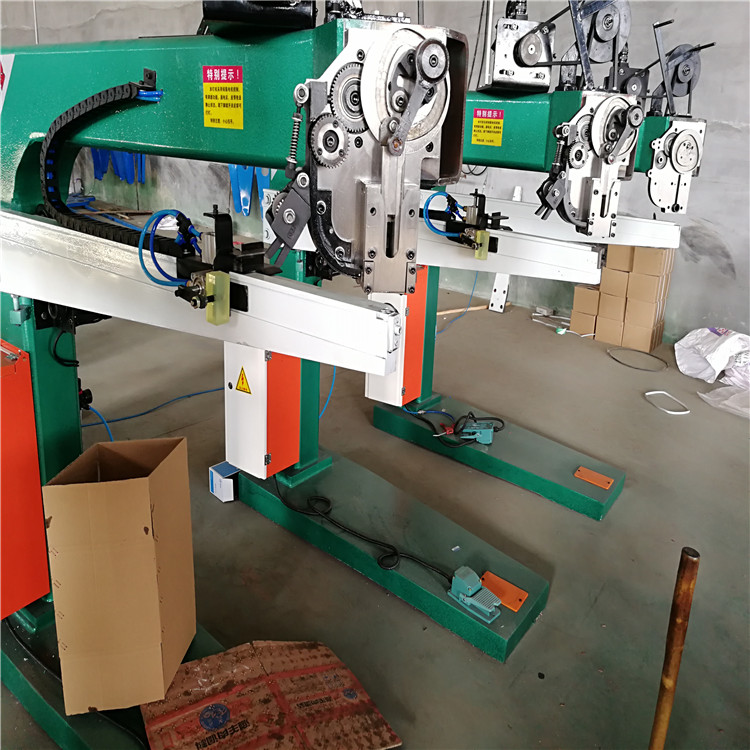

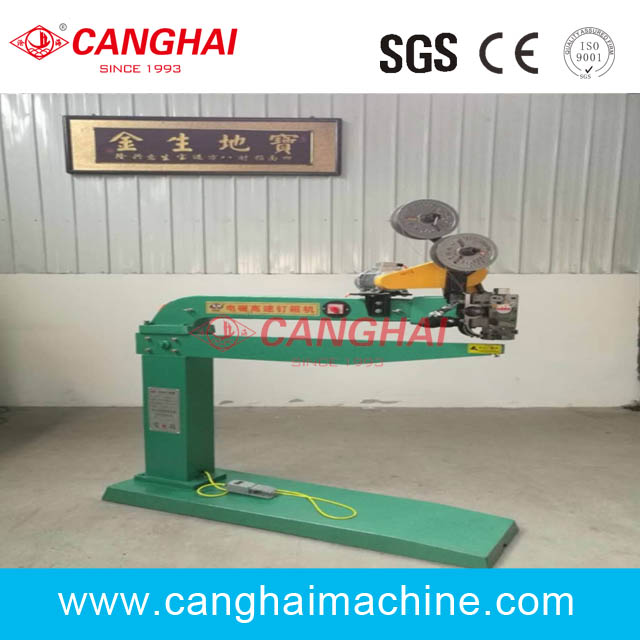

The head of the machine consisit of electromagnetic clutch and electromagnetic brake, it is characterized with quick repercussion and low noise. All of the parts in this machine have functional interchangeability. Besides, it has many advantages such as novel appearance, fast action, smooth operation, low noise, pitch tight and service life long. Especially the main components are made precision machining by imports of alloy steel. Under normal circumstances, the life of the machine is 3-5 times longer than the common carton stapler. Over a long-term production and use, it has won great acclaim from the consumers, so it is the advanced equipment for carton packaging production.
Main Configuration:
|
Name |
Brand/Origin |
|
Servo Motor |
Delta, Taiwan |
|
PLC |
Delta, Taiwan |
|
Touch Screen |
Delta, Taiwan |
|
Paddle |
Taiwan |
|
Mould and knife(Tungsten material) |
SUMITOMO, Japan |
|
Cutting head |
SKH-9 Steel, Japan |
|
Punch |
SKD11 alloy, Japan |
|
Driving gear, axis |
Taiwan |
|
Bearings |
NSK and soon. |
|
Model |
Staple Speed (s/mim) |
cardboad Thickness |
Arm Length |
Flat wire Size: |
Operating panel height (mm) |
Stitching way |
Nail foot width |
Dimension |
Weight |
|
DXJ-900 |
250 |
3/5/7 ply |
900 |
16#17#18# |
1075 |
45 ° double helical nail |
13 |
1300X600X1600 |
350 |
|
DXJ-1200 |
250 |
3/5/7 ply |
1200 |
16#17#18# |
1075 |
45 ° double helical nail |
13 |
1600X600X1700 |
400 |
|
DXJ-1400 |
250 |
3/5/7 ply |
1400 |
16#17#18# |
1075 |
45 ° double helical nail |
13 |
1800X600X1700 |
450 |
|
DXJ-1600 |
250 |
3/5/7 ply |
1600 |
16#17#18# |
1075 |
45 ° double helical nail |
13 |
2050X600X1700 |
600 |
|
DXJ-1800 |
250 |
3/5/7 ply |
1800 |
16#17#18# |
1075 |
45 ° double helical nail |
13 |
2250X600X1700 |
700 |
If you are interested in the product, contact 2bvideo.com for more information for more information
The information of 2bvideo.com limited shown above is provided by the user or collected on the network. Video 2B does not guarantee the authenticity,accuracy and legitimacy of 2bvideo.com limited information. Video 2B does not involve legal relationships and disputes between users arising from transactions other than secured transactions on this website. Disputes shall be settled by you through negotiation. If you are the person in charge or relevant employee of this enterprise, if you find that the enterprise information is incorrect or want to manage thiscompany, please contact us jacklee1558@gmail.com, after you claim the enterprise, you can obtain management permission, publish supplyand demand information, bring consulting orders, and remove page advertisements.
Main Product:
Carton box making machinery,
carton box folder gluer machine,
Flat bed die cutting machine,
Flexo printing slotting die cutting machine ,
Stitching machine,
corrugated cardboard production line
