EVRA 32 EN-JS1025 042H1140 042H1141 Ammonia Solenoid Valve
Product Features:
EVRA is a direct or servo operated solenoid valve for liquid, suction and hot gas lines with ammonia or fluorinated refrigerants. EVRA valves are supplied complete or as separate components, i.e. valve body, coil and flanges can be ordered separately.
EVRA 25, 32 and 40 are servo operated piston valves.The valves are closed with currentless coil.The servo piston with main valve plate closes against the valve seat by means of the differential pressure between inlet and outlet side of the valve, the force of the compression spring and possibly the piston weight. When current to the coil is switched on, the pilot orifice opens. This relieves the pressure on the piston spring side of the valve. The differential pressure will then open the valve. The minimum differential pressure needed for full opening of the valves is 0.2 bar.

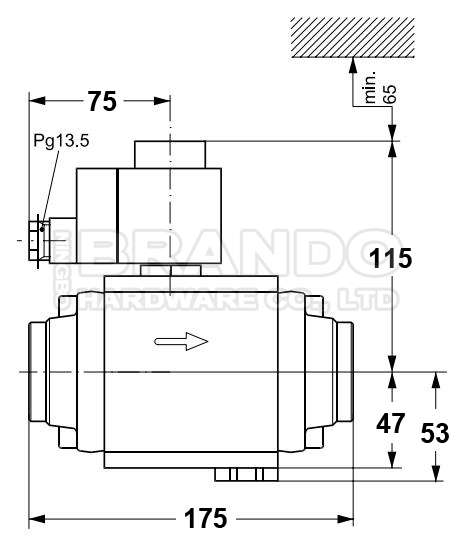

Main Dimension of EVRA 32 Ammonia Solenoid Valve:
Ordering Code of Ammonia Solenoid Valves:
Separate valve bodies with manual operation
Type
Connection
Required Coil Type
Code No
EVRA 10
Flange
AC, DC
032F6210
EVRAT 10
AC, DC
032F6214
EVRA 15
AC, DC
032F6215
EVRAT 15
AC, DC
032F6216
EVRA 20
AC
032F6220
EVRA 20
AC, DC
032F6221
EVRAT 20
AC, DC
032F6219
EVRA 25
AC, DC
032F6225
Separate valve bodies without manual operation:
|
Type
|
Connection
|
Required coil type
|
Code No
|
|
EVRA 3
|
Flange
|
AC, DC
|
032F3050
|
|
EVRA 10
|
AC, DC
|
032F6211
|
|
|
EVRA 25
|
AC, DC
|
032F6226
|
Separate valve bodies with butt weld connections:
|
Type
|
Butt weld connection
|
Code No
|
|
|
DIN
|
ANSI
|
||
|
Valves with manual operation
|
|||
|
EVRA 32
|
1 1/4 inch
|
|
042H1126
|
|
1 1/2 inch
|
|
042H1131
|
|
|
|
1 1/4 inch
|
042H1140
|
|
|
|
1 1/2 inch
|
042H1141
|
|
|
EVRA 40
|
1 1/2 inch
|
|
042H1128
|
|
2 inch
|
|
042H1132
|
|
|
|
1 1/2 inch
|
042H1142
|
|
|
|
2 inch
|
042H1143
|
|
