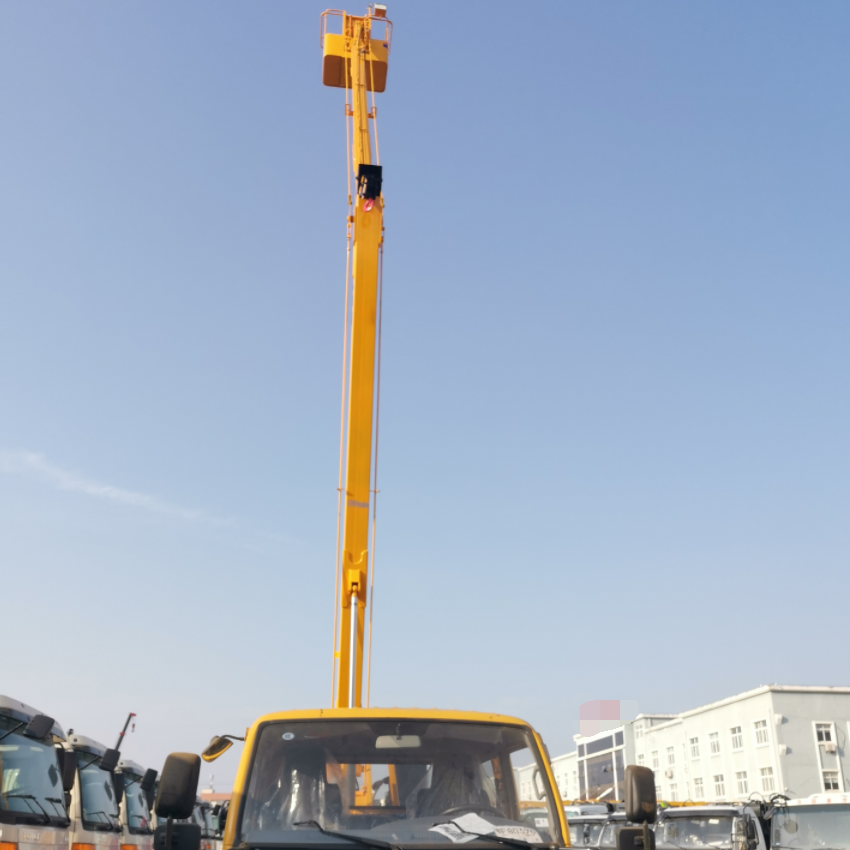

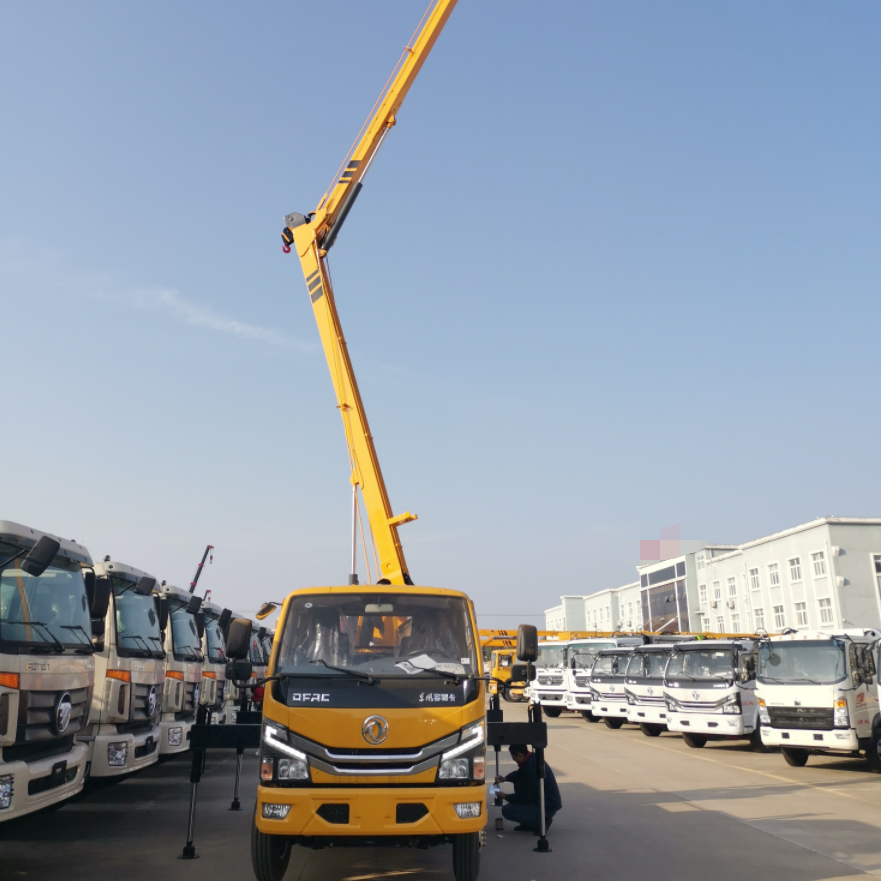

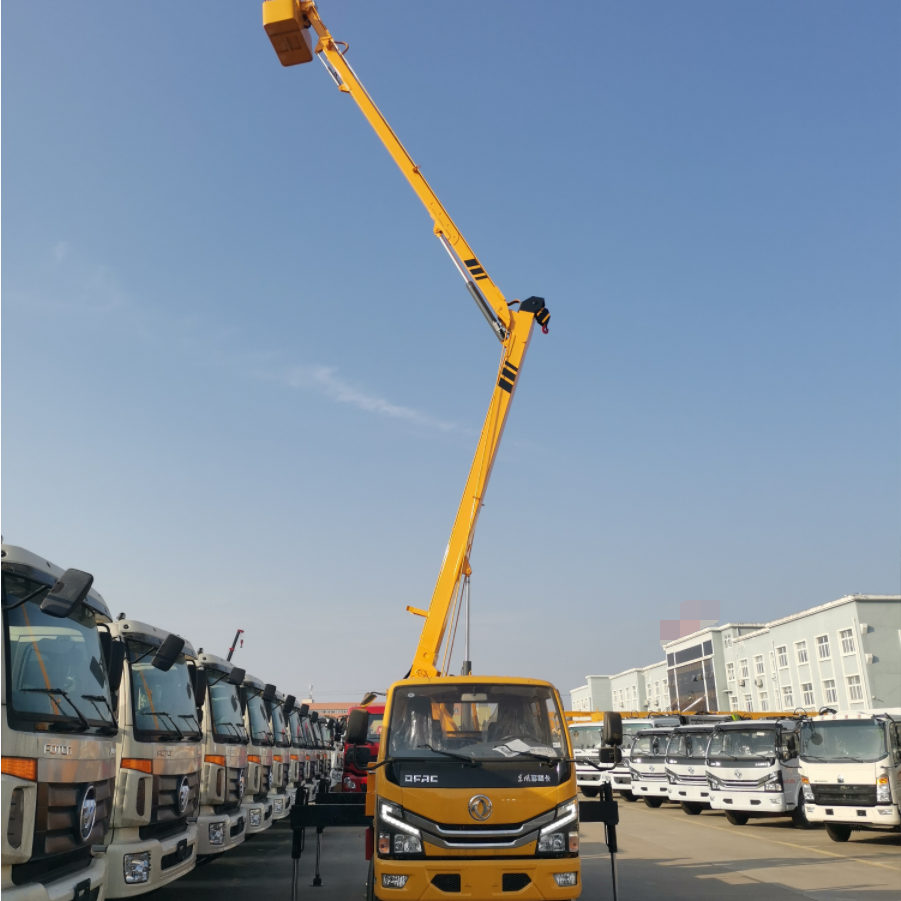

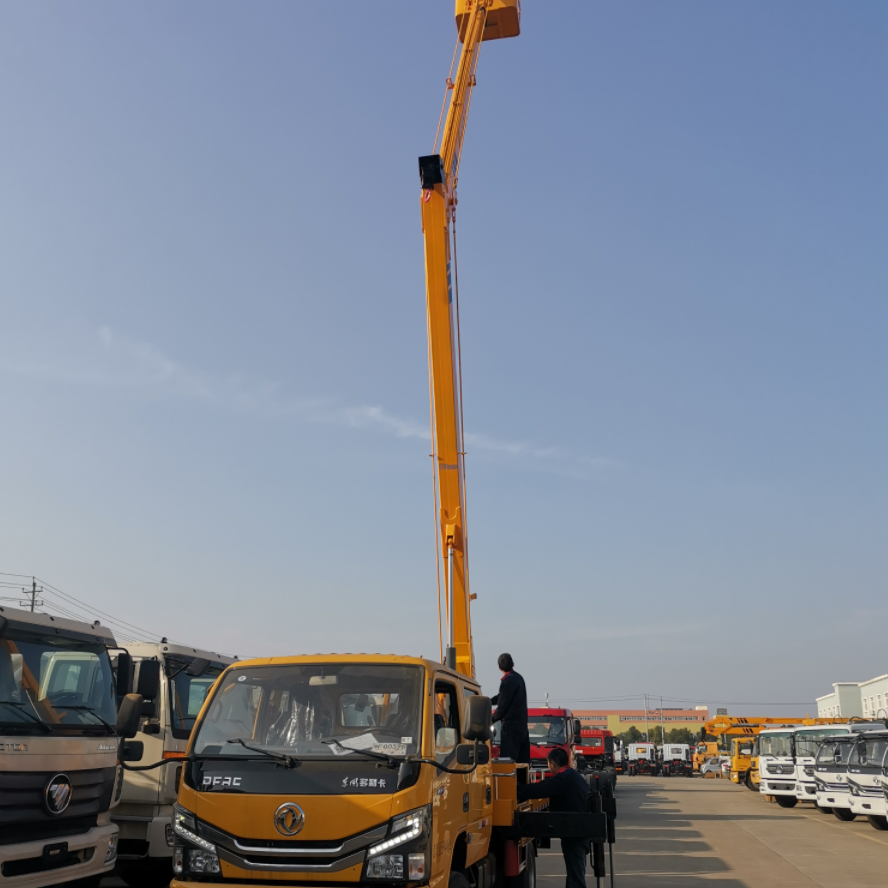

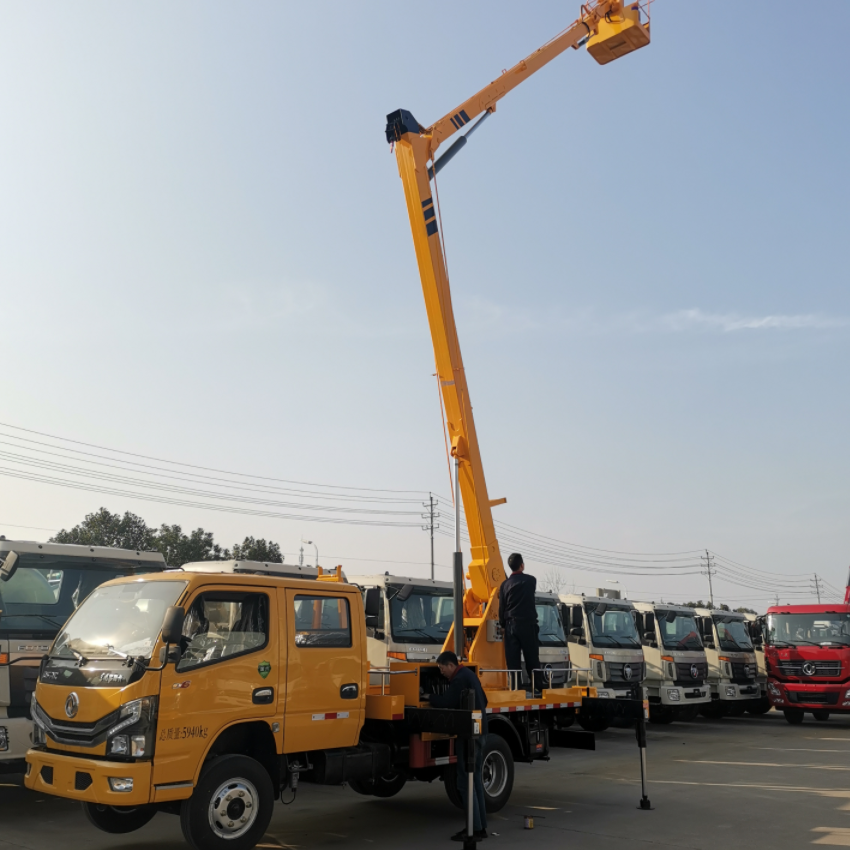

The main characteristics of this curved arm 16 meter high-altitude work vehicle are as follows:
1. The arm frame is made of high-strength steel plate HQ60/5.0, which is bent and welded into shape, with high stress and strength;
2. The H-shaped leg has good stability and can be operated simultaneously or independently. It is flexible to operate and can adapt to various working conditions;
3. The turntable rotates 360 ° in both directions and adopts a gear driven reduction mechanism; (With self-lubricating and self-locking functions)
4. The boarding operation adopts an integrated electronic control valve block mode, with a beautiful layout, smooth operation, and convenient maintenance;
5. Get off and get on interlocking, safe and reliable operation;
6. The boarding operation is achieved through a throttle valve to achieve infinite speed regulation;
7. The hanging basket adopts an external pull rod mechanical leveling, which is more stable and reliable;
8. The turntable and hanging basket are equipped with start and stop switches, which are easy to operate and save fuel;
1. Usage of aerial work vehicles
By folding, varying the amplitude, and rotating the work arm, workers and tools are transported to designated high-altitude work positions for high-altitude operations.
The recommended environmental conditions for the use of this Dongfeng dual row cab 16 meter high altitude work vehicle are as follows:
1) Altitude: ≤ 1000 meters
2) Environmental temperature: -5 ℃~+40 ℃
3) Relative humidity: ≤ 95% (25 ℃)
4) Seismic resistance: Ground horizontal acceleration of 0.3g
Ground vertical acceleration 0.15g
Simultaneously acting for three sine waves
Safety factor 1.67
5) Maximum daily temperature difference: 15 ℃
6) Sunlight intensity (at wind speed of 0.5m/s): 0.1W/cm2
7) Maximum wind speed: ≤ 10.7m/s1)
3. The detailed parameters of this Dongfeng Dolika double row 16 meter aerial work platform are as follows:
Chassis model length x width x height (mm) Rear suspension total mass (Kg) Wheelbase engine emissions
7650 × 2000 × 3050 2107 5940 3308 National VI
Upper basic configuration arm frame arm frame form three section folding arm
Material HQ60/5mm
Arm cross section quadrilateral
Fluctuation angle 0 ° -70 ° (relative to the horizontal plane)
The maximum working height of the working condition is 16m
At the maximum working height, the working range is 3m
Maximum homework amplitude of 6m
At the maximum operating range, the operating height is 7.3m
Double directional 360 ° continuous rotation
The maximum lifting weight of the lifting arm is 1000Kg
Telescopic boom without telescoping
Maximum lifting height of 6.4m
Maximum lifting range 5.5m
Lifting mechanism IQKN1B6Y; Single rope tension 800 Kg
Steel wire rope (40m) Φ eight
Hook 1T
Support legs, front and rear H-shaped
Support leg material profile Q345B/5mm
Leg span longitudinal (mm): 3140, transverse (mm): 3600
The four legs of the hydraulic lock are equipped with bidirectional hydraulic locks
Yellow flashing lights on the front and rear legs; Four
The carriage is made of high-quality carbon steel and profiles, covered with 3mm anti slip patterned steel plates
Toolbox 1200 * 400 * 400; Mold stamped door with stainless steel door lock
Fence Φ 20 stainless steel pipes
The left side of the driver's cab is equipped with up and down steps
High quality carbon steel cold-formed profiles for side and rear protection; High strength
The wheel cover mold is formed, beautiful, and has high strength
No hand washing water tank
Welding composition of low alloy steel plate for rotary table arm
Rotary bearing single row four point contact ball with external teeth, QWD710.20A
Gearbox transmission type, IHKN3B6Y
Motor BMT-310
Rated load of suspended basket ≤ 200Kg
Dimensions (length x width x height) (mm): 1080X620X1150
Leveling form: external pull rod mechanical leveling
A pair of safety belts
Leveling device mechanical leveling, with external pull rod
Hydraulic system hydraulic oil tank 65L; With liquid level gauge
Gear pump quantitative pump, flow rate 25ml/r
Work pressure with pressure gauge; 16MPa
Hydraulic valve group integrated with solenoid valve group
The oil cylinder is equipped with a bidirectional balance valve or hydraulic lock for locking, ensuring safety
Manual operation of the operating system legs, each leg can be individually adjustable, and the boarding and alighting are interlocked
Combination of manual and electric operation modes
Electric dual position operation of boom action turntable and hanging basket
Dual position operation of engine start, stop turntable and suspension basket
Engine throttle electronic throttle
Renowned brand paint for paint; Smooth color and beautiful lines;
The identification and signage are clear, eye-catching, and permanently non fading
