Nominal capacity
|
|
100Ah
|
280Ah
|
|
Standard Voltage
|
|
3.2V
|
3.2V
|
|
Internal resistance
|
|
≤0.5mΩ
|
≤0.25mΩ
|
|
Standard charge and discharge
|
charge/discharge current
|
0.5C/0.5C
|
0.5C/0.5C
|
|
|
Charge/discharge cut-off voltage
|
3.65V/2.5V
|
3.65V/2.5V
|
|
Maximum charge/discharge current
|
Continuous charge/discharge
|
1C/1C
|
1C/1C
|
|
|
Pulse charge/discharge (30s)
|
2C/2C
|
2C/2C
|
|
Recommended SOC usage window
|
|
10%-90%
|
10%-90%
|
|
Charging working temperature
|
|
0℃-55℃
|
0℃-55℃
|
|
Discharge working temperature
|
|
-20℃-55℃
|
-20℃-55℃
|
|
storage temperature
|
Short term (within 1 month)
|
-20℃-55℃
|
-20℃-55℃
|
|
|
Long term (within 1 year)
|
0℃-35℃
|
0℃-35℃
|
|
Storage humidity
|
|
<95%
|
<90%
|
|
Monthly self-discharge rate
|
|
≤3%/ Month
|
≤3%/ Month
|
|
size |
width
|
160±0.5mm
|
173.7±0.5mm
|
|
|
Thickness
|
49.9±0.5mm
|
72±0.5mm
|
|
|
High
|
115.7±0.5mm
|
204.6±0.5mm
|
|
weight
|
|
1.98±0.05Kg
|
5.42±0.3Kg
|
If you are interested in the product, contact 2bvideo.com for more information for more information
The information of 2bvideo.com limited shown above is provided by the user or collected on the network. Video 2B does not guarantee the authenticity,accuracy and legitimacy of 2bvideo.com limited information. Video 2B does not involve legal relationships and disputes between users arising from transactions other than secured transactions on this website. Disputes shall be settled by you through negotiation. If you are the person in charge or relevant employee of this enterprise, if you find that the enterprise information is incorrect or want to manage thiscompany, please contact us jacklee1558@gmail.com, after you claim the enterprise, you can obtain management permission, publish supplyand demand information, bring consulting orders, and remove page advertisements.
Main Product:
Rack battery,

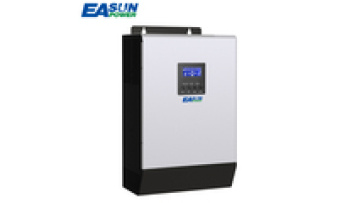

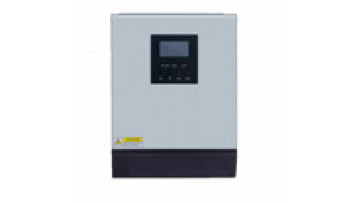

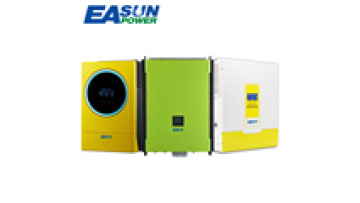

Solar Inverter,
LifePO4 Battery ,
Solar controller,
Powerwall battery,

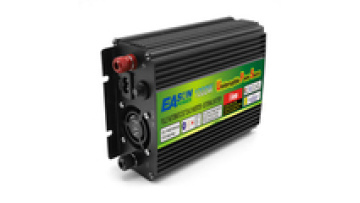

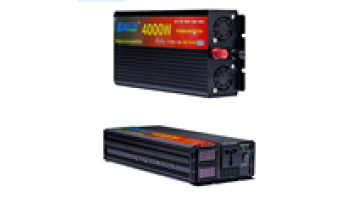

Pure sine wave inverter
