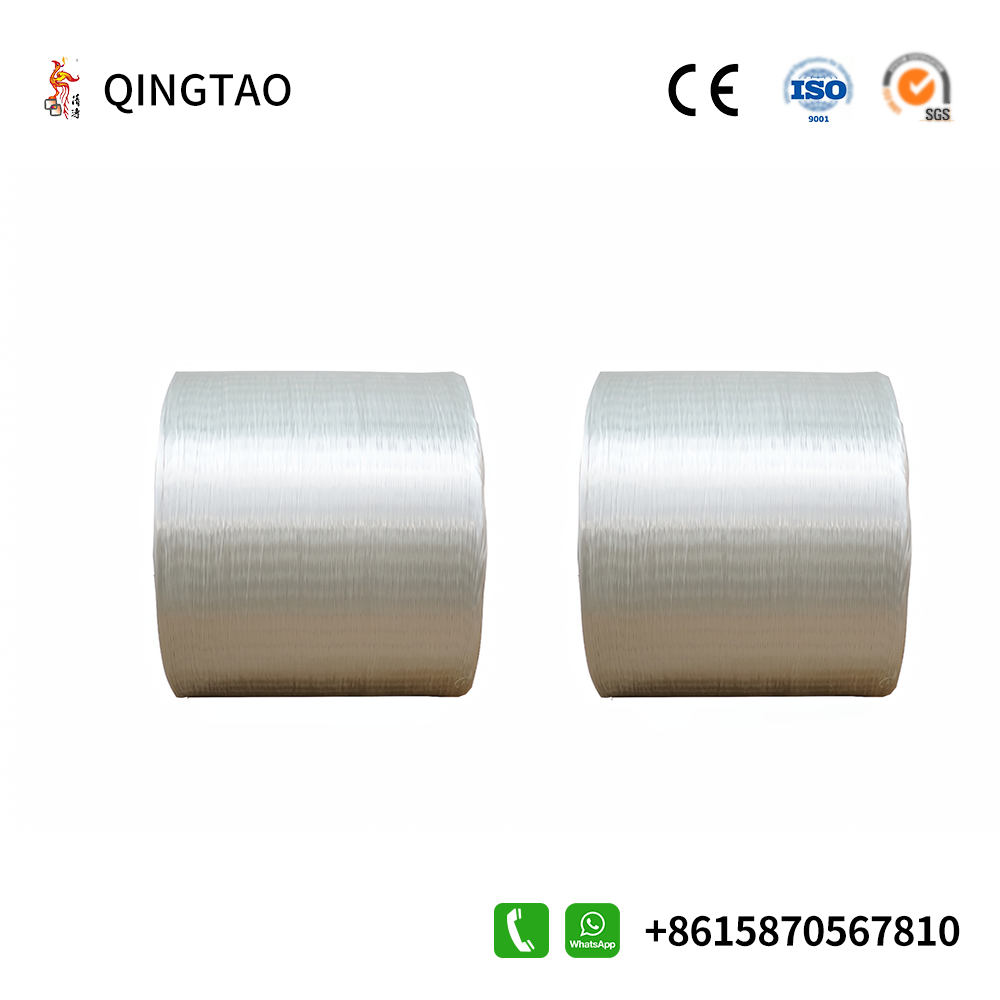

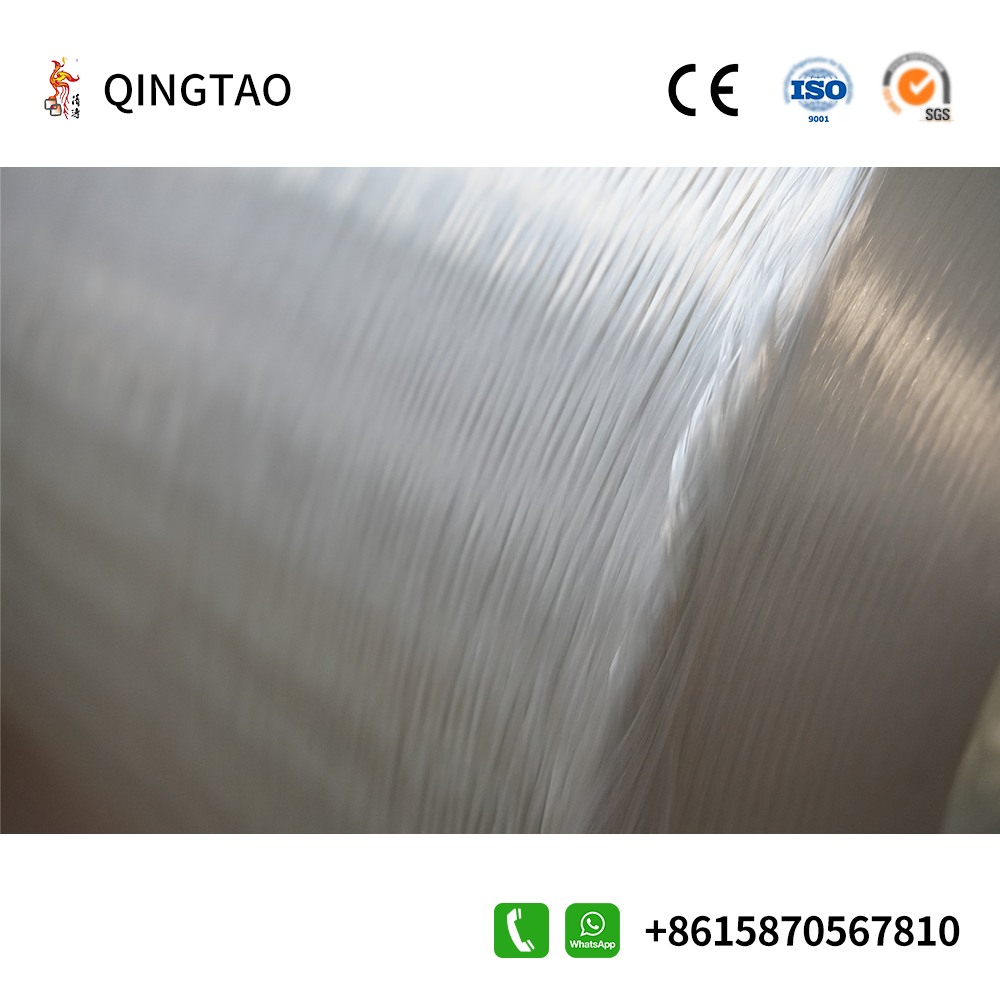

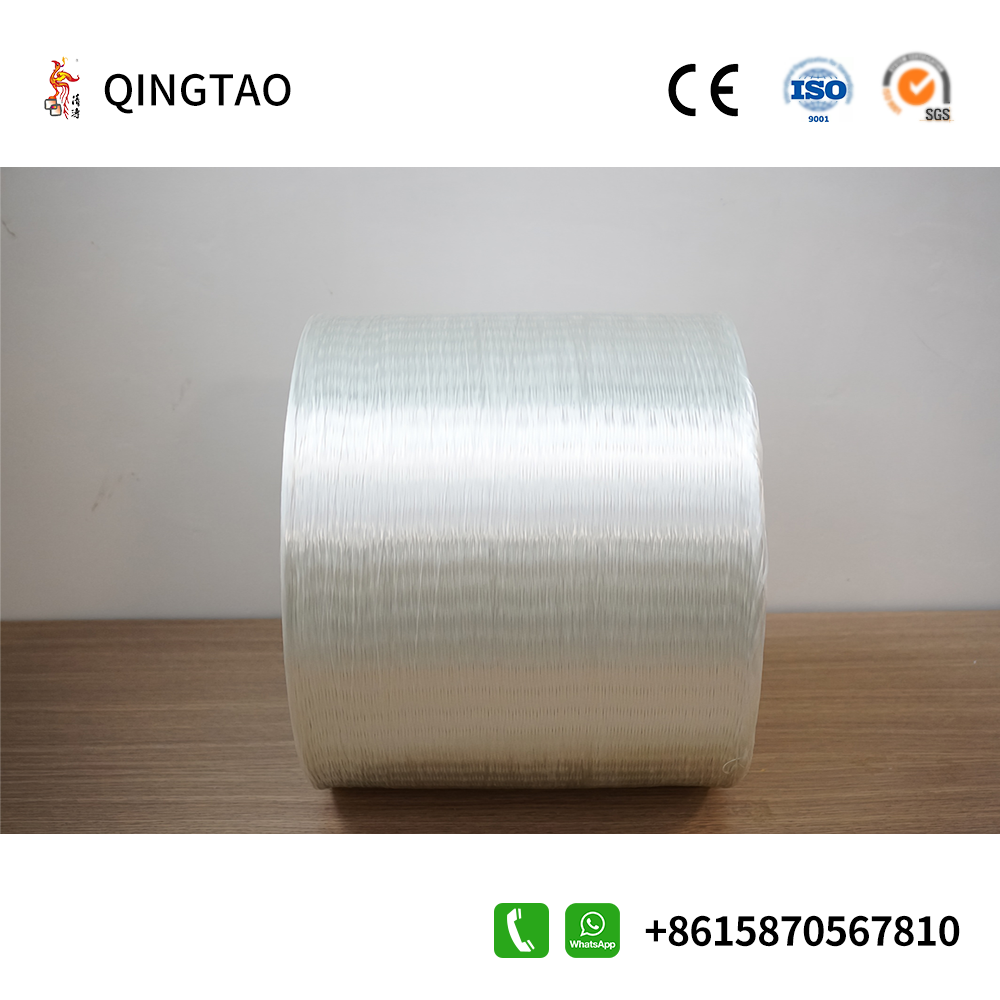

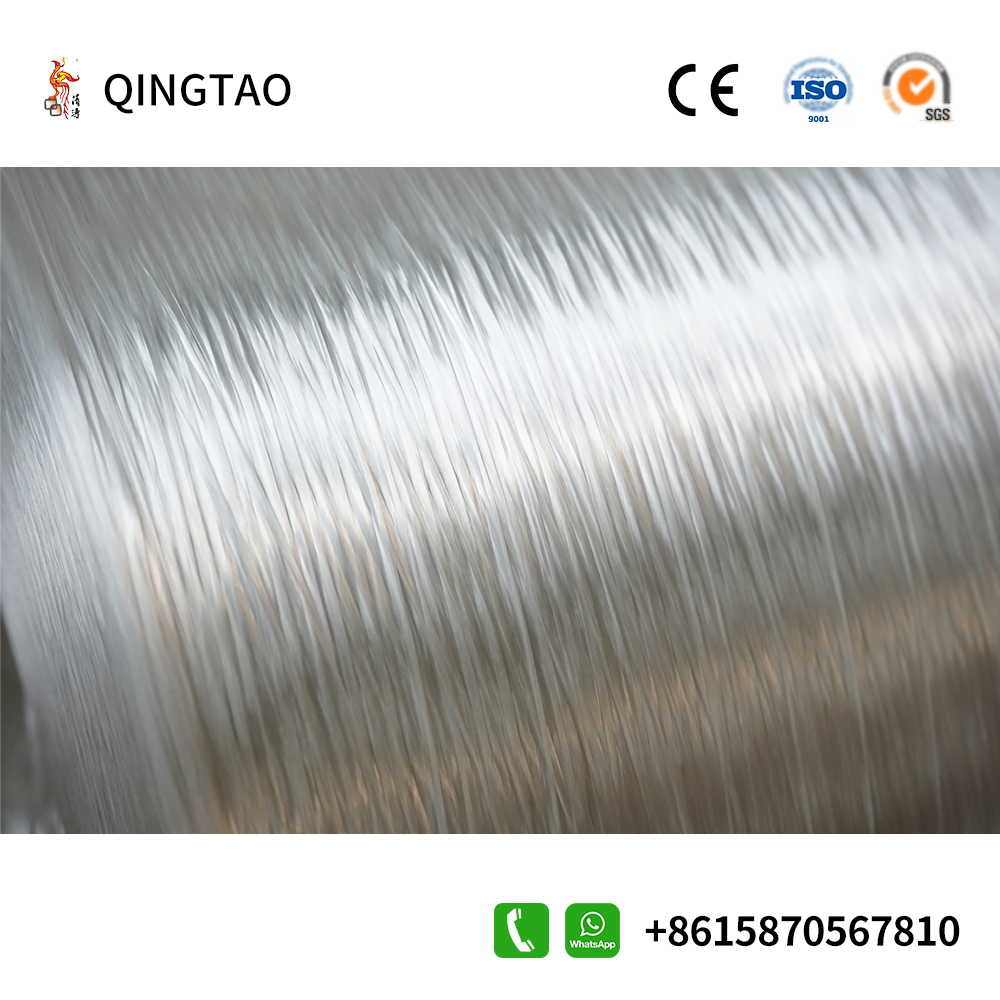

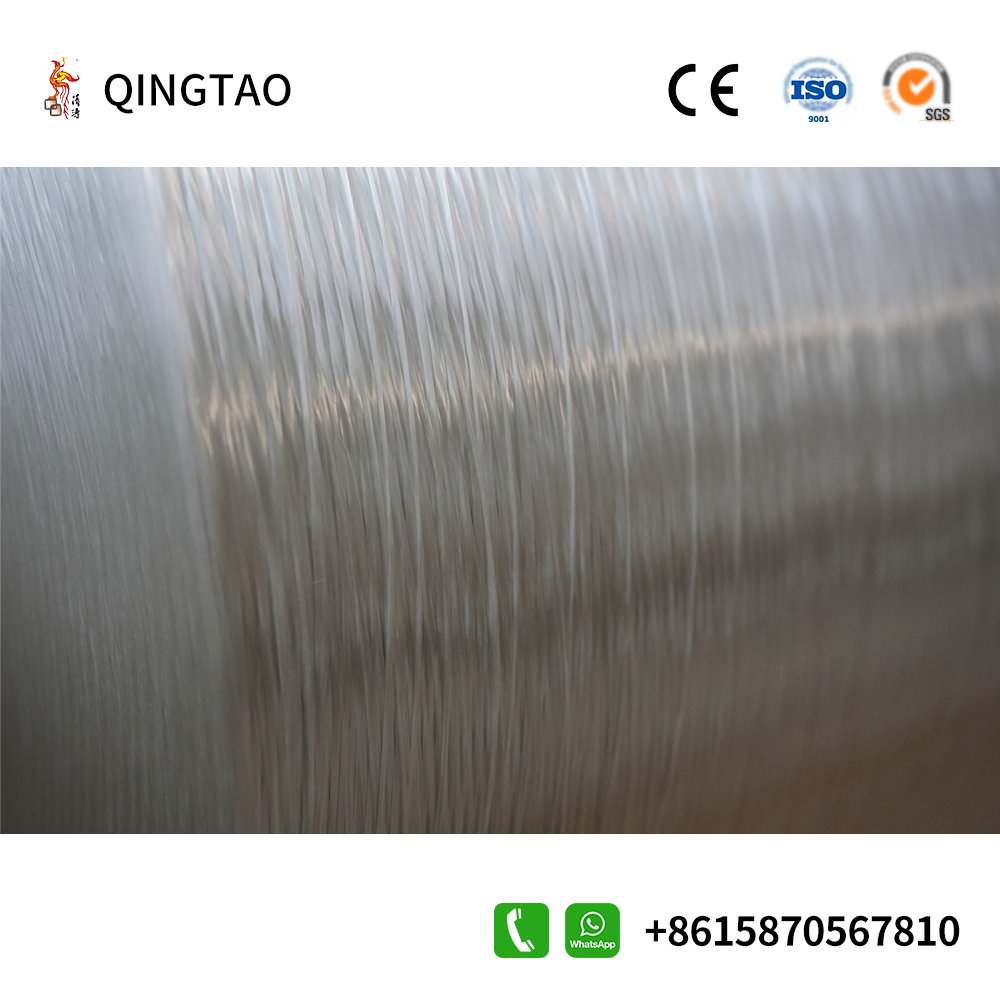

Low Static Fiberglass Roving For SMC

2 year ago

16 0

Chongqing Qingtao Fiberglass Products Co., Ltd.

 2 year year

Product details

Fiberglass SMC Roving is compatible with unsaturated of polyester resin and vinyl ester resin. It is mainly used for automobile parts,electrical appliance, tank crust and sport of instruments, etc.

Product Specification
Item	TEX	LOl (%)	MOl (%)	Compatible Resin	Applicable Process
Fiberglass SMC Roving	2400 4800	1.10-1.30	≤0.10	UP VE	Structure type
Fiberglass SMC Roving	2400 4800	1.00-1.40	≤0.10	UP VE	Structure and Surface type

Chop Roving

E-glass fiber twistless roving SMC yarn (hereinafter referred to as SMC yarn) is a raw yarn drawn with a special sizing agent and plied by multiple strands. It is suitable for sheet molding compound reinforcement materials. Typical products include seats, water tanks, auto parts, tour bus casings and other products (glass yarn).

1) The fiber has good antistatic properties and less lint.
2) During the molding process, the fiber fluidity is good
3) The sheet is dense and has excellent machine properties
4) Lower sheet extrusions.

R20 content: < 0.8%
Coupling of agent type: silane
Fiber nominal diameter: 14um
The content (Fiber glass) water: ≤0.2%
Combustible content: 1.4+0.25% (T949c3) or 1.45+0.25% (T949QZ) Applicable resin: polymer, vinyl type

Mechanical characteristic with SMC molded sheets(Fiberglass cloth):
Bending strength: 187MPa (glass fiber content 26.3%)
Note: This data is corporate laboratory data. Data is for reference only and should not be used for technical (glass yarn) standard.
grid.
Package

The outer diameter of each roll of SMC yarn is 26cm. After thermoplastic packaging, it is wrapped in a polyethylene bag, packed in a corrugated unit packaging box or a sky-and-ground box, and stacked on a 110cmx110cm pallet, with 48 rolls per pallet or 64 rolls per pallet. The pallet contains 48 rolls or 64 rolls, the net weight of each pallet is 816kg or 1088kg, and it is wrapped with shrink film. It can also be packaged and shipped in one box.
