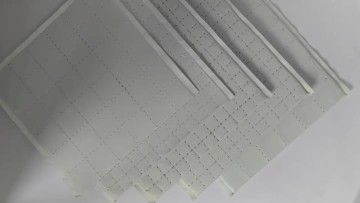

Flexible microporous board with glass cloth quilting combines the insulating properties of microporous materials with the structural support and durability of glass cloth. Let's break it down:
Microporous Insulation Board: Microporous insulation is a highly effective type of insulation made up of extremely small pores. These tiny pores trap air molecules, significantly reducing heat transfer through conduction and convection. Microporous insulation boards are rigid panels or sheets made from materials such as silica, alumina, perlite, or vermiculite.
Glass Cloth: Glass cloth, or fiberglass cloth, is a woven fabric made from glass fibers. It's known for its strength, flexibility, and resistance to heat and fire. Glass cloth is commonly used in applications where high-temperature resistance and durability are required.
Quilting: Quilting is a sewing technique that involves stitching together layers of fabric to create a padded material. In the context of microporous insulation boards, glass cloth is quilted onto the surface of the insulation board to provide additional reinforcement and protection.
By quilting glass cloth onto microporous insulation boards, we can enhance the structural integrity of the insulation while also providing an additional barrier against external elements such as moisture, mechanical damage, and abrasion. This combination results in a versatile and durable insulation solution suitable for a wide range of applications, especially those requiring high-temperature resistance and thermal efficiency.
Overstitched microporous insulation board is an advanced thermal insulation material used in various industrial and commercial applications where high thermal performance is required. These boards are typically made from inorganic materials such as silica, alumina, or calcium silicate, and they feature a highly porous structure with small pores (typically less than 2 nanometers in diameter). This unique structure gives them excellent insulating properties, including low thermal conductivity and high thermal stability.
The microporous structure of these insulation boards effectively traps air molecules within the material, minimizing heat transfer through conduction and convection. As a result, they offer superior thermal insulation compared to traditional insulation materials like fiberglass or foam.
Custom-made microporous insulation panel applicates in industries such as aerospace, automotive, power generation, metallurgy, and building construction. They are used in applications where space is limited, and high thermal efficiency is critical, such as furnaces, kilns, ovens, pipelines, and various high-temperature equipment.
Some key advantages of microporous insulation boards include:
High thermal efficiency: They offer excellent thermal insulation properties, with low thermal conductivity, allowing for energy savings and improved process efficiency.
Compact size: Flexible microporous board has high insulation performance in thin layers, making them suitable for applications where space is limited.
Chemical resistance: They are resistant to most chemicals, making them suitable for use in corrosive environments.
Low moisture absorption: Microporous insulation boards typically have low moisture absorption rates, ensuring stable performance even in humid conditions.
Fire resistance: Many microporous insulation materials are non-combustible and offer excellent fire resistance properties.
| Product model | K 1100 | K 1000 pro | K 1000 |
|
Max.application
temperature °C
|
1100 | 1000 | 950 |
| Shrinkage value |
~
1.5%
(after 12 hrs @ 1000°C)
|
~
1.5%
(after 12 hrs @ 1000°C)
|
~1.0%
(after 12 hrs @ 900°C)
|
|
Flexural strength
MPa
|
0.12 | 0.13 | 0.12 |
|
Specific heat capacity
KJ/kg·K
|
~ 1.0 | ~ 1.0 | ~ 1.0 |
|
Thermal conductivity
W/m·K
|
- | - | - |
| 20 ℃ | 0.021 | 0.019 | 0.02 |
| 200℃ | 0.024 | 0.021 | 0.022 |
| 400℃ | 0.028 | 0.024 | 0.025 |
| 800℃ | 0.035 | 0.028 | 0.03 |
| Resistance | High | High | High |
|
Non combustibility
test classification
DIN ISO 4102
|
A1 | A1 | A1 |
