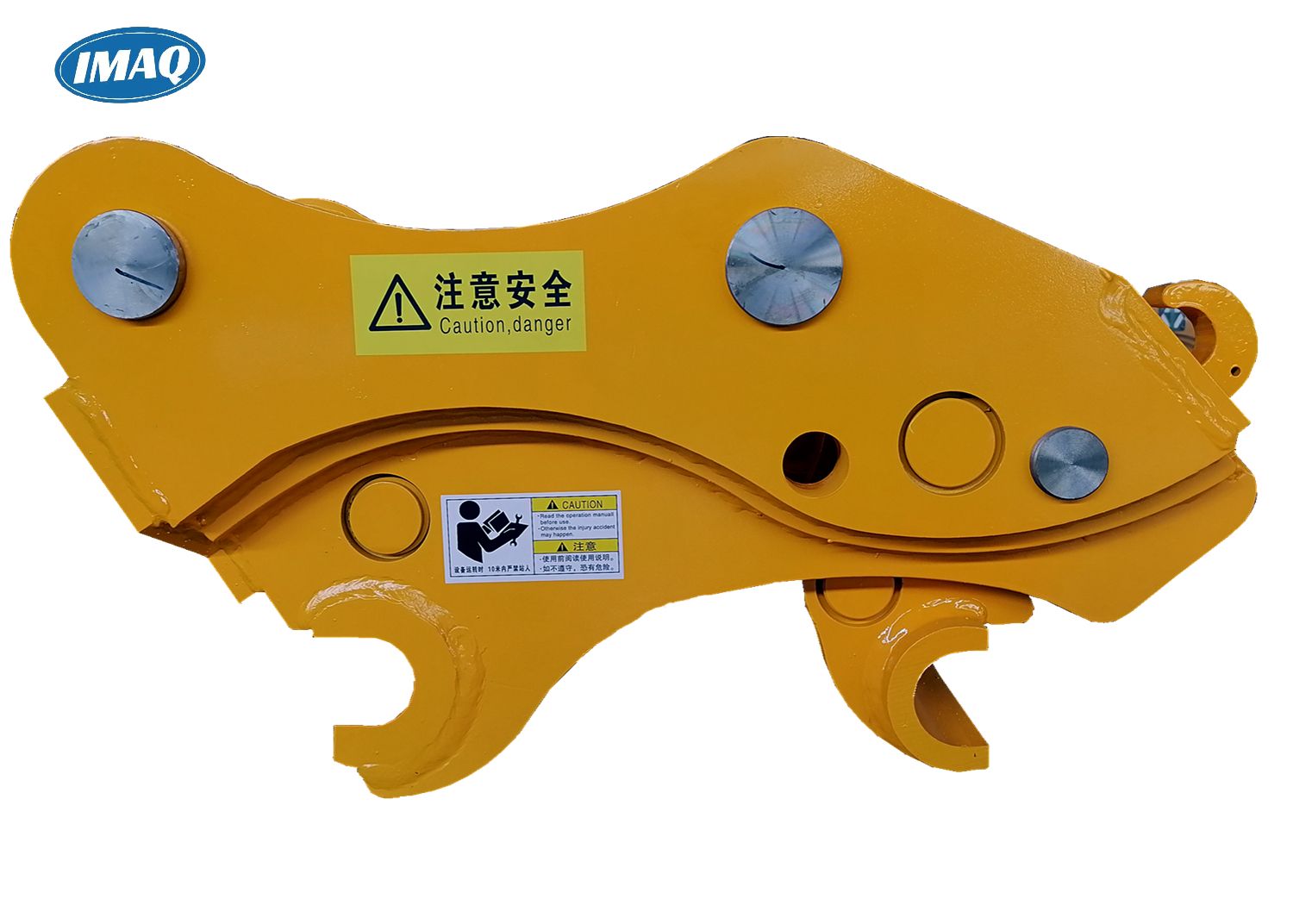

Quick-Coupler:
Applicable working conditions:
It is suitable for quickly installing and switching the front end of the excavator (bucket, soil reliever, crushing hammer, hydraulic shear, etc.) on the excavator, expanding the use range of the excavator, reducing the front end installation time and improving the efficiency. Widely used in various types of excavator equipment.
Quick-Coupler three components:

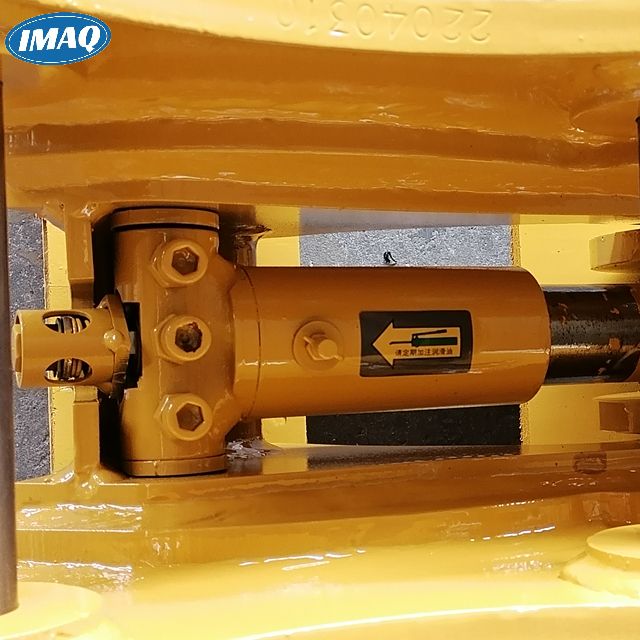

Hydraulic control system
Hydraulic power system
Riveted and welded main structure
Factory configuration:
Hydraulic Quick-Coupler: a host, a set of pipes, not package installation
Mechanical Quick-Coupler: one main machine, one mechanical wrench
Mechanical/hydraulic Quick-Coupler product design features:
① Material: The fuselage is designed with Q355B high-strength manganese plate, which meets the standard of the host manufacturer and has the advantages of high strength, high toughness and high wear resistance
② Using CNC butt boring process, high precision, high concentricity, more durable
③ The main body adopts the whole thickened plate, laser cutting, accurate data
④ The use of three-layer welding, laser welding, high strength, better wear resistance
⑤ Large mouth, the use of whole steel pipe cutting and forming, high safety
⑥ Suitable for 3-90 tons of excavator, at the same time according to the different conditions of customers can choose welding (mechanical/hydraulic) Quick-Coupler, pressure plate Quick-Coupler
Welcome to our details page,specializing in Construction Machinery like excavator,road roller, Energy Equipment, encompassing a diverse range of Used Equipment for all your construction machinery needs.
Product parameters:
Hydraulic (Quick-Coupler)
|
Item/Model |
Unit |
DG30K |
DG60K |
DG80K |
DG150K |
DG200K |
DG300K |
DG400K |
DG500K |
|
Total length |
mm |
460 |
565 |
600 |
780 |
1000 |
1070 |
1080 |
1120 |
|
Total height |
mm |
280 |
335 |
345 |
435 |
545 |
600 |
610 |
640 |
|
Pin to pin distance |
mm |
90-190 |
235-265 |
285-330 |
390-430 |
455-500 |
500-520 |
550-590 |
590 |
|
Cylinder expansion distance |
mm |
165-205 |
215-270 |
215-270 |
270-340 |
320-390 |
410-490 |
410-490 |
440-550 |
|
Distance between upper and lower pins |
mm |
190 |
220 |
220 |
275 |
350 |
380 |
390 |
390 |
|
Pin |
mm |
30-40 |
45 |
50-55 |
60-65 |
70-80 |
90 |
100 |
110 |
|
Weight |
kg |
30 |
90 |
100 |
210 |
390 |
520 |
560 |
450-600 |
|
Operation pressure |
Mpa |
4-8 |
4-8 |
4-8 |
4-8 |
4-8 |
4-8 |
4-8 |
4-8 |
|
Suitable excavator |
T |
1.7-3.6 |
5-9 |
9-11 |
11-18 |
18-24 |
24-36 |
36-40 |
40-48 |
Mechanical (Quick-Coupler)
|
Item/Model |
Unit |
DG30KJ |
DG60KJ |
DG80KJ |
DG150KJ |
DG60KJ-16YB |
DG80KJ-16YB |
|
Total length |
mm |
460 |
565 |
600 |
780 |
580 |
620 |
|
Total height |
mm |
280 |
335 |
345 |
435 |
340 |
360 |
|
Pin to pin distance |
mm |
90-190 |
235-265 |
285-330 |
390-430 |
235-265 |
285-315 |
|
Cylinder expansion distance |
mm |
130-180 160-220 |
200-285 |
200-285 |
275-375 |
200-285 |
200-285 |
|
Distance between upper and lower pins |
mm |
190 |
220 |
220 |
275 |
220 |
230 |
|
Pin |
mm |
30-40 |
45 |
50-55 |
60-65 |
45 |
50-55 |
|
Weight |
kg |
30 |
90 |
100 |
210 |
70 |
80 |
|
Suitable excavator |
T |
1.7-3.6 |
5-9 |
9-11 |
11-18 |
5-9 |
9-11 |
