Product details

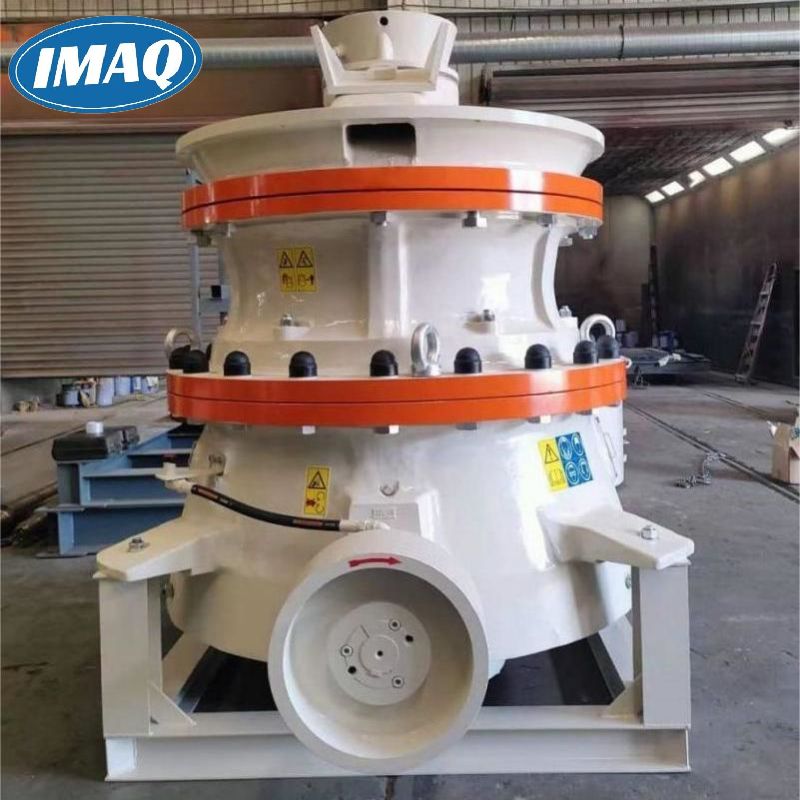

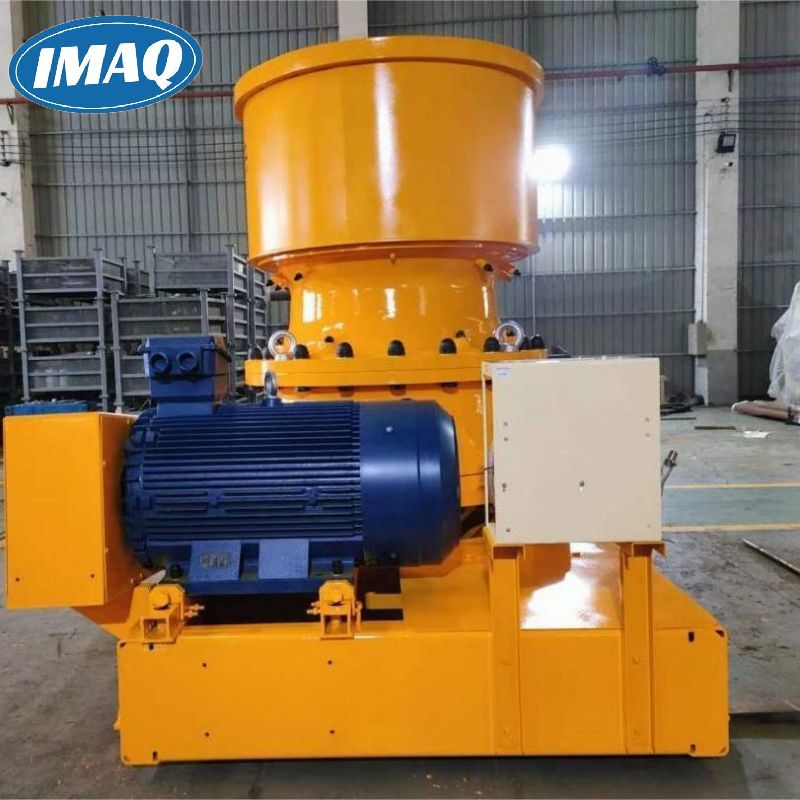

ZGP single cylinder cone crusher
Crusher mining equipment refers to the machinery used in the mining industry to break down large rocks into smaller pieces. This equipment is commonly used in open-pit mining, underground mining, and quarrying operations.ZGP single cylinder cone crusher adopts advanced crushing technology, has the characteristics of uniform crushing size, large crushing ratio, simple structure and easy operation. The equipment adopts a single cylinder hydraulic adjustment system, which makes the adjustment process more convenient and quick, and can meet the production needs of different users. At the same time, the crusher also has a high crushing efficiency, can reduce production costs, improve economic benefits. High efficiency crushing: ZGP single cylinder cone crusher has an optimized crushing chamber design, which can make full use of material energy and improve crushing efficiency.
In the crushing process, the material is subjected to extrusion, bending and other forces to achieve efficient crushing. Wide range of adjustment: the equipment adopts hydraulic control system, and the discharge port can be adjusted by adjusting the hydraulic cylinder. This allows ZGP single-cylinder cone crusher to adapt to different specifications and particle size material requirements, with greater flexibility.
Energy saving and environmental protection: The crusher uses advanced hydraulic technology and energy-saving design, effectively reduce energy consumption and wear rate, reduce pollution emissions in the production process, in line with green production requirements.
Automatic control: ZGP single-cylinder cone crusher is equipped with intelligent control system, which can realize automatic operation and monitoring, reduce the difficulty of operation and improve production efficiency.

Easy maintenance: The equipment structure is simple, easy to maintain, reduce maintenance costs, improve the service life of the equipment.

Welcome to our details page, the range of products includes construction machinery such as medium and large excavators, mini excavators, and pile drivers, mining equipment like crushers, and energy equipment comprising generator sets. Welcome detailed consultation

	ZGP100S	ZGP200S	ZGP300S	ZGP500S	ZGP700S	ZGP100	ZGP220	ZGP330	ZGP550
Technical Specification
power	75-90 kW	110 -160 kW	132-250 kW	200-355 kW	375-560 kW	75-90 kW	132-220 kW	250-315 kW	250-400 kW
Dead weight of crusher*)	7350 kg	10900 kg	16200 kg	33300 kg	62000 kg	5800 kg	10200 kg	15700 kg	26500 kg
material inlet
crushing cavity	material inlet
EF						46 mm	58 mm	**)	68 mm
F						53 mm	89 mm	85 mm	95 mm
MF						95 mm	101 mm	107 mm	113 mm
M	206 mm					141 mm	118 mm	135 mm	152 mm
C	239 mm	222.mm	247 mm	321 mm	335 mm	142 mm	182 mm	184 mm	192 mm
EC		295 mm	332 mm	401 mm	414 mm		213 mm	225 mm	250 mm
EC-LS/EC-TP			332 mm	442 mm	450 mm **)		213 mm	225 mm	265 mm
offset
Eccentricity option	16,20,25 mm	18,25,28,32, 36 mm	18,22,25,28, 32,36 mm	18,25,28,32, 36,40 mm	25,28,32,36 40,45,50 mm	16,20,25 mm	18,25,28,32, 36,40 mm	18,22,25,28, 32,36,40 mm	25,28,32,36, 40.45 mm
production capacity
Tight edge discharge port	capacity(Mtph)
6 mm						35-50
8 mm						40-65	70-90	105-145
10 mm						45-73	80-130	110-190	140-**)
15 mm						50-95	105-175	130-260	160-310
20 mm	80-90					65-105	120-230	155-300	190-340
25 mm	105-155	110-160	180-200				150-265	180-350	230-410
30 mm	120-195	150-265	170-290		350-450		165-280	210-390	250-450
35 mm	135-220	190-330	200-400		430-640		180-**)	265-**)	280-510
40 mm	145-230	210-365	215-440		500-840				350-**)
45 mm	155-250	230 -**)	235 -**)	300-470	580-970				400-**)
50 mm		240-**)	260-**)	375-670	650-1140
55 mm				400-750	750 -1260
60 mm				450-800	830-1380
65 mm				470-870	900 -1500
70-80 mm				500-**)	980 -**)
80-90 mm					1130-**)
