Arc Tooth Timing Belt

11 month ago
22 0
Product details

High Strength HTD5M Rubber Arc Teeth Timing Belt


Description:

Arc Teeth Timing Belt is a specially designed timing belt with an arc-shaped tooth profile (HTD, RPP/HPPD, STPD/STS). It is specially designed for high torque and high-speed applications and is an alternative to the traditional trapezoidal teeth timing belt. The upgrade can provide reliable power transmission and motion control for the transmission system.

Technical parameters:

Tooth Profile

Type

Pitch(mm)

Tooth Height(mm)

Belt Thickness(mm)





HTD

2M

2.00

0.75

1.36

3M

3.00

1.17

2.4

5M

5.00

2.06

3.8

8M

8.00

3.36

6.00

14M

14.00

6.02

10.00

20M

20.00

8.4

13.20





STPD/STS

S2M

2.00

0.76

1.36

S3M

3.00

1.14

1.9

S4.5M

4.50

1.71

2.81

S5M

5.00

1.91

3.4

S8M

8.00

3.05

5.3

S14M

14.00

5.3

10.2





RPP/HPPD

P2M

2.00

0.76

1.36

P3M

3.00

1.15

1.9

P5M

5.00

1.95

3.5

P8M

8.00

3.2

5.5

P14M

14.00

6.00

10


Advantage:

1. High transmission stability: The arc teeth timing belt has a reasonable tooth groove design, which makes the belt pulley and the belt body more closely meshed, which can reduce the tooth skipping phenomenon in the transmission and  the energy loss during the transmission process. This ensures the stability of the transmission.
2. Low noise: The tooth design of the arc teeth timing belt reduces the impact and vibration during the transmission process, thereby reducing the generation of noise and making the transmission more stable. This also enables it to withstand greater loads.
3. Long service life: The arc teeth timing belt is made of high-strength polyurethane or rubber material, which has good wear resistance and corrosion resistance and can maintain a long service life.

Application:

Food, automobile, textile, pharmaceutical, printing, paper and other industries.

Photos:

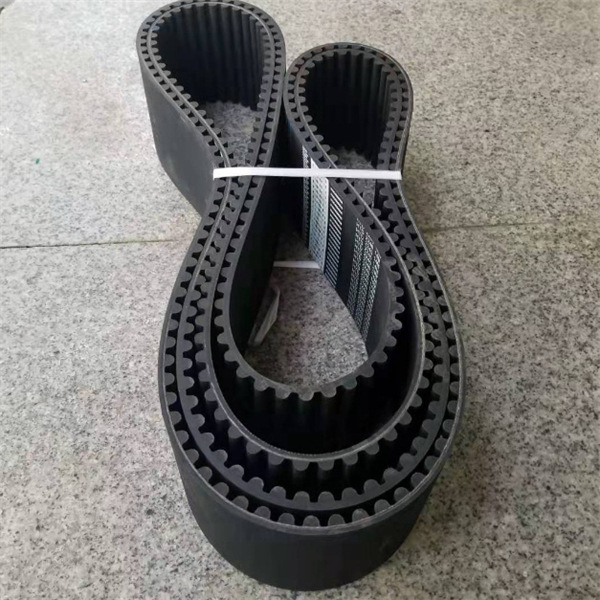

Arc Tooth Timing Belt

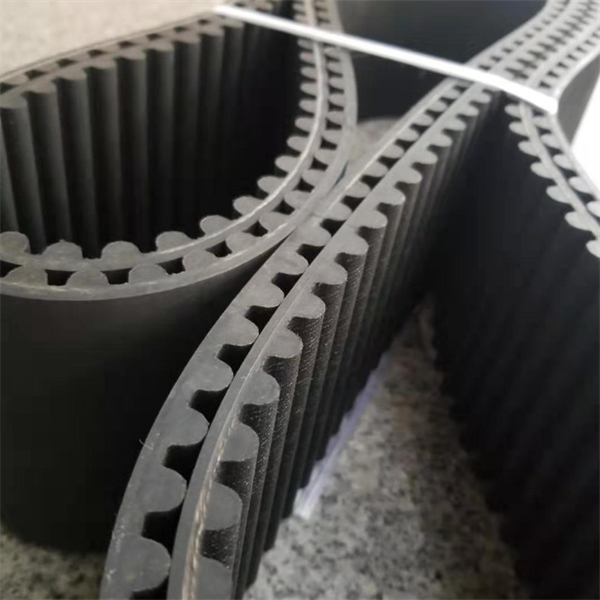

Arc Tooth Timing Belt
