GT2 Arc Teeth Timing Belt Pulley for 3D Printer

Description:

Timing belt pulley is an essential component in many jobs and is also a very important component. And widely used in the transmission field. It has more advantages than chain drive. It has the advantages of smooth transmission, high transmission efficiency, and good heat resistance of the product. It is no exaggeration to say that wherever mechanical transmission is required, transmission pulley must be used.

Arc-tooth timing pulleys are divided into full-arc teeth and semi-arc teeth.
Full-arc teeth: HTD3M, HTD5M, HTD8M, HTD14M, HTD20M
Semi-arc teeth: S2M, S3M, S4.5M, S5M, S8M, S14M, 8YU

Technical parameters:

Type	Pitch	hg	R	S	Top circle R	Angle
HTD3M	3	1.28	0.91	1.90	0.3	≈14°
HTD5M	5	2.16	1.56	3.25	0.48	≈14°
HTD8M	8	3.54	2.57	5.35	0.8	≈14°
HTD14M	14	6.20	4.65	9.80	1.4	≈14°

Type	Pitch	hg	Root circle R	Groove width	2K
S2M	2	1.325	1.325	1.30	0.508
S3M	3	1.975	1.975	1.95	0.762
S4.5M	4.5	2.98	2.98	2.93	0.762
S5M	5	3.275	3.275	3.25	0.96
S8M	8	5.30	5.30	5.20	1.372
S14M	14	4.95	9.28	9.10	2.794

Advantage:

1. Accurate transmission, low noise, no slipping

2. Multi-axis transmission, oil-resistant, moisture-proof, no lubrication required

3. Safe and environmentally friendly, widely used, supports customization

Application:

Arc teeth timing belt pulleys are widely used in various mechanical transmission systems, such as industrial production lines, packaging machinery, CNC machine tools, printing equipment, etc.

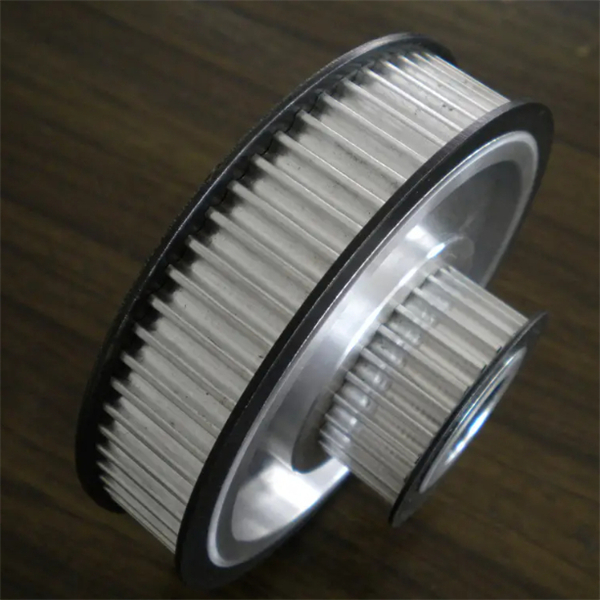

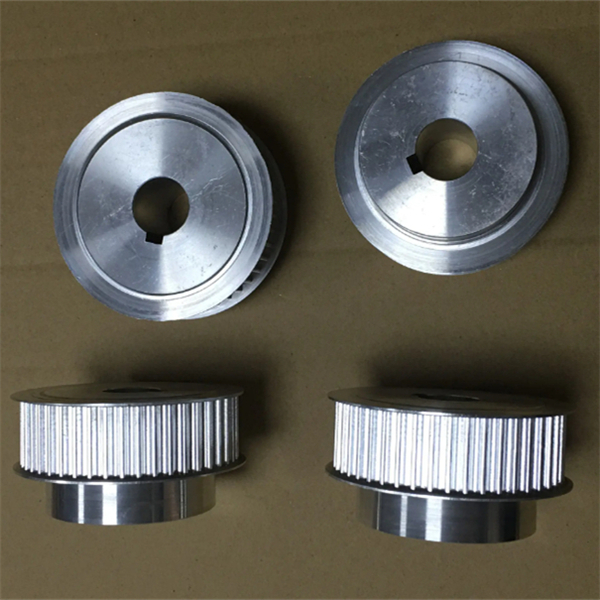

Photos:
