PK Rubber Multi Wedge Belt
Industrial ribbed belt, also known as a poly-ribbed belt or multi-ribbed belt, is a type of power transmission belt commonly used in various industrial applications. It features multiple ribs or grooves on the inner side of the belt that engage with corresponding grooves on the pulleys. This design provides increased contact surface area, allowing for efficient power transfer and reduced slippage.
Applications of PK Ribbed Belt:
1. Industrial Machinery: Industrial ribbed belts are widely used in industrial machinery for power transmission. They are commonly found in applications such as conveyor systems, pumps, compressors, and generators.
2. Appliances: Industrial ribbed belts can be found in household appliances such as washing machines, dryers, and vacuum cleaners for efficient power transfer.
3. Agricultural Machinery: They are used in agricultural equipment like combines, tractors, and harvesters for power transmission.
Advantages:
1. Durable and Reliable: These belts are designed to be durable and resistant to wear, providing a long service life.
2. Quiet Operation: Industrial ribbed belts operate with reduced noise and vibration compared to other belt types, contributing to a quieter working environment.
1. Versatile: They can accommodate a wide range of applications and are available in various sizes and configurations to suit different power transmission needs.
Specificiations of PK Ribbed Belt :
PK multi-V belt general specifications: |
Wedge distance pb: 3.56, wedge angle a: 40, belt thickness h: 4-6, number of wedges rb: 3-23, length b: 600-3000. |
PK Multi V-belt performance |
PK Poly V-belt standard |
Resistance temperature (℃) |
-30 +90 |
Oil resistance |
Oil resistant |
Recommended minimum pulley diameter |
45mm |
Horn |
40a° |
Permanent elongation |
small |
Recommended maximum speed m/s |
60 |
Efficiency |
96% |
Use heavy behavior |
good |
With trembling |
Very small |
Maximum transfer |
1:35 |

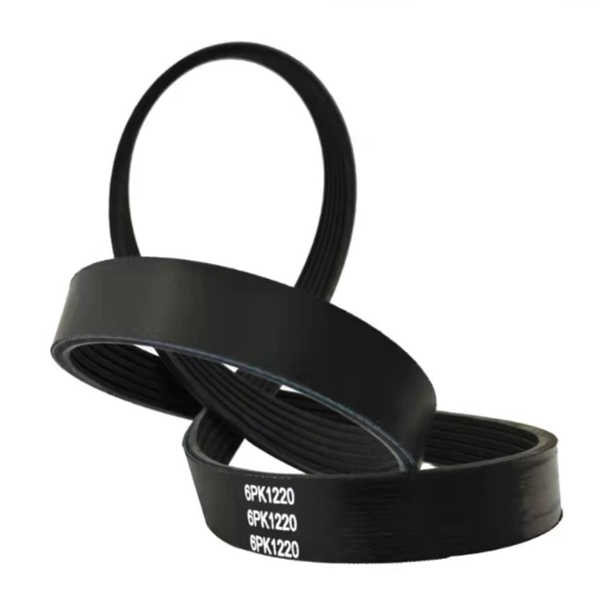

Photos Reference:
