Courier cargo three-wheeled electric vehicle

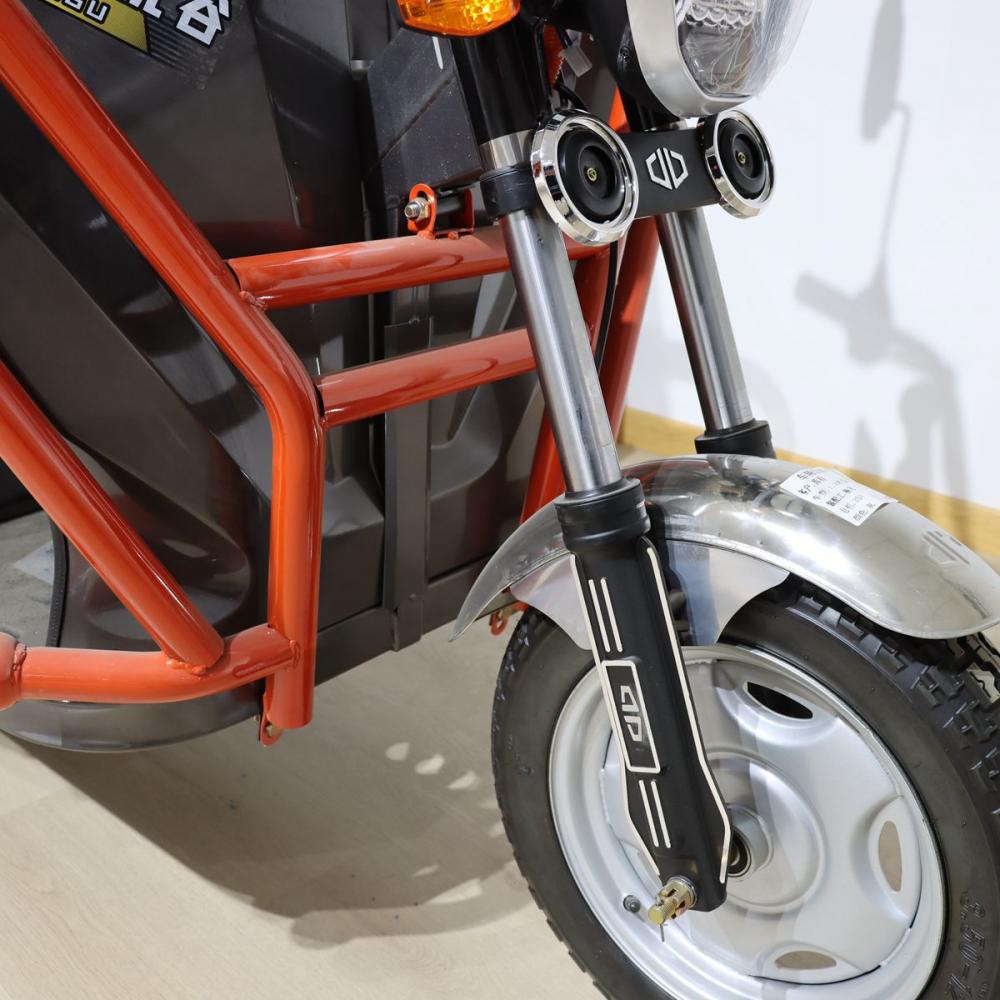

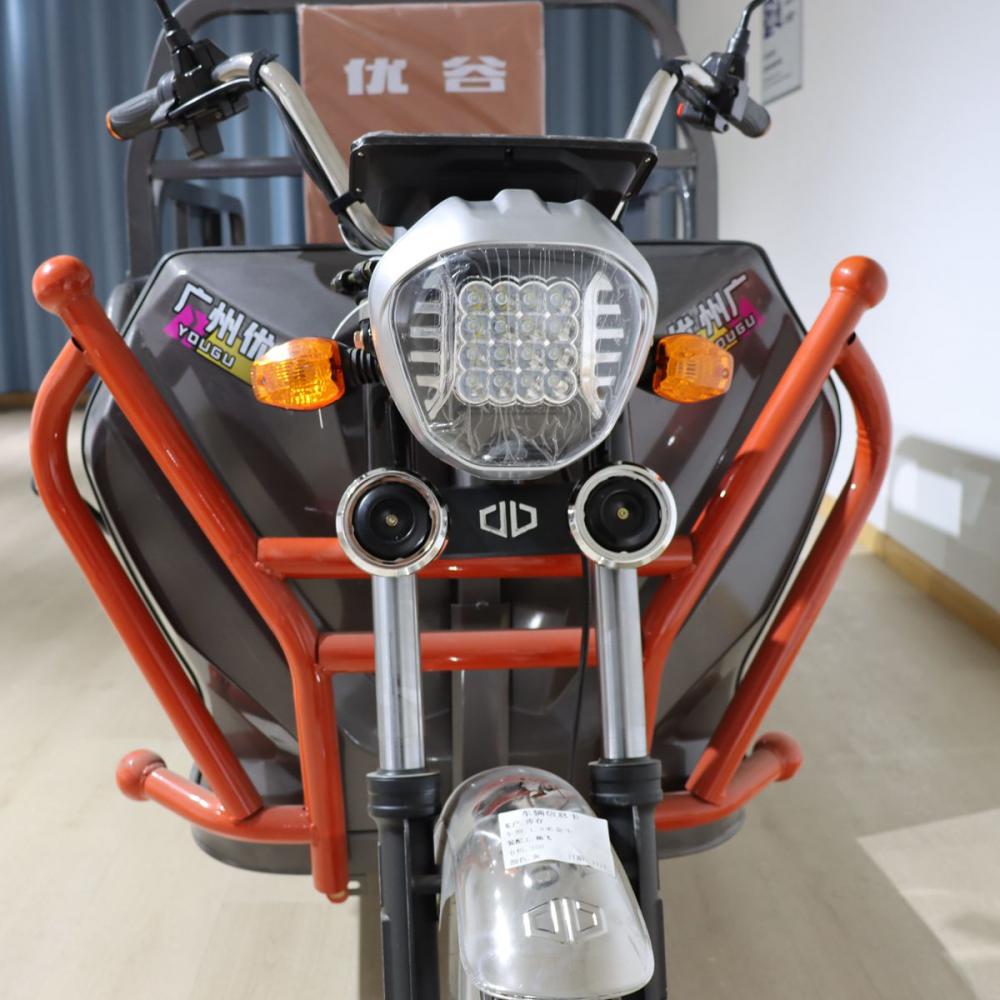

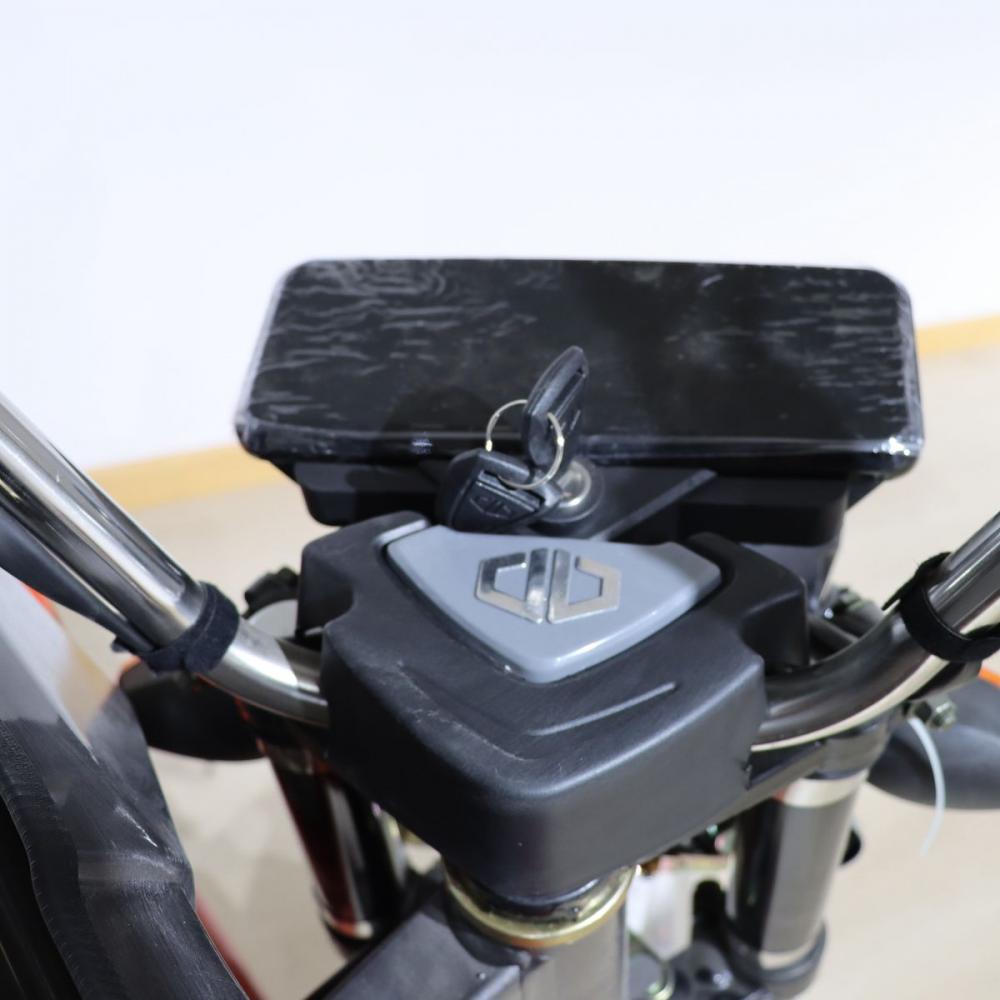

When carrying light cargo, Household Transportation Vehicle travel uses spring shock absorbers to improve comfort. When carrying heavy loads, spring shock absorbers and hydraulic shock absorbers work together to improve load-bearing capacity. The front of the Electric Cargo Tricycle is equipped with a new reinforced front bumper, which is made of thick material and has a high load-bearing capacity; It can withstand pressure without deformation and effectively protect the car. The body of a passenger electric bicycle is made of patterned steel plates and coated with electrophoretic paint, which has good luster and advanced rust prevention performance. The intelligent multifunctional handle of the Electric Passenger Tricycle adopts an alloy plug, which is anti slip and sweat absorbing, with centralized buttons for easy control. The one click reverse function is very practical.
| Technical parameters of electric tricycle | Number | Item | specification |
| Finished vehicle body | 1 | Whole car | Technical parameters of electric tricycle |
| 2 | Climb slope | ≤35° | |
| 3 | Height off ground | ≤200mm | |
| 4 | Bearing weight | ≥500kg | |
| 5 | Wheel track | 900mm | |
| 6 | Wheel base | 2000mm | |
| 7 | Battery position | Frame battery box | |
| 8 | Boundary dimension | 3000*1000*1550mm | |
| 9 | Maximum speed | ≤26Km/h | |
| 10 | Astern speed | ≤12Km/h | |
| 11 | endurance mileage | ≥50Km/h | |
| 12 | Tyre type | Front:375-12 behind:400-12 | |
| 13 | body | ||
| Carriage | 1 | material | 1.1mm iron plate electrophoretic baking paint |
| 2 | Carriage size | 1500*1000mm | |
| Rechargeable battery | 1 | Battery type | maintenance-free |
| 2 | Battery capacity | Selective configuration | |
| 3 | Battery voltage | 60V | |
| motor | 1 | Output power | 800W |
| 2 | Motor voltage | 60V | |
| controller | 1 | Specification requirements | 18 tubes double row |
| 2 | Rated voltage | 60V | |
| Rearview mirror | 1 | type | specific |
