Three-wheeled electric trucks for farm work

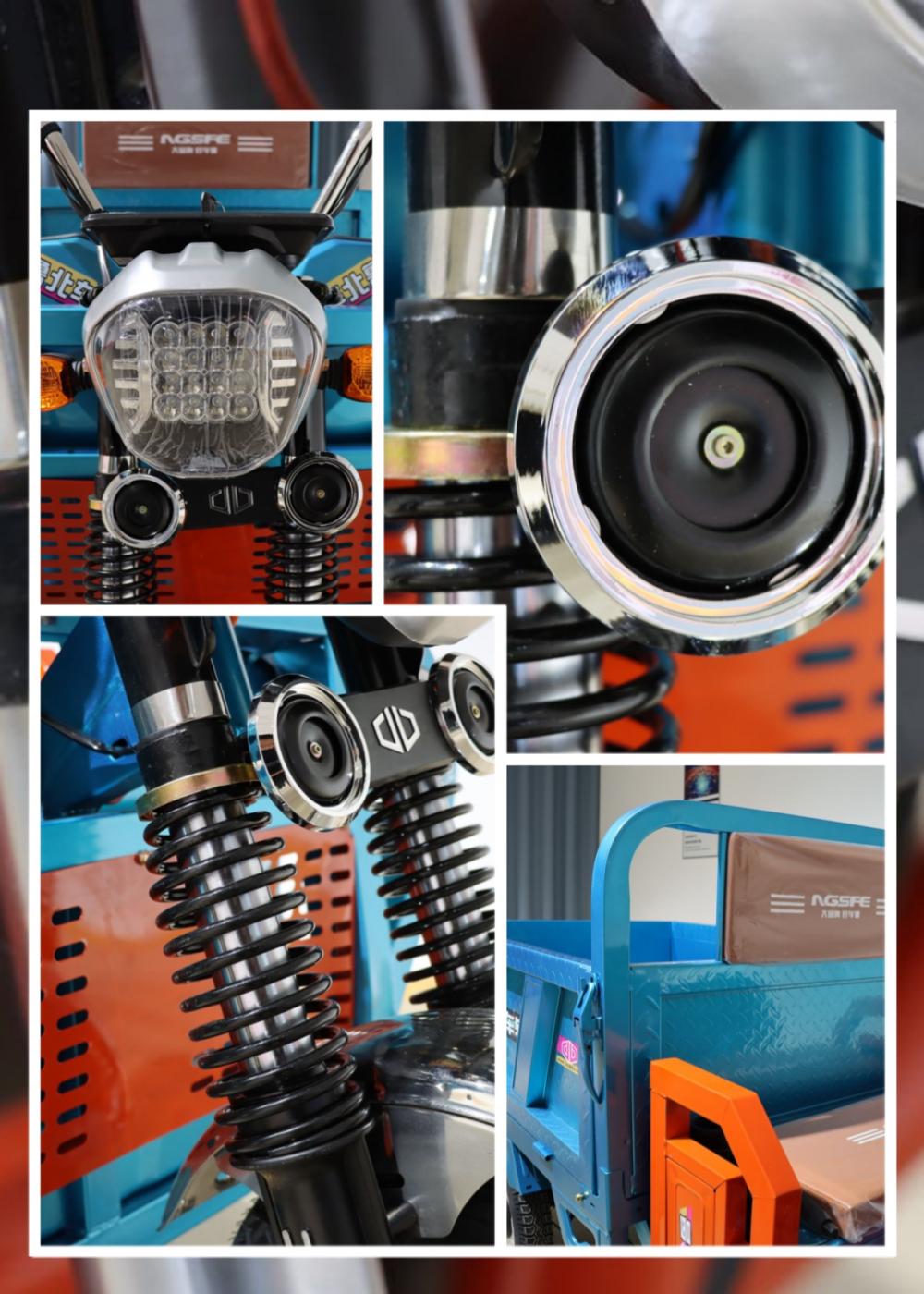

The Electric Passenger Tricycle is equipped with hydraulic shock absorbers and an external spring front reducer. Spring shock absorbers can improve comfort when carrying light cargo. When carrying heavy loads, both spring shock absorbers and internal hydraulic shock absorbers work simultaneously to improve load-bearing capacity. The Electric Cargo Tricycle is equipped with an integrated rear axle, providing powerful and unparalleled power, making it the ace bomb in the electric vehicle industry. The high-power, branded, and instantly powerful acceleration of the Household Transportation Vehicle always make you faster. The electric freight tricycle is equipped with a three brake linkage device, commonly known as single foot three brake, which can simultaneously brake the front and rear three wheels, truly achieving command and prohibition.
Specification
Technical parameter sof electric tricycle
Number
Item
specification
Finished vehicle body
1
Wholecar
2
Climb slope
≤35°
3
Height off ground
≤200mm
4
Bearing weight
≥500kg
5
Wheel track
900mm
6
Wheel base
2000mm
7
Battery position
Frame battery box
8
Boundary dimension
3000*1000*1550mm
9
Maximum speed
≤26Km/h
10
Astern speed
≤12Km/h
11
endurance mileage
≥50Km/h
12

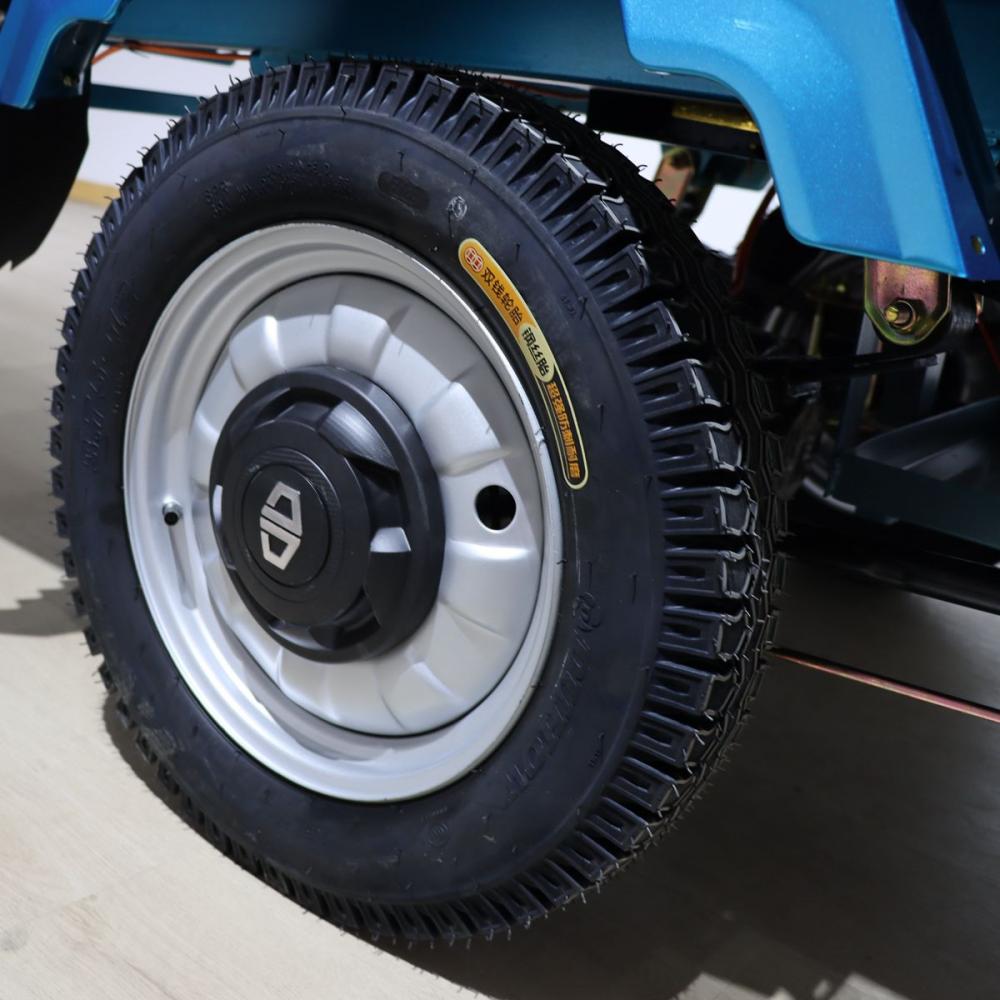

Tyre type
Front:375-12Rear:400-12
13
configuration
integrated 160 gear shifting，37 shock absorption，two beams, drum brake
Carriage
1
material
1.1 mm iron plate electro phoretic baking paint
2
Carriage size
1500*1000mm
Recharge battery
1
Battery type
maintenance-free
2
Battery capacity
Selective configuration
3
Battery voltage
60V
motor
1
Output power
800W
2
Motorvoltage
60V
controller
1
Specification requirements
18 tubes double row
2
Rated voltage
60V
Rearview mirror
1
type
specific
If you are interested in the product, contact 2bvideo.com for more information for more information
