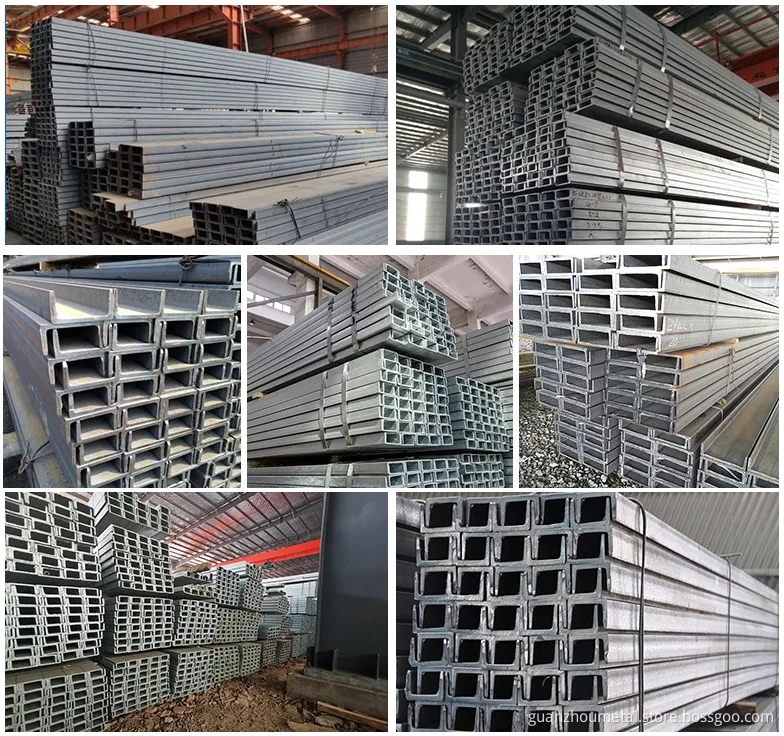

U&C Channel steel is a long strip of steel with a groove-shaped cross-section. Its specifications are expressed in millimeters of waist height (h) * leg width (b) * waist thickness (d), such as 120*60*5.5, which means that the channel steel with a waist height of 120 mm and a leg width of 60 mm has a waist thickness of 5.5 mm. mm channel steel, or UPE120 channel steel.
Channel steel has a wide range of uses and can be used in construction, machinery manufacturing, automobile manufacturing, shipbuilding and other fields. In the field of construction, channel steel is often used to make steel structure frames, support frames, beams and columns, etc. In the field of machinery manufacturing, channel steel is often used to make machine tool beds, tracks, conveyor belts, etc. In the field of automobile manufacturing, channel steel is often used to make frame, body and so on. In the field of shipbuilding, channel steel is often used to make hull frames, ship equipment, etc.
|
Products |
U Channel Steel |
|
Material |
Q195,Q215,Q235B,Q345B,S235JR/S235/S355JR/S355/SS440/SM400A/SM400B |
|
Type |
GB standard(10#-40#,100*48mm--400*102mm) JIS standard(50*25mm--250*90mm) |
|
Length |
6m, 12m, Large quantities can be customized |
|
Dimension |
5 # - 40 # |
|
Packing |
Suitable for export with bundle weight about 2MT |
|
Application |
Used for bridge, car, ship, boiler, construction, etc |
Specifications And Models of JIS Standard U-CHANNEL
|
Size |
Depth×Flange Width (mm) |
Web Thickness (mm) |
Flange Thickness (mm) |
Weight (kg/m) |
|
U50 |
50×25 |
3.0-5.0 |
6.0 |
2.37-3.46 |
|
U75 |
75×40 |
3.8 |
7.0 |
5.30 |
|
U75 |
75×40 |
4.0 |
7.0 |
5.60 |
|
U75 |
75×40 |
4.5 |
7.0 |
5.85 |
|
U75 |
75×40 |
5.0 |
7.0 |
6.92 |
|
U100 |
100×50 |
3.8 |
6.0 |
7.30 |
|
U100 |
100×50 |
4.2 |
6.0 |
8.03 |
|
U100 |
100×50 |
4.5 |
7.5 |
8.97 |
|
U100 |
100×50 |
5.0 |
7.5 |
9.36 |
|
U125 |
125×65 |
5.2 |
6.8 |
11.66 |
|
U125 |
125×65 |
5.3 |
6.8 |
12.17 |
|
U125 |
125×65 |
5.5 |
8.0 |
12.91 |
|
U125 |
125×65 |
6.0 |
8.0 |
13.40 |
|
U150 |
150×75 |
5.5 |
7.3 |
14.66 |
|
U150 |
150×75 |
5.7 |
10.0 |
16.71 |
|
U150 |
150×75 |
6.0 |
10.0 |
17.90 |
|
U150 |
150×75 |
6.5 |
10.0 |
18.60 |
|
U150 |
150×75 |
9.0 |
12.5 |
24.00 |
|
U200 |
200×80 |
7.5 |
11.0 |
24.60 |
|
U200 |
200X90 |
8.0 |
13.5 |
30.30 |
|
U250 |
250×90 |
9.0 |
13.0 |
34.60 |
|
U300 |
300X90 |
9.0 |
13.0 |
38.10 |
For more detailed dimensions, please contact us.
Specifications And Models of GB (U-BEAM)
|
Size |
Specification(mm) |
Theory Weight |
||
|
h |
b |
d |
||
|
5# |
50 |
37 |
4.5 |
5.438 |
|
6.3# |
63 |
40 |
4.8 |
6.634 |
|
6.5# |
65 |
40 |
4.3 |
6.709 |
|
8# |
80 |
43 |
5.0 |
8.045 |
|
10# |
100 |
48 |
5.3 |
10.007 |
|
12# |
120 |
53 |
5.5 |
12.059 |
|
12.6# |
126 |
53 |
5.5 |
12.319 |
|
14#a |
140 |
58 |
6.0 |
14.535 |
|
14#b |
140 |
60 |
8.0 |
16.733 |
|
16#a |
160 |
63 |
6.5 |
17.240 |
|
16#b |
160 |
65 |
8.5 |
19.752 |
|
18#a |
180 |
68 |
7.0 |
20.174 |
|
18#b |
180 |
70 |
9.0 |
23.000 |
|
20#a |
200 |
73 |
7.0 |
22.637 |
|
20#b |
200 |
75 |
9.0 |
25.777 |
|
22#a |
220 |
77 |
7.0 |
24.999 |
|
22#b |
220 |
79 |
9.0 |
28.453 |
|
25#a |
250 |
78 |
7.0 |
27.410 |
|
25#b |
250 |
80 |
9.0 |
31.335 |
|
25#c |
250 |
82 |
11.0 |
35.260 |
|
28#a |
280 |
82 |
7.5 |
31.427 |
|
28#b |
280 |
84 |
9.5 |
35.832 |
|
28#c |
280 |
86 |
11.5 |
40.219 |
|
30#a |
300 |
85 |
7.5 |
34.463 |
|
30#b |
300 |
87 |
9.5 |
39.173 |
|
30#c |
300 |
89 |
11.5 |
43.883 |
|
32#a |
320 |
88 |
8.0 |
38.083 |
|
32#b |
320 |
90 |
10.0 |
43.107 |
|
32#c |
320 |
92 |
12.0 |
48.131 |
|
36#a |
360 |
96 |
9.0 |
47.814 |
|
36#b |
360 |
98 |
11.0 |
53.466 |
|
36#c |
360 |
100 |
13.0 |
59.118 |
|
40#a |
400 |
100 |
10.5 |
58.928 |
|
40#b |
400 |
102 |
12.5 |
65.208 |
|
40#c |
400 |
104 |
14.5 |
71.488 |

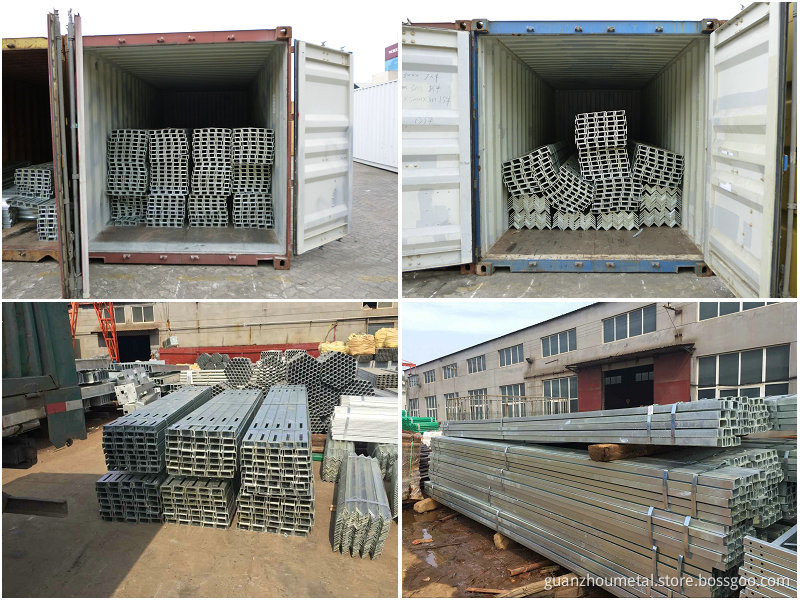

Packaging And Transportation
If you are interested in the product, contact 2bvideo.com for more information for more information
