Description of roller compactor:
Roller compactor is also called dry granulator, it is a kind granulator that can make powder material to granule directly without adding liquid binder, mixing, milling or drying. According to the type of feeding, roller compactor can be divided into vertical feeding and horizontal feeding. Horizontal feeding type roller compactor is advanced in technology, stable in performance and high in granulation rate. The roller compactor produced by our company is horizontal feeding type.

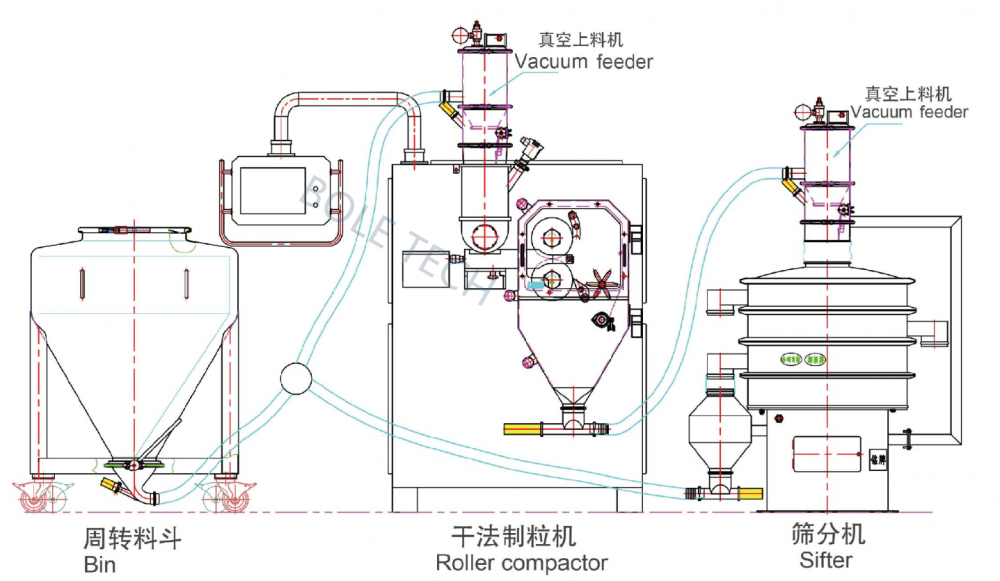

Flow chart of automatic closed dry granulation system
Granules that made by roller compactor
Features of roller compactor:
1. The material is conveyed by horizontal screw conveyor, and the speed of screw conveyor is regulated by inverter, which is convenient for adjusting the feeding amount, the rolling and cooling are even, and the powder is not easy to stick to the rolling.
2. the whole grain is made on the moving trolley, and the pellet is granulated by a specific angle of the knife, which can be easily granulated.
3. feeding, rolling, granules, easy to disassemble and clean, in line with GMP requirements.
4. vacuum degassing device, the efficiency can be increased by 2 to 4 times.
5. It is easy to replace the screen and less heat in the machine cavity. 6, the whole machine is fully enclosed, fully automatic operation, no dust.
6. Widely application. Dry granulator is widely used in pharmaceutical, nutriceutical, food and chemical industries.
Parameters of roller compactor:
Model
Capacity (kg/h)
Installed power (kW)
Overall size (mm)
Size of roller (mm)
LG100
1.5~15
3.72
930*874*1520
Φ100*25
LG100E
12~30
4.62
1100*1205*1820
Φ100*45
LG160
25~55
7.05
1320*1267*1820
Φ160*50
LG200
50~150
11.24
1460*1367*2018
Φ200*75
LG200E
120~250
14.24
1560*1477*2138
Φ200*100
LG240
220~420
15.94
1620*1500*2210
Φ240*100
LG360
32.42350~650
24.55
1950*1960*2700
Φ360*150
LG500
45580~1200
35
2300*2280*3150
Φ500*200
If you are interested in the product, contact 2bvideo.com for more information for more information
