Product details

This is a LED tube emergency kit,is full power output emergency driver is backup power source which includes electronic circuitry to convert energy stored in a backup Li-on battery into DC voltage and current to drive the LED load when AC power fails.The LED emergency driver works in connect with a switched or un-switched AC LED driver to provide code-required emergency lighting.Such a driver typically consists of a rechargeable battery pack, charger and electronic circuitry. The electronic circuitry is designed to sense an absence of AC power and automatically switch into emergency mode, in which the power is delivered through the battery pack, operating the LEDs to support emergency lighting operation for a minimum of 60-180 minutes. Upon restoration of AC power the emergency, the driver circuit will automatically detect the voltage level of the AC input and switch the driver to the charging mode. To achieve optimal lifetime and reliability, it is critical that the charge and discharge cycle are properly managed and the temperature of control gear and batteries in the driver remains within its rating. An illuminated test switch is provided to test and monitor charger and batter performance. Some emergency drivers support dimming functionality for flexible lighting control. An emergency lighting inverter is a DC to AC converting circuit typically used in providing emergency power supply for multiple integral-base LED lamps.

Parameter

Model: EM-40W

Material:Fireproof PC

Power for:3W to 40W（MAX 42W)

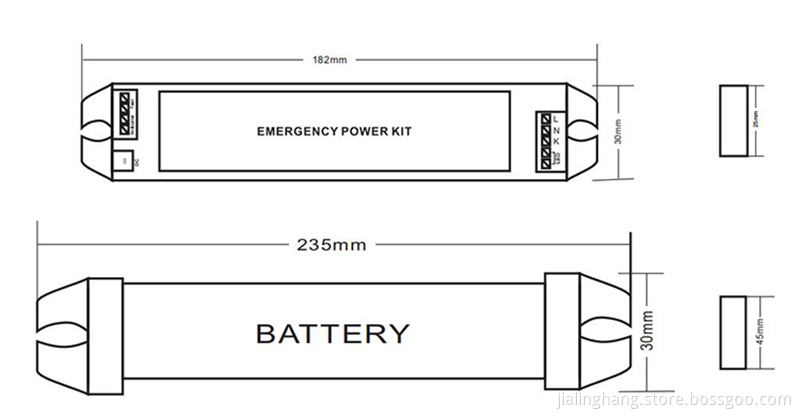

Emergency driver size:182*30*25mm

Battery:li-ion 18650 11.1V 4400mAH

Charging time:24hours

Charging power:5W

Standby power:0.5W

Input voltage:85-265V,output 220V

Emergency Luminous flux:100%

Emergency time:60-300mins

Certificate:CE Rohs

Application

LED tube, LED panel light, led downlight, led tri-proof light,led liner light

Product Packing

Product	QTY/CTN (pcs)	G.W/CTN	DIMENSION	CBM/CTN
LED Emergency driver EM-40W	50 pcs	12 kgs	252615cm	0.01M³
