Product details

Weathering steel, i.e. atmospheric corrosion-resistant steel (Corten Steel), is a series of low-alloy steel between ordinary steel and stainless steel. Weathering steel is made of ordinary carbon steel with a small amount of corrosion-resistant elements such as copper and nickel. It has the characteristics of toughness, plasticity, forming, welding and cutting, abrasion, high temperature and fatigue resistance of high-quality steel. The weathering resistance is 2-8 times of ordinary carbon steel and the coating performance is 1.5-10 times of ordinary carbon steel. At the same time, it has the characteristics of rust resistance, corrosion resistance, life extension, thinning and consumption reduction, labor saving and energy saving. Weathering steel is mainly used in railway, vehicle, bridge, tower, photovoltaic, high-speed engineering and other steel structures exposed to the atmosphere for a long time. It is used to manufacture containers, railway vehicles, oil derricks, seaport buildings, oil production platforms and containers containing hydrogen sulfide corrosive medium in chemical and petroleum equipme.

Product Specification

Type	Corten steel plate/Weather resistant steel plate
Standard	ASTM, AISI, JIS, EN, GB
Material	09CuPCrNi-A, 09CuP, 09CrCuSb, 10CrMoAL, 16CuCr, 12MnCuCr, 15MnCuCr-QT Q235NH, Q295NH, Q295GNH, Q355NH, Q355GNH, Q460NH, Q345GNHL, Q345GNH, Q310GNH, Q345NH, Q500NH, Q235GNH, Q550NH, Q265GNH, Q450NQR1A S355J0W, S355J2WP, S355J2W, S235J0W, CortenA, CortenB,SPA-H, B480GNQR 08Cu, 16MnCu, Q245R\|Q345R(HIC)\(R-HIC) St37-3Cu3, A588M(A,B,C,K), A242MCL.2 SMA400(AW,BW,CW), SMA400(AP,BP,CP), SMA490(AW,BW,CW), SMA490(AP,BP,CP), SMA570W,SMA570P Fe235W, Fe355W, WR50B, WR50C
Thickness	1.0~100mm
Width	100~3000mm (normal size 1250mm, 1500mm, 1800mm, 2200mm, 2400mm, 2500mm)
Length	1000~12000mm(normal size 6000mm, 12000mm)
Technique	Hot/Cold rolled
Packing	Bundle, or with all kinds of colors PVC or as your requirements
MOQ	1 Tons, more quantity price will be lower
Surface Treatment	1.Rusting 2.Anneal 3.Pickling 4.Polished 5.Customer Requirement
Product Application	Boiler Plate, Container Plate, making cold rolled steel, Flange Plate, Building materials, Interior and exterior decoration, Bridge construction
Origin	ShanDong China
Certificates	ISO9001, BV, ISO, MTC
Delivery Time	Usually within 10-45 days after receipt of advance payment

Chemical component of weather resistant steel plate

Material	Grade	Chemical composition,%
Material	Grade	C	Si	Mn	P	S	Cu	Cr	Ni	V
Q235NH	A-E	≤ 0.13	0.10-0.40	0.20-0.60	≤ 0.13	≤ 0.13	0.25-0.55	0.40-0.80	≤ 0.65	/
Q295NH	A-E	≤ 0.15	0.10-0.50	0.60-1.00	≤ 0.13	≤ 0.13	0.25-0.55	0.40-0.80	≤ 0.65	/
Q295GNH	A-E	≤ 0.12	0.10-0.40	0.20-0.50	≤ 0.13	≤ 0.13	0.25-0.55	0.40-0.80	0.25-0.50	/
Q355NH	A-E	≤ 0.16	≤ 0.50	0.50-1.50	≤ 0.13	≤ 0.13	0.25-0.55	0.40-0.80	≤ 0.65	/
Q355GNH	A-E	≤ 0.12	0.20-0.75	≤ 1.00	≤ 0.13	≤ 0.13	0.25-0.55	0.40-0.80	≤ 0.65	/
09CuPCrNi-A	/	≤ 0.12	0.20-0.75	0.20-0.50	0.060-0.12	≤ 0.020	0.25-0.50	0.30-1.25	0.12-0.65	/
09CuPCrNi-B	/	≤ 0.12	0.10-0.40	0.20-0.50	0.060-0.12	≤ 0.020	0.25-0.50	0.30-0.65	0.25-0.50	/
SPA-H	/	0.05-0.12	0.25-0.75	0.20-0.60	0.070-0.12	≤ 0.025	0.25-0.50	0.30-1.25	≤ 0.65	/
Cor-ten A	/	≤ 0.12	0.25-0.75	0.20-0.50	0.07-0.15	0.03	0.25-0.55	0.50-1.25	0.65	/
Cor-ten B	/	≤ 0.16	0.30-0.50	0.80-1.25	0.03	0.03	0.25-0.40	0.40-0.65	0.40	0.02-0.10

Service

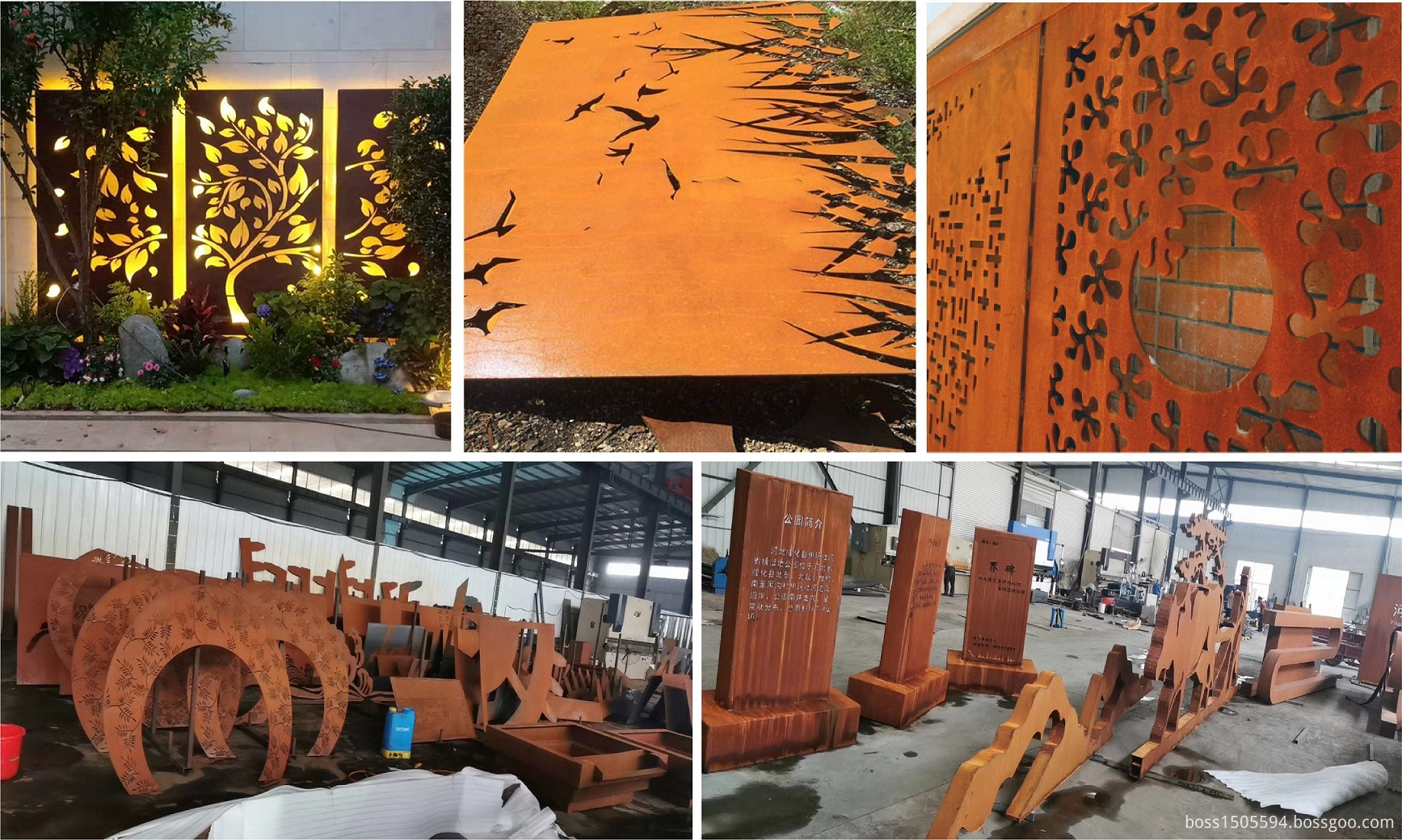

We have our own machining center and we can cut the product for you need. In the application about weather resistant steel plate we used to spray liquid medicine to make the surface rust. After rust-treatment, the surface will change color to yellow and the rust can protect the steel plate. What's more, you can spray another liquid medicine to protect the yellow surface.

Weather resistant steel plate

Appilcation

The weather resistant steel plate can see in our daily life. It can be used in bridge engineering, the floor board, containers,power plant chimneys, raily engineering and other outdoor steel, such as large outdoor sculpture steel.

Weather-resistant steel：This kind of steel has a good resistance to atmospheric corrosion, so it is widely used for producing container, automobile, railway vehicle, truck, oil derrick,seaport building, oil production platform, chemical petroleum equipment, construction buildings etc other industrial facility.

Weather-resistant steel outdoor decoration：Weather-resistant steel plate can be used for outdoor decoration. Outdoor decoration is generally made of rust to make the surface look more distinctive and decorative.

Corten steel plate

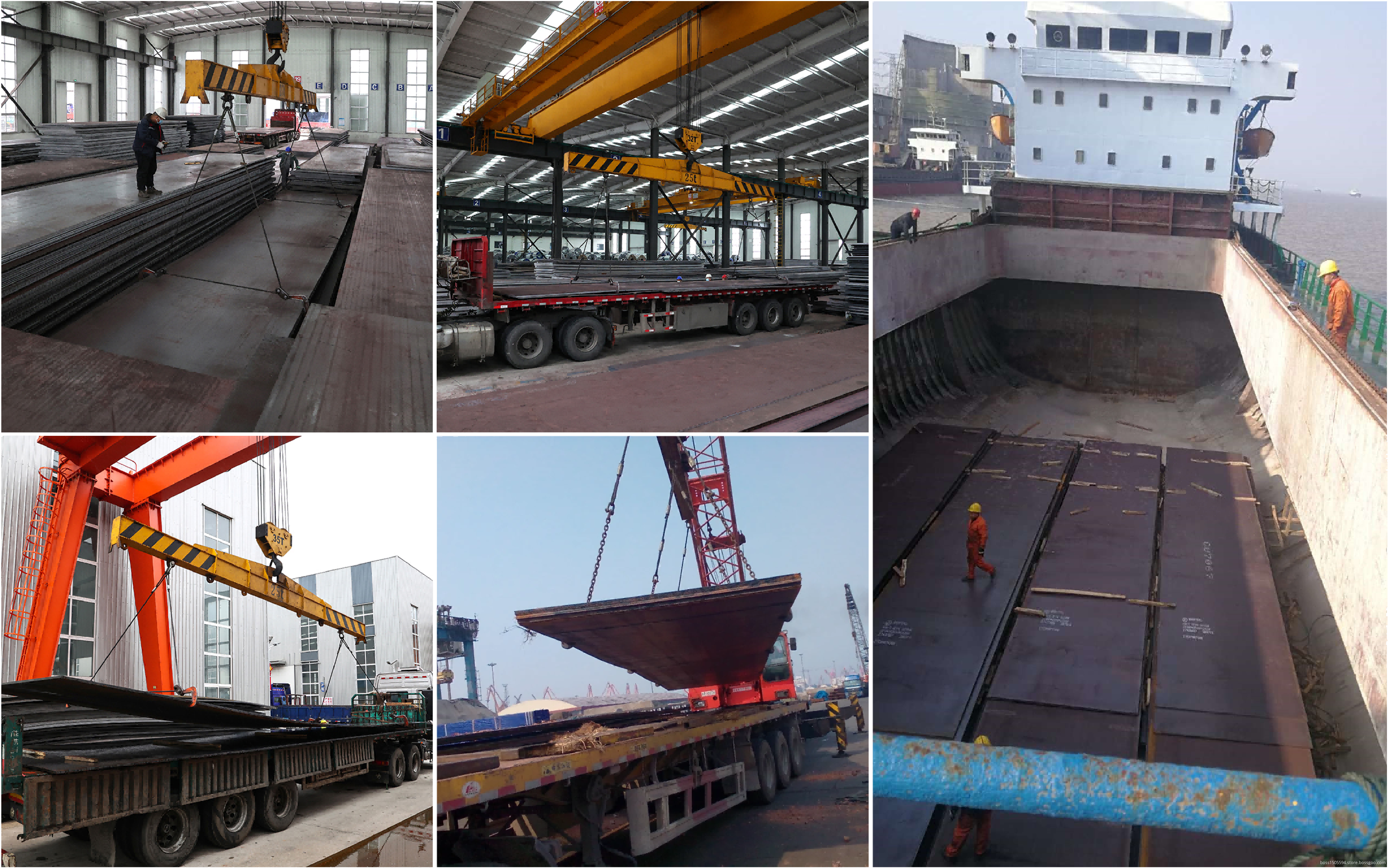

Packing & Loading

Normally packed in bundles with strong metal strips;

Bare or with paper bag , wooden pallet or crate;

If length ≤ 5.8m, loaded in 20' container,

If length ≤ 11.8m, loaded in 40' container,

If length > 11.8m, load on board by bulk FILO Terms.

Packaging And Transportation (3)

If you have any question, please feel free to contact me by the email or telephone!

Mainly products cover Carbon Steel Pipe, Galvanized Steel Pipe, Honed Tube, Oil Pipe, Carbon Steel Plate, Ship Building Plate, Wear Resistant Steel Plate and Pressure Vessel Steel Plate, etc.
