Product details

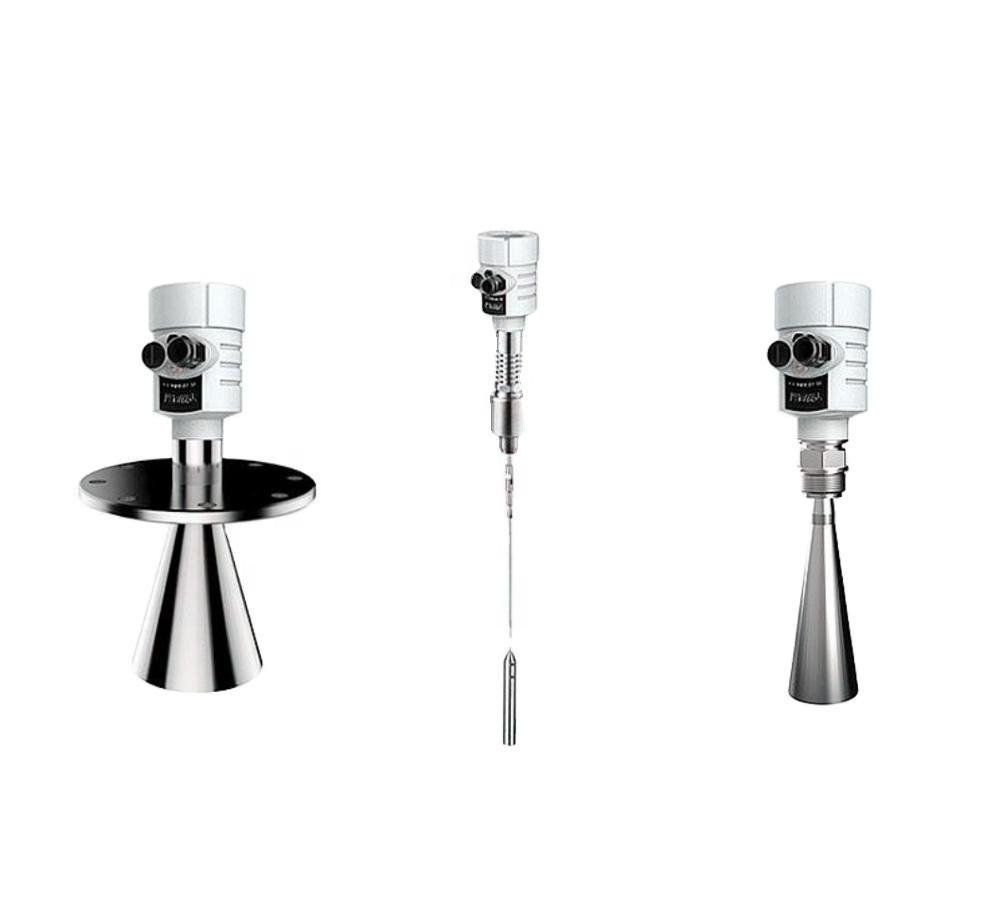

The radar is a 26G high -frequency radar -type object measuring instrument, with a measurement distance of 80 meters. The antenna is further optimized. The new type of fast microprocessor can perform a high -speed signal analysis processing, so that the instrument can be used for the very complex measurement conditions of the reactor or solid warehouse.

The radar antenna launch a narrow microwave high, transmitted down through the antenna, and the microwave contact is reflected back after being exposed to the surface of the measured medium. It is once again received by an antenna system and transmitted it to the electronic line to automatically convert it into a substance signal ( Because the microwave transmission speed is fast, the electromagnetic wave reaches the target and returns to the receiver by reflection and returns to the receiver.

The radar places use a transmitting frequency of up to 26GHz, so it has :

1. Non -contact radar, no wear, no pollution

2. The antenna size is small, easy to install

3. Short wavelength, good reflection on the tilted solid surface

4. Small measuring blind spots, which will also achieve good results for the measurement of small cans

5. Small bundle angle, concentrated energy, enhance the reckless ability, but also help avoid interference

6. It is hardly affected by corrosion, foam

7. It is almost affected by changes in water vapor, temperature and pressure in the atmosphere

8. Severe dust environment will not affect electromagnetic waves

9. High signal -to -noise ratio, even in the case of fluctuations, can get excellent performance

10. High -frequency, is the choice of measuring solid and low -agency constant medium

In addition, our main products are: Electromagnetic flowmeter, Energy meter, Vortex flowmeter, Pressure transmitters, Level gauge, Magnetic flap level gauge.
