Introduction to Electrochromic Glass
Eelectrochromic glass manufacturers have the interesting property of changing their color based on the incidence
of a potential difference. Thus, Privacy Film by modifying the voltage applied to them, it is possible to control their:
1、 degree of transparency and
2、 consequently, the degree of transmission
Certain radiations of the electromagnetic spectrum will have through these materials Switchable Smart Film.
It is in this context that electrochromic glasses emerge, which, with just the push of a button. It provides a control of
the intensities of light and radiation Smart Tint Window Film such as:
1、ultraviolet and
2、infrared transmitted
Electrochromic glass Laminated Glass Switchable Pdlc manufacturers guarantee countless benefits to its users.
Smart transparent film technical diagram

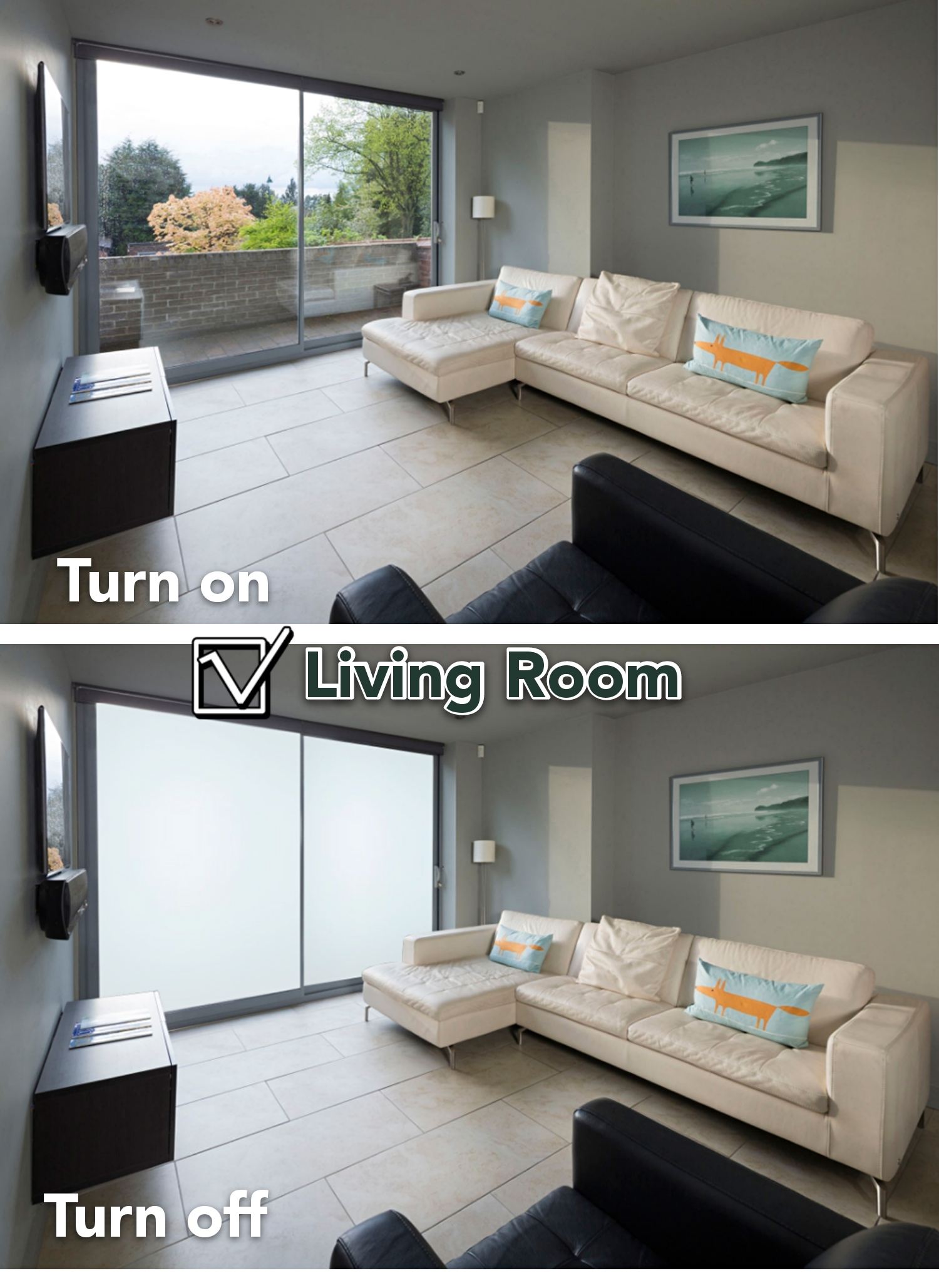

In the natural state,Pdlc Double Glazing Intelligent Glass the liquid crystal molecules inside it are arranged randomly, the refractive
index of liquid crystal is lower than that of the polymer outside, and the incident light scatters in the polymer and is milky white,that is, opaque.After electrification, the droplets in the dispersed liquid crystal polymer are rearranged, and the liquid crystal changes from disorder to directional order, so that the refractive index of the liquid crystal is the same as that of the polymer, and the incident light
can completely pass through, forming a transparent state. Intelligent dimming glass can be based on different occasions, such as
mood, functional requirements can change the mood of the glass in a flash, the function such as demand can change glass appear
a performance in - instantly, truly achieve the "the effect of light with me to move,Pdlc Double Glazing Intelligent Glass it also is the magical thing about this state of the user can conveniently control switch, switch or remote control, slightly press can shape the
privacy, effectively protect the individual privacy space Pdlc Double Glazing Intelligent Glass.
Product Parameters
|
Item |
Mode | Specification | |
| Optical Parameter | Visible Light Transmittance |
Power on |
>83% |
|
Power off |
>53% |
||
|
Parallel Light Tansmittance |
Power on |
75% |
|
|
Power off |
<2% |
||
|
Haze |
Power on |
<4% |
|
|
Power off |
>95% |
||
|
Viewangle |
Power on |
>150° |
|
|
Electrical Parameter |
Operating Voltage |
Power on |
AC48V-65V/ 50Hz |
|
Response Time |
Power off-on |
<200ms |
|
|
Power Dissipation |
Power off-on |
6-8 W/㎡ |
|
|
Size Parameter |
Thickness |
0.38mm |
|
|
Maximum Size |
6000mm*2000mm |
||
|
Operating Parameter |
Operating Temperature |
-30°C-50°C |
|
|
Storage Temperature |
-40°C-70°C |
||
|
Service Times |
Power on |
>12 years |
|
|
Switching Times |
|
>2 millions |
|
Application
Laminated Double Glazed Smart Glass

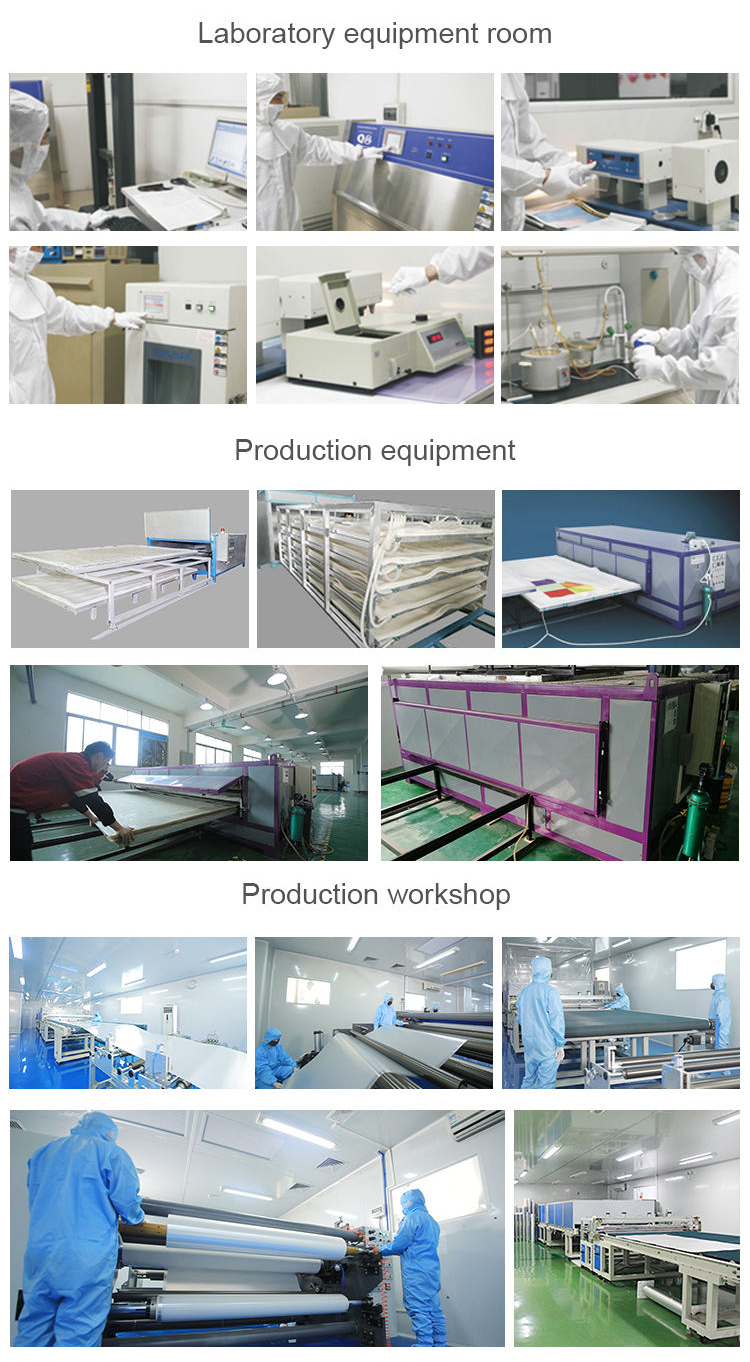

Factory
Certifications
FAQ
1.Does smart film privacy film blocks harmful UV rays?
Yes, it can block over 98% of the harmful UV rays Laminated Double Glazed Smart Glass.
2.Is smart film energy efficient?
Yes, it's a green product that only consumers 6-8 W/㎡. Privacy switchable pdlc smart glass for window.
3.Can customers install smart film by themselves?
Yes, we offer a complete installaion kit if needed， meanwhile，we supply instruction video for customer preview.
4.How can I purchase or get a quote?
Please send inquiries to us. You can also add WhatsApp or Wechat. WeChat/WhatsApp ID: 0086-18927438513
.Privacy switchable pdlc smart glass for window.
5.What is the difference between self-adhesive PDLC film and PDLC film?

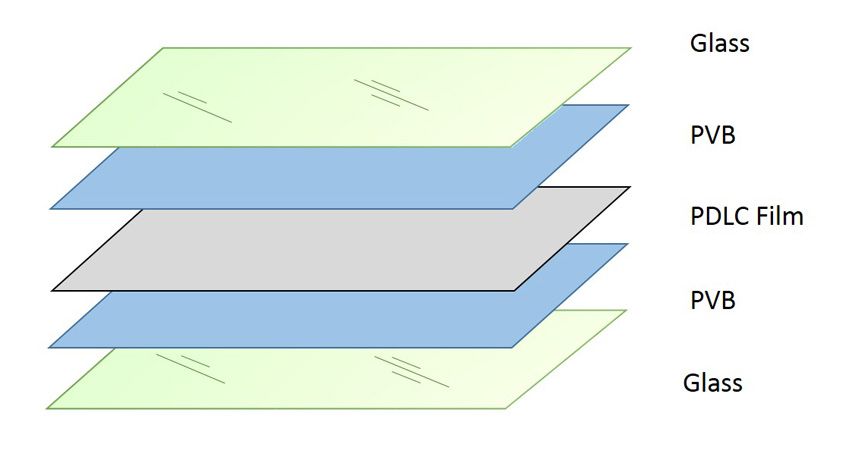

Self-adhesive PDLC film can be pasted on the normal existing flat glass directly. PDLC film is the material which
can be processed to smart PDLC glass. It must be putting into two pieces of glass, by EVA films’ bonding so as to
form a sandwich structure Pdlc Smart Laminated Double Glazing Glass.
6.Do you offer smart glass?
Yes, we customized smart glass according to customers' requirements.
7.Can you project on smart glass?
Yes, smart glass can be used as a rear projection screen Pdlc Smart Glass.
