Product Description
Pdlc Smart Laminated Double Glazing Glass
| Pdlc Double Glazing Intelligent Glass |

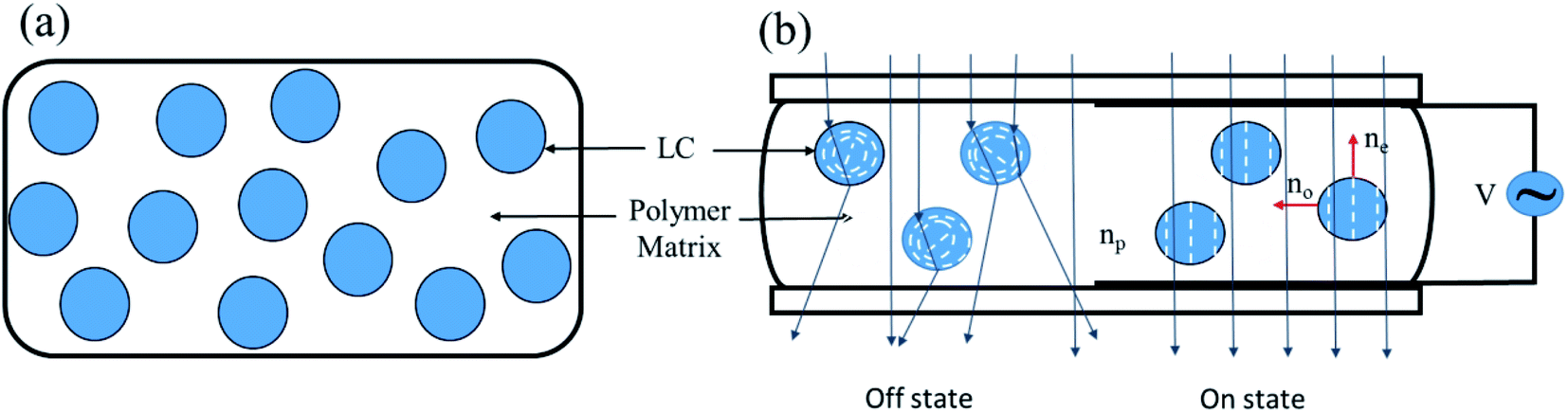

Smart transparent film technical diagram
In the natural state, the liquid crystal molecules inside it are arranged randomly, the refractive index of liquid crystal is lower than that of the polymer outside, and the incident light scatters in the polymer and is milky white, that is, opaque.After electrification, the droplets in the dispersed liquid crystal polymer are rearranged, and the liquid crystal changes from disorder to directional order, so that the refractive index of the liquid crystal is the same as that of the polymer, and the incident light can completely pass through, forming a transparent state. Intelligent dimming glass can be based on different occasions, such as mood, functional requirements can change the mood of the glass in a flash, the function such as demand can change glass appear a performance in - instantly, truly achieve the "the effect of light with me to move, it also is the magical thing about this state of the user can conveniently control switch, switch or remote control, slightly press can shape the privacy, effectively protect the individual privacy space.
Product Parameters
| Double Glazing Intelligent Glass |
| <span font-size:14px;"="" style="color: rgb(0, 0, 0);">Item | <span microsoft="" yahei";="" font-size:="" 16px;"="" font-size:14px;"="" style="color: rgb(0, 0, 0);">Mode | <span microsoft="" yahei";="" font-size:="" 16px;"="" font-size:14px;"="" style="color: rgb(0, 0, 0);">Specification | |
| <span font-size:14px;"="" style="color: rgb(0, 0, 0);">Optical Parameter | <span microsoft="" yahei";="" font-size:="" 14px;"="" font-size:14px;background-color:#ffffff;"="" style="color: rgb(0, 0, 0);">Visible Light Transmittance | <span font-size:14px;background-color:#ffffff;"="" style="color: rgb(0, 0, 0);">Power on | <span font-size:14px;background-color:#ffffff;"="" style="color: rgb(0, 0, 0);">>83% |
| <span font-size:14px;background-color:#ffffff;"="" style="color: rgb(0, 0, 0);">Power off | <span font-size:14px;background-color:#ffffff;"="" style="color: rgb(0, 0, 0);">>53% | ||
| <span microsoft="" yahei";"="" font-size:14px;"="" style="color: rgb(0, 0, 0);">Parallel Light Tansmittance | <span font-size:14px;background-color:#ffffff;"="" style="color: rgb(0, 0, 0);">Power on | <span font-size:14px;background-color:#ffffff;"="" style="color: rgb(0, 0, 0);">75% | |
| <span font-size:14px;background-color:#ffffff;"="" style="color: rgb(0, 0, 0);">Power off | <span font-size:14px;background-color:#ffffff;"="" style="color: rgb(0, 0, 0);"><2% | ||
| <span microsoft="" yahei";"="" font-size:14px;background-color:#ffffff;"="" style="color: rgb(0, 0, 0);">Haze | <span font-size:14px;background-color:#ffffff;"="" style="color: rgb(0, 0, 0);">Power on | <span font-size:14px;background-color:#ffffff;"="" style="color: rgb(0, 0, 0);"><4% | |
| <span font-size:14px;background-color:#ffffff;"="" style="color: rgb(0, 0, 0);">Power off | <span font-size:14px;background-color:#ffffff;"="" style="color: rgb(0, 0, 0);">>95% | ||
| <span font-size:14px;background-color:#ffffff;"="" style="color: rgb(0, 0, 0);">Viewangle | <span font-size:14px;background-color:#ffffff;"="" style="color: rgb(0, 0, 0);">Power on | <span font-size:14px;background-color:#ffffff;"="" style="color: rgb(0, 0, 0);">>150° | |
| <span font-size:14px;background-color:#ffffff;"="" style="color: rgb(0, 0, 0);">Electrical Parameter | <span font-size:14px;background-color:#ffffff;"="" style="color: rgb(0, 0, 0);">Operating Voltage | <span font-size:14px;background-color:#ffffff;"="" style="color: rgb(0, 0, 0);">Power on | <span font-size:14px;background-color:#ffffff;"="" style="color: rgb(0, 0, 0);">AC48V-65V/ 50Hz |
| <span font-size:14px;background-color:#ffffff;"="" style="color: rgb(0, 0, 0);">Response Time | <span font-size:14px;background-color:#ffffff;"="" style="color: rgb(0, 0, 0);">Power off-on | <span font-size:14px;background-color:#ffffff;"="" style="color: rgb(0, 0, 0);"><200ms | |
| <span font-size:14px;background-color:#ffffff;"="" style="color: rgb(0, 0, 0);">Power Dissipation | <span font-size:14px;background-color:#ffffff;"="" style="color: rgb(0, 0, 0);">Power off-on | <span font-size:14px;background-color:#ffffff;"="" style="color: rgb(0, 0, 0);">6-8 W/㎡ | |
| <span font-size:14px;background-color:#ffffff;"="" style="color: rgb(0, 0, 0);">Size Parameter | <span font-size:14px;background-color:#ffffff;"="" style="color: rgb(0, 0, 0);">Thickness | <span font-size:14px;background-color:#ffffff;"="" style="color: rgb(0, 0, 0);">0.38mm | |
| <span font-size:14px;background-color:#ffffff;"="" style="color: rgb(0, 0, 0);">Maximum Size | <span font-size:14px;background-color:#ffffff;"="" style="color: rgb(0, 0, 0);">6000mm*2000mm | ||
| <span font-size:14px;background-color:#ffffff;"="" style="color: rgb(0, 0, 0);">Operating Parameter | <span font-size:14px;background-color:#ffffff;"="" style="color: rgb(0, 0, 0);">Operating Temperature | <span font-size:14px;background-color:#ffffff;"="" style="color: rgb(0, 0, 0);">-30°C-50°C | |
| <span font-size:14px;background-color:#ffffff;"="" style="color: rgb(0, 0, 0);">Storage Temperature | <span font-size:14px;background-color:#ffffff;"="" style="color: rgb(0, 0, 0);">-40°C-70°C | ||
| Service Times | Power on | >12 years | |
| Switching Times | >2 millions | ||

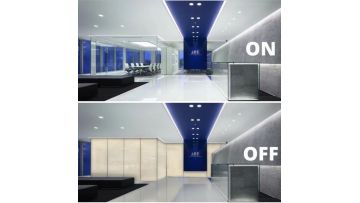

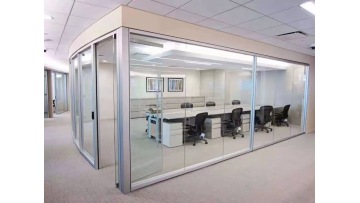

Application
Factory
After sales & clients comments
FAQ
<span font-size:16px;"="" style="color: rgb(0, 0, 0);">1.<span font-size:16px;background-color:#ffffff;"="" style="color: rgb(0, 0, 0); font-size: 16px;">Does smart film privacy film blocks harmful UV rays?
<span font-size:14px;background-color:#ffffff;"="" style="color: rgb(0, 0, 0);">Yes, it can block over 98% of the harmful UV rays.
2.<span font-size:16px;background-color:#ffffff;"="" style="color: rgb(0, 0, 0); font-size: 16px;">Is smart film energy efficient?
<span font-size:14px;background-color:#ffffff;"="" style="color: rgb(0, 0, 0);">Yes, it's a green product that only consumers 6-8 W/㎡.
<span font-size:16px;"="" style="color: rgb(0, 0, 0);">3.<span font-size:16px;background-color:#ffffff;"="" style="font-weight: 700; color: rgb(0, 0, 0); font-size: 16px;">Can customers install smart film by themselves?
<span font-size:14px;background-color:#ffffff;"="" style="color: rgb(0, 0, 0);">Yes, we offer a complete installaion kit if needed， meanwhile，we supply instruction video for customer preview.
<span font-size:16px;"="" style="color: rgb(0, 0, 0);">4.<span font-size:16px;background-color:#ffffff;"="" style="font-weight: 700; color: rgb(0, 0, 0); font-size: 16px;">How can I purchase or get a quote?
<span font-size:14px;background-color:#ffffff;"="" style="color: rgb(0, 0, 0);">Please send inquiries to us. You can also add WhatsApp or Wechat. WeChat/WhatsApp ID: 18928491926
<span font-size:16px;"="" style="color: rgb(0, 0, 0);">5.<span font-size:16px;background-color:#ffffff;"="" style="font-weight: 700; color: rgb(0, 0, 0); font-size: 16px;">What is the difference between self-adhesive PDLC film and PDLC film?
<span font-size:14px;background-color:#ffffff;"="" style="color: rgb(0, 0, 0); font-size: 16px;">Self-adhesive PDLC film can be pasted on the normal existing flat glass directly. PDLC film is the material which can be processed to smart PDLC glass. It must be putting into two pieces of glass, by EVA films’ bonding so as to form a sandwich structure.
<span font-size:16px;"="" style="color: rgb(0, 0, 0);">6.<span font-size:16px;background-color:#ffffff;"="" style="font-weight: 700; color: rgb(0, 0, 0); font-size: 16px;">Do you offer smart glass?
<span font-size:14px;background-color:#ffffff;"="" style="color: rgb(0, 0, 0);">Yes, we customized smart glass according to customers' requirements.
<span font-size:16px;"="" style="color: rgb(0, 0, 0);">7.<span font-size:16px;background-color:#ffffff;"="" style="font-weight: 700; color: rgb(0, 0, 0); font-size: 16px;">Can you project on smart glass?
<span font-size:14px;background-color:#ffffff;"="" style="color: rgb(0, 0, 0); font-size: 16px;">Yes, smart glass can be used as a rear projection screen.
