DIN43650A IP67 Molded Cable Solenoid Valve Coil Connector
BRANDO produces DIN 43650 connectors and other special style connectors. DIN 43650 connectors are commonly used to supply power to solenoid valves, which widely used in Hydraulic, Pneumatic, Electrical Appliance industry, etc.
Features:
1. Wide range of DIN43650 industry standard form A, B, C types, special on request
2. Protection class: IP65, IP67
3. Multiple connector circuits specifications for optional, LED; LED/VDR; Rectifier
4. A variety shell color: black, brown and transparent
Technical Data:
DIN Type
DIN43650A
Contact Spacing
18mm
Number of Poles
2 Poles + Ground, 3 Poles + Ground
Max Current
10A
Contact Resistance
≤5mΩ
Fixing Screw
M3x30mm
Max Conductor Size
3x1.5mm²
Protection Class
IP67
Working Voltage
AC, DC
Cable Length
1 meter (can be customized)

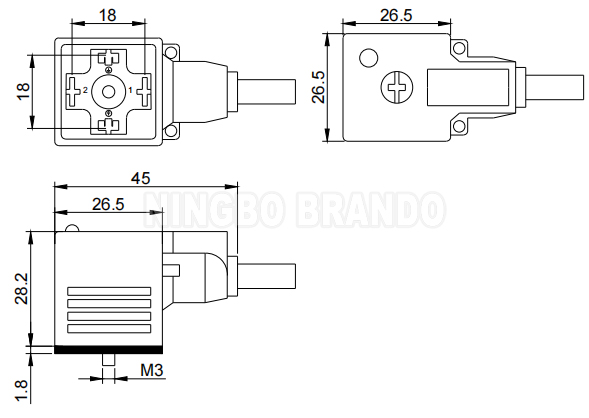

Main Dimension:
More DIN43650 Connectors:
 |
 |
 |
| DIN43650A | DIN43650B | DIN43650C |
 |
 |
 |
| Waterproof | With Cable | Others |
Related Products:
 |
 |
 |
 |
| Solenoid Valve Coil | Solenoid Valve Armature | Solenoid Valve Timer | Solenoid Valve |
Focus on your demands, Offer you best solution:
√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing
Welcome to your any question and inquiry!
