Product details

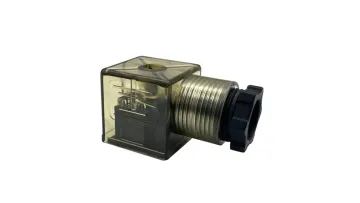

DIN 43650 Type C Solenoid Valve Coil Connector


DIN 43650 solenoid connectors are durable valve connectors used across a wide range of industrial applications. They're not affected by voltage surges or electro-magnetic interference.

DIN 43650 solenoid connectors are available in three formats: Form A, Form B or Form C. They're made to function within certain voltage limits. There are also three gasket options available for DIN connectors: NBR Profile, NBR Flat or EPDM Flat, each with different characteristics. While NBR rubber is an oil-resistant material, EPDM rubber isn't as resilient against oils but can cope better with ozone, heat and adverse weather conditions. Male and female solenoid connectors are available and they're designed with different enclosure locks to choose from.


Technical Data of DIN43650C Solenoid Valve Connector:

DIN 43650 Type
DIN 43650 Form C
Termination Method
Screw
Contact Spacing
9.4mm
Number of Poles
2 Poles + Ground, 3 Poles + Ground
Current Rating
10A
Contact Resistance
≤5mΩ
Fixing Screw
 M3x25mm
Max Conductor Size
3x0.75mm²
Gasket
NBR
Protection Class
IP65
Working Voltage
AC380V, AC220V, AC110V, AC24V, DC24V, DC12V

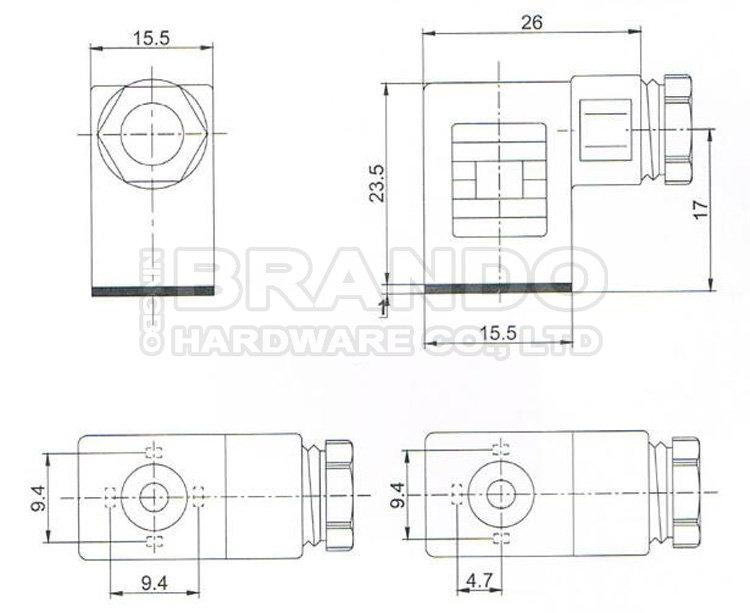

Dimension of DIN43650C Solenoid Coil Connector:

DIN43650C

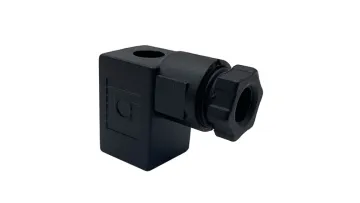

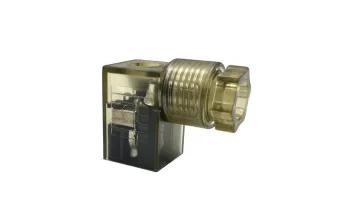

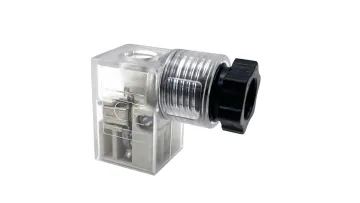

More Solenoid Valve Coil Connectors for you to choose:

a1
a2
a3
DIN43650A DIN43650B DIN43650C


burkert
Waterproof With Cable
Other

More Solenoid Valve Coils for you to choose:


IMG_20210910_130238


Pneumatic Solenoid Valve Coil Dust Collecotor Pulse Valve Solenoid Coil Water Solenoid Valve Coil Hydraulic Solenoid Coil
