ASCO Type C113685 Diaphragm Repair Kit SCG353A050 SCG353A051
The following is C113685 / C113686 diaphragm repair kit for ASCO 2'' SCG353A050, 2 1/2'' SCG353A051 diaphragm valves. The repair kit comes with 1 nitrile main diaphragm, 1 secondary diaphragm and 1 stainless steel spring to help replace SCG353A050, SCG353A051 valves.
C113685, C113686, C113-685, C113-686 Diaphragm (Membrane) for ASCO pulse valve SCG353A050, SCG353A051; NBR material is standard, working temperature range is -5 to +80 ℃; VITON material is optional, for high temperature, working temperature range is -10 to +120 ℃. Pulse jet valves are indirect operated solenoid valves especially designed for dust collector systems. When the solenoid is energized, trapped air above a diaphragm is quickly exhausted causing a high pressure difference across the diaphragm. Thereby the diaphragm is suddenly opened. When the solenoid is de-energized, air escapes through a hole to the chamber above the diaphragm which balances the pressure and instantly closes the valve.

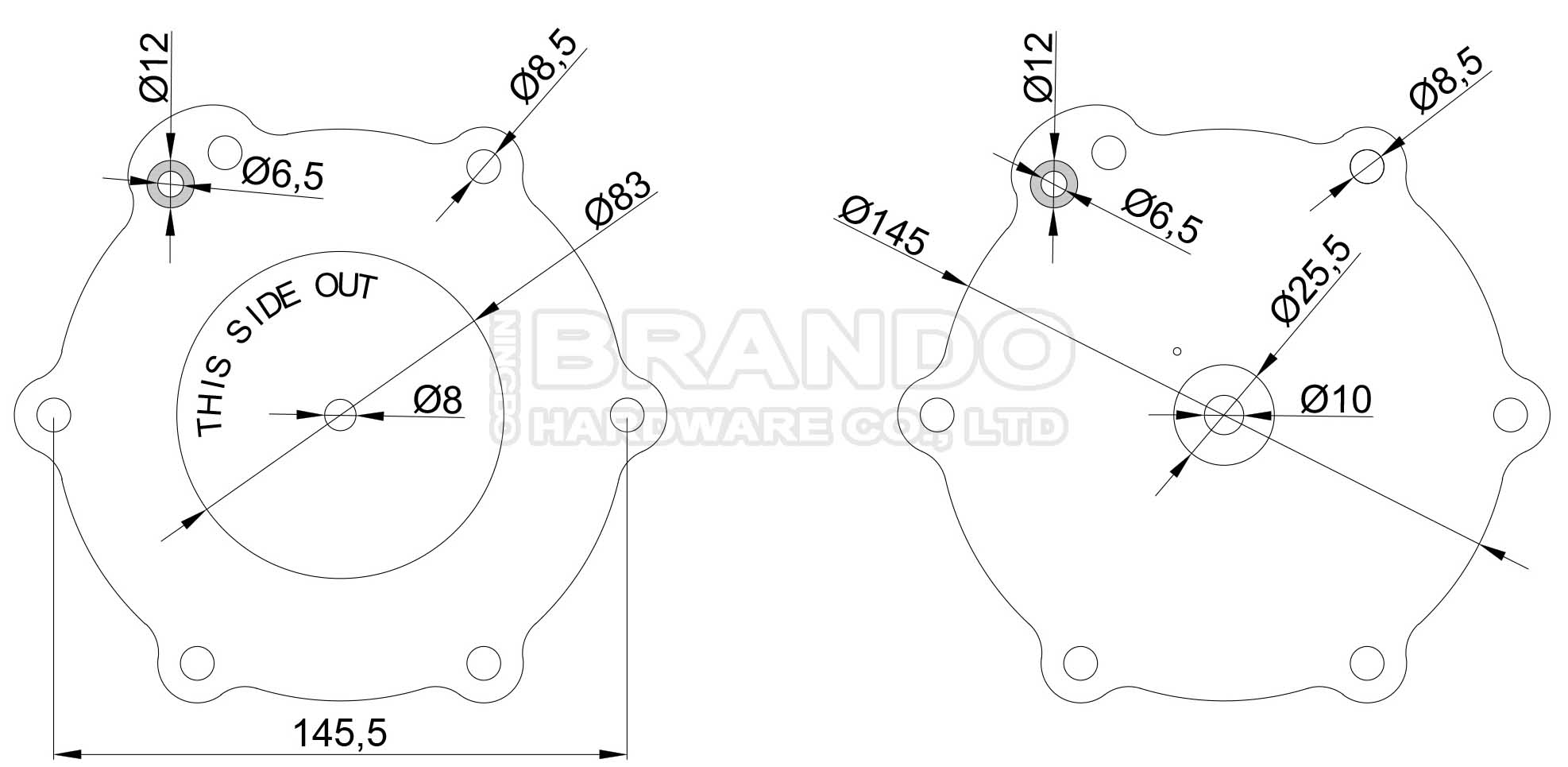

Main Dimension of C113685, C113686 Pulse Valve Diaphragm:
Ordering Code of Diaphragm For ASCO Pulse Valve:
|
Valve Port Size
|
Pulse Valve Model
|
Diaphragm Model
|
Diaphragm Material
(FKM is also available)
|
|
3/4''
|
SCG353A043
|
C113444
|
TPE (White), NBR (Black)
|
|
1''
|
SCG353A044
|
||
|
3/4''
|
SCG353-052
|
||
|
1''
|
SCG353-053
|
||
|
3/4''
|
SGG353A043
|
||
|
1''
|
SGG353A044
|
||
|
3/4''
|
SGG353-052
|
||
|
1''
|
SGG353-053
|
||
|
1 1/2''
|
SCG353A047
|
C113827
|
NBR
|
|
SGG353A065
|
|||
|
2''
|
SCG353A050
|
C113685, C113686
|
NBR
|
|
2 1/2''
|
SCG353A051
|
||
|
3''
|
SCXE353.060
|
C123432, C123433
|
NBR
|
|
SCG353D060
|
|||
|
3/4''
|
G3530A41
|
C113443
|
NBR
|
|
1''
|
G353A042
|
||
|
3/4''
|
G353-055
|
||
|
1''
|
G353-056
|
||
|
1 1/2''
|
G353A045
|
C113825
|
NBR
|
|
G353-066
|
|||
|
1 1/2''
|
G353A046
|
C113826
|
NBR
|
|
G353A063
|
|||
|
2''
|
G353A048
|
C113684
|
NBR
|
|
2 1/2''
|
G353A049
|
Pictures of Pulse Valve Membrane Production:
More ASCO Type Pulse Jet Valve for you to choose:
|
|
|
|
| Threaded Type | Remote Pilot Type | Straight Through Type | Submerged Type |
|
|
|
|
|
Valve Diaphragm |
Solenoid Valve Coil | Solenoid Armature | Pulse Controller |
