Product details

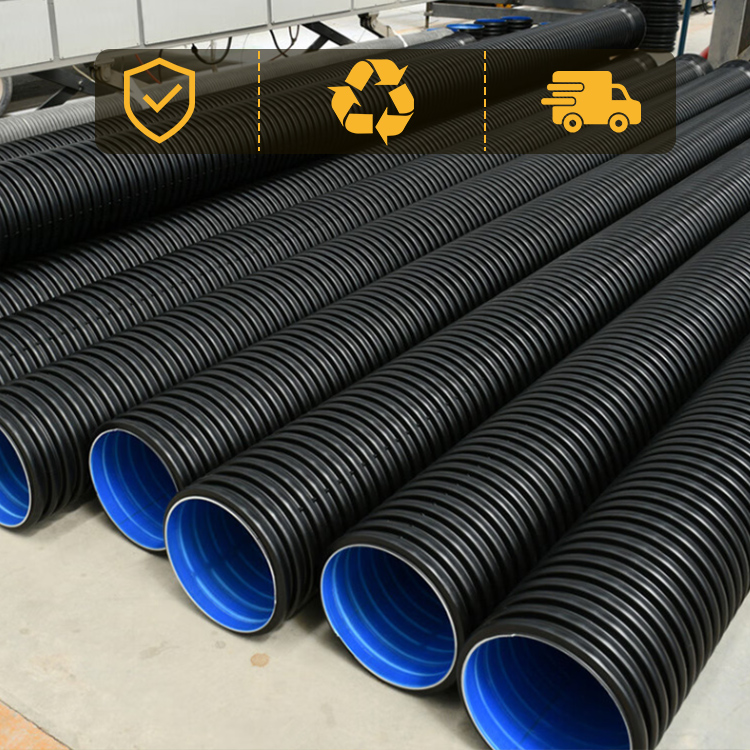

HDPE double wall corrugated pipes, referred to as PE corrugated pipes, is a new type of light pipe with high density polyethylene as raw material, double wall corrugated Hdpe water pipe with the characteristics of light weight, high pressure resistance, good toughness, fast construction, long life and so on, its excellent pipe wall structure design, compared with other structural pipe, the cost is greatly reduced. And because of the convenient and reliable connection, it is widely used at home and abroad. Large replacement of concrete pipes and cast iron pipes.

Application scope

1. Municipal drainage and sewage pipeline system engineering;
2. Underground drainage and sewage discharge in apartments and residential communities;
3. Pre embedded pipelines on highways and underground seepage pipe networks for golf courses;
4. Irrigation and drainage projects for farmland;
5. Used for fluid transportation and ventilation in chemical and mining industries;
6. Protective sleeves for underground pipelines and communication cables.

Installation instructions

1. The installation of double wall corrugated Hdpe Pipe Fittings must be carried out by personnel with professional qualifications.
2. When handling materials, throwing, dropping, rolling, and dragging are strictly prohibited to avoid damaging the pipeline Check both ends of the connecting pipeline If there is any damage, please cut off the damaged part.
3. Hot melt connection of hdpe pipe and fittings The welding temperature should be set at 260 ± 10 If there is any discoloration, decomposition, combustion, smoke or other adverse effects, please replace the welding machine.
4. Although threaded fittings are connected to other parts, they must not be tightened too tightly to avoid damaging the threaded fittings.
5. Please strictly follow the arrangement and business standards of double wall corrugated HDPE pipe to ensure quality
After installation is completed, a water pressure test must be carried out to confirm that there are no leaks, and then the pipe passage can be closed or filled The test pressure should be 1.5 times the design pressure The recommended test pressure is 10kg/cm2 (megapascals) -15 kg/cm2 (pressure 1.5MPa).
7. Although transitional connections with water heaters, ppr pipe,metal pipes or pvc pipe connections are acceptable, and their length should not be less than 300mm.
8. Outdoor pipelines should be considered to have insulation, sun protection, and anti freezing measures.
9. In winter, when the temperature approaches 5, accidental damage to pipes and fittings can be prevented during transportation and construction After completing the pressure test, discharge the water For long-term winter shutdown periods, there are no reliable insulation measures in place to prevent water discharge from the pipeline from cracking.
10. When carrying out waterproofing work, do not apply paint, asphalt, and other contaminated materials on the surface of the hdpe water pipe to avoid odor water.
Hdpe Double Wall Corrugated Pipes
