Product details

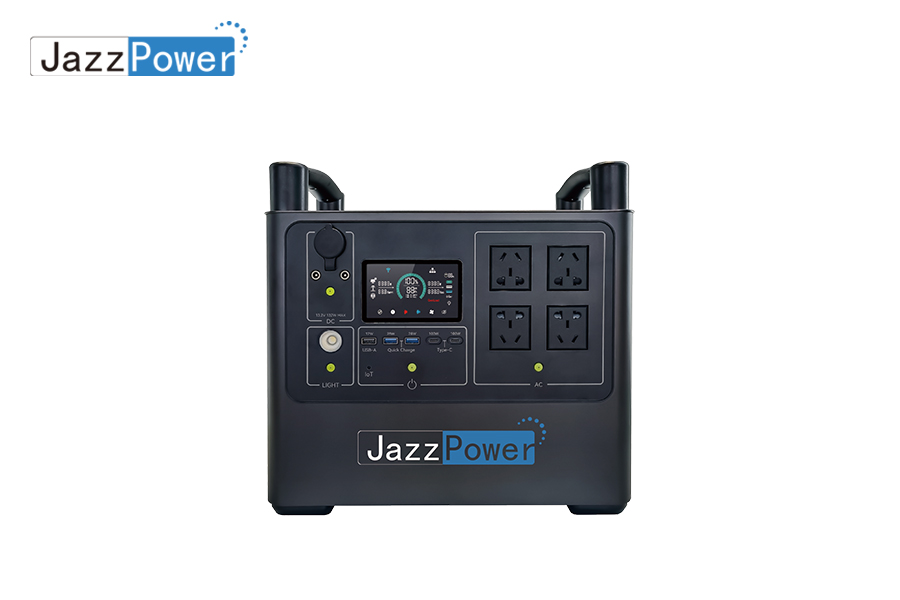

The Jazz2000 portable energy storage system is suitable for a variety of environments and situations, whether it is outdoor adventure, emergency backup power, or home and commercial use, providing a stable power supply. Its versatile output port enables it to charge a variety of devices, including smartphones, tablets, laptops, and even small household appliances.

Jazz2000 is very easy to use. With a simple operation, you can charge the system or draw power from it. Its intuitive display provides real-time information on power, output status and estimated time of use, giving users a clear view of power management.

TAG: Commercial ESS, Residential ESS, EV Chargers, EV Chargers For Business(AC)

Model	Jazz600	Jazz1000	Jazz2000	Jazz2000Pro
Capacity	672Wh,22.4V,30Ah	1008Wh,22.4V,45Ah	1440Wh,48V,30Ah	1920Wh,48V,40Ah
Maximum total output power	750W	1200W	2000W	2000W
UPS-A Output (X1)	5V﹦2.4A,12W	5V﹦2.4A,12W	5V﹦2.4A,12W	5V﹦2.4A,12W
Weight	9.5kg	11.1kg	17.2kg	20.5kg
UPS-A QC Output (X2)	5V/3A，9V/2A，12V/1.5A，18W，36W	5V/3A，9V/2A，12V/1.5A，18W，36W	(5V/9V/12V)﹦2.4A，28W，56W	(5V/9V/12V)﹦2.4A，28W，56W
UPS-C QC Output (X2)	(5V/9V/12V)﹦3A，20V/5A，100W,200W	(5V/9V/12V)﹦3A，20V/5A，100W,200W	(5V/9V/12V)﹦3A，20V/5A，100W,200W	(5V/9V/12V)﹦3A，20V/5A，100W,200W
AC Output (X2)	230Vac/50Hz,Total: 600W	230Vac/50Hz,Total: 1000W	230Vac/50Hz,Total: 2000W	230Vac/50Hz,Total: 2000W
DC output	13.2V﹦10A Dc Power Outlet /5525（X2） Total power：132W	13.2V﹦10A Dc Power Outlet /5525（X2） Total power：132W	13.2V﹦10A Dc Power Outlet /5525（X2） Total power：132W	13.2V﹦10A Dc Power Outlet /5525（X2） Total power：132W
Ac charge input	180~270Vac,50Hz,480Wmax	180~270Vac,50Hz,800Wmax	180~270Vac,60Hz,1200Wmax	180~270Vac,50Hz,1500Wmax
PV charging input	10~30Vdc,10A,200Wmax	10~30Vdc,10A,200Wmax	10~50Vdc,10A,500Wmax	10~50Vdc,10A,500Wmax
DC charge input	12~24Vdc,10A,200Wmax	12~24Vdc,10A,200Wmax	12~24Vdc,10A,240Wmax	12~24Vdc,10A,240Wmax
Discharge temperature range	-15~40°C	-15~40°C（5~104°F）	-15~40°C（5~104°F）	-15~40°C（5~104°F）
Charging temperature range	0~40°C	0~40°C（32~104°F）	0~40°C（32~104°F）	0~40°C（32~104°F）
Heat dissipation mode	Intelligent air cooling	Intelligent air cooling	Intelligent air cooling	Intelligent air cooling
Size	356240358mm
Optional	3 years /5 years
