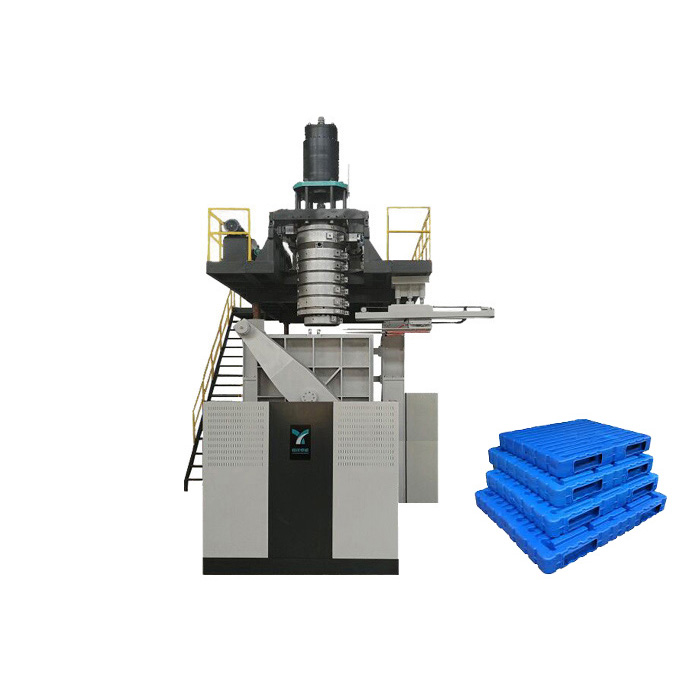

Pallet blow molding machine

8 month ago
25 0
Product details

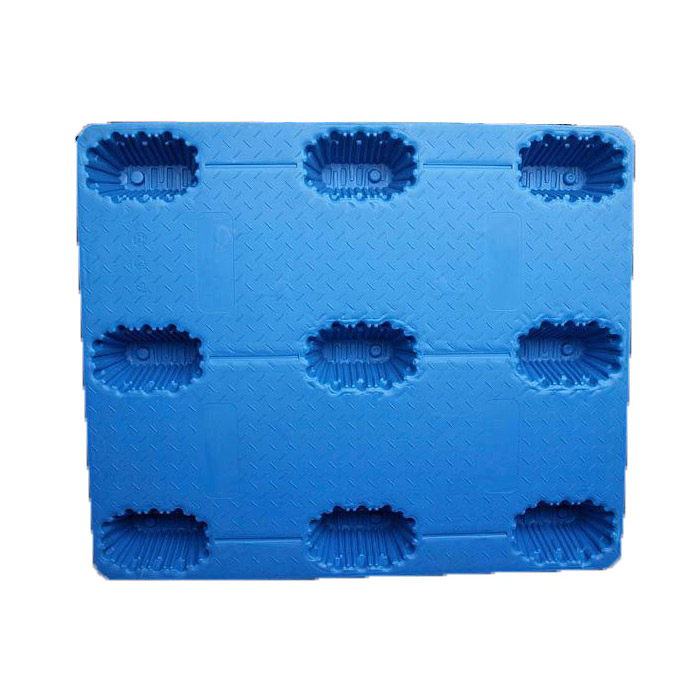

his is a plastic pallet blow molding machine that produces double-layer pallets.ensuring that the product is fully formed, and the internal quality and performance are stable. Injection molded pallets can be used in various environments and industries such as flat warehouses, three-dimensional warehouses, cold storage, food, chemicals, auto parts, etc. to meet the needs of different industries. At present, the use of hollow blow molded pallets has greatly improved the operating efficiency of enterprises and saved their operating costs. The reuse rate and environmental protection characteristics of hollow blow molded pallets have shown its importance to logistics, warehousing and transportation.The product structure is reasonably designed, does not support combustion and conduct electricity, does not generate static electricity, has no burrs or flash, and does not have any assembly parts. It will not damage the goods carried or harm the operator.Blow Molding Machine.Blow Molding Molds.Water Tank Blow Molding Machine



Customised plastic blow mould packaging pallet making machine automatic pallet making machine pallet production line3Customised plastic blow mould packaging pallet making machine automatic pallet making machine pallet production line5

Model
YY-1416P-2
Machine dimension(LxWxH)
12*5.5*7m
Average power consumption
259kw
Total power
398kw
Die-header

accumulator size
60kg
Heating power
60kg
Extrusion system

Plasticizing capacity
450kg/h
Heating power
72kw
Mold clamping umit

Clamping platem size
1800*2000*60mm
Max mold size
1600*1800mm
Clamping force
1200kn
Hydraulic system

Main oil pump power
45kw
Small oil pump power
7.5kw
Oil tank capacity
1200L





123














Contact Now

If you are interested in the product, contact 2bvideo.com for more information for more information

To:
Weifang Yuyang plastic machinery co,.ltd,
Message:
Submit
Disclaimer:

The information of 2bvideo.com limited shown above is provided by the user or collected on the network. Video 2B does not guarantee the authenticity,accuracy and legitimacy of 2bvideo.com limited information. Video 2B does not involve legal relationships and disputes between users arising from transactions other than secured transactions on this website. Disputes shall be settled by you through negotiation. If you are the person in charge or relevant employee of this enterprise, if you find that the enterprise information is incorrect or want to manage thiscompany, please contact us jacklee1558@gmail.com, after you claim the enterprise, you can obtain management permission, publish supplyand demand information, bring consulting orders, and remove page advertisements.

Audited supplier
4 year
Address: Weifang, China


Main Product: Blow Molding Machine, Blow Molding Molds, Water Tank Blow Molding Machine, 55 gallon Blow Molding Machine, IBC tank Blow Molding Machine, YuyangIknow
