Industrial Universal Lab Hot Air Oven Fan,Hot Air Drying Oven for de-watering vegetable,CT-C RESIN Series Hot Air Circulating Oven,CT-C-I Hot Air Circulating Drying Oven,Thermostatic Fruit Drying Oven Functio,CT-C Series Hot Air Circulating Drying Oven
Applications

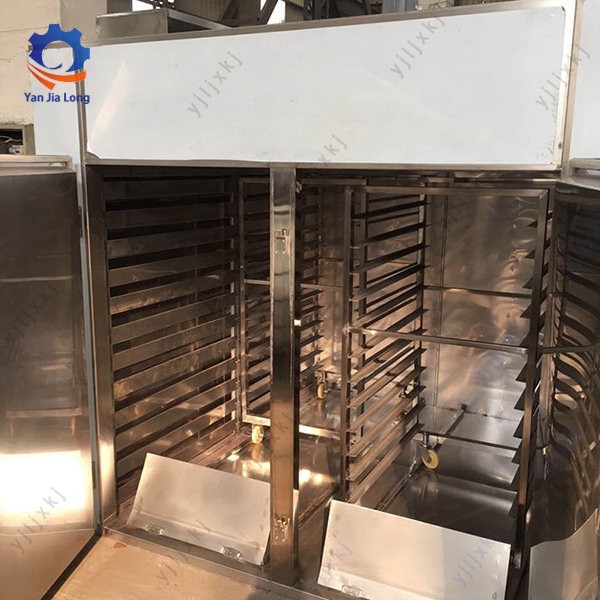

Our CT-C hot air circulating oven is an industrial dryer which is extensively used for thermosetting and drying operations in the pharmaceutical, chemical, food, light industry, heavy industry, and other industries. Some of the materials and products that are usually dried by it include raw material medicine, crude drug, traditional Chinese medicine, powder, particle, pigment, dyestuff, dehydrated vegetable, dried fruit, sausage, plastic resin, electric elements, baking finish, etc.
Features
CT-C hot air circulating oven is suitable for various kinds of materials
Most hot air is circulated inside the oven, resulting in high thermal
efficiency
Wide selection of heat source, including steam, heat conduction oil,
electricity, hot water, far infrared
Wide temperature range, from atmospheric temperature to 350℃
Low noise, automatic temperature control, smooth operation, easy installation,
simple maintenance
Technical Specifications
|
Model |
CT-C-O |
CT-C-I |
CT-C-II |
CT-C-IIA |
CT-C-III |
CT-C- IIIA |
CT-C-IV |
|
Dried weight per lot(kg/lot) |
60 |
120 |
240 |
240 |
360 |
360 |
480 |
|
Evaporation area(m2) |
7.1 |
14.1 |
28.3 |
28.3 |
42.4 |
42.4 |
56.5 |
|
Radiator area(m2) |
15 |
24 |
48 |
48 |
72 |
72 |
96 |
|
Steam consumption(kg/h) |
15 |
20 |
40 |
40 |
60 |
60 |
80 |
|
Electric heating power(kw) |
6-9 |
15 |
30 |
30 |
45 |
45 |
60 |
|
Fan flow(m2/h) |
3450 |
3450 |
6900 |
6900 |
10350 |
10350 |
13800 |
|
Fan power(kw) |
0.45 |
0.45 |
0.45×2 |
0.45×2 |
0.45×3 |
0.45×3 |
0.45×4 |
|
Temp. tolerance inside oven(℃ ) |
±1 |
±2 |
±2 |
±2 |
±2 |
±2 |
±2 |
|
Outline dimensions(mm) (W×D×H) |
1400×1200×2000 |
2300×1200×2000 |
2300×2200×2000 |
4280×1200×2270 |
2260×3200×2000 |
3240×2200×2000 |
4280×2200×2270 |
|
Auxiliary drying cart(set) |
1 |
2 |
4 |
4 |
6 |
6 |
8 |
|
Auxiliary drying tray (pcs) |
24 |
48 |
96 |
96 |
144 |
144 |
192 |
|
Total weight(kg) |
820 |
1580 |
1800 |
1880 |
2100 |
2210 |
2800 |
If you are interested in the product, contact 2bvideo.com for more information for more information
