Product details

The fuselage of this Industrial Computer adopts aluminum alloy sealing process, which is dust-proof, moisture-proof, pressure-resistant, anti-interference, and can easily cope with various industrial harsh places. As an embedded industrial mini computer, it adopts fanless cooling system, no noise and can work 24 hours a day. This dual-LAN Mini PC computer is compatible with windows7/10/11, linux and other operating systems, not only can be used in the industrial field, but also can be used as a Mini Desktop computer to replace ordinary computers, suitable for multimedia education, gate access control system and other places.

Product details

CUP: Intel Celeron 3855U Processor, max up to 8GB, 2 Core 2 threads

Intel Core i5-6300U/i5-7200U/i7-7500U Processor, max up to 32GB, 2 Core 4 threads

GPU: Celeron 3855U/Core i5-6300/i5-7200/i7-7500: Intel HD Graphics 510/520/620/620

Dual display: VGA + HDMI,Support for Synchronous or Asynchronous Display

Memory: Intel Core i5-6300U/i5-7300U/i7-7500U Processor: 1*DDR4 SODIMM x1，Max support to 32GB；Intel Celeron 3855U Processor: 1*DDR3 SODIMM, Max Up To 8GB

Hard Disk: Support 1x MSATA 1x SATA 2.5inch

Port: 2*USB3.0, 4*USB2.0, Built-in 2*USB2.0 header; 1*HDMI1.4, Max 4096*2304@24Hz; 1*VGA 1920*1080 Built in LVDS header; 6*COM（COM1: TTL/232, COM2:RS232/485); 1*Power Button; 1*DC-IN, support DC 12-24V input

Audio: 1*AUD Realtek ALC269 Chipset

Extension: 1*mPCIE support Wifi/BT/4G module, 1*SIM slot

Power Requirement: DC12V-5A Power adapter

OS: Support Windows10/11, LINUX

Cooling: Fanless passive cooling

Dimensions: 235 * 137* 52mm; Weight: 1.25kg

Working Environment: Operating Temperature -10℃ to +60℃, Storage Temperature -25℃ to +75℃, Relative Humidity 5%-95% (non-condensing)

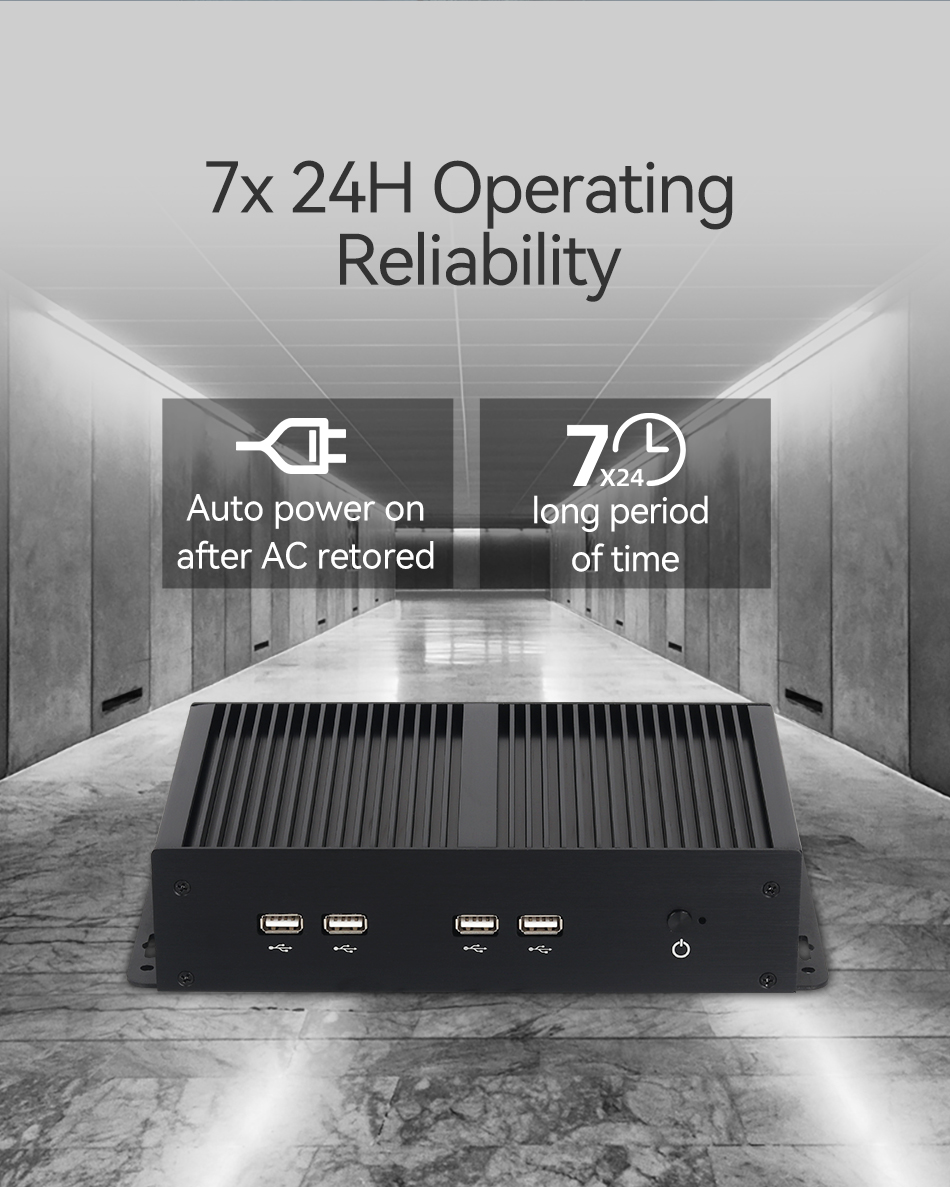

This Mini Computer has dual Gigabit LAN ports for faster transmission speed. And it can support 7x24 hours stable operation of the computer, with better stability.

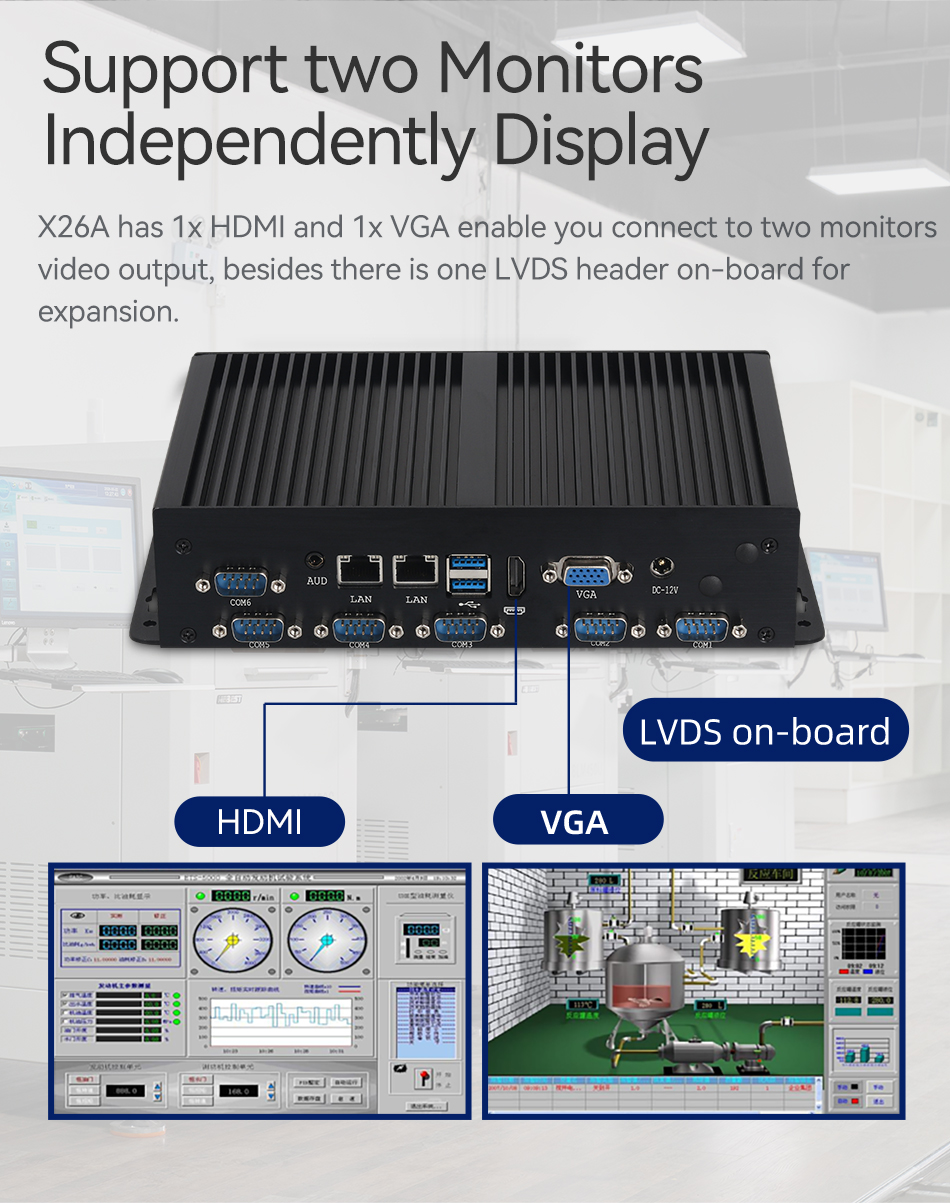

As an industrial mini computer, it is equipped with HDMI and VGA ports for synchronous or asynchronous display of multiple screens. In addition, there is also a built-in LVDS header on-board for expansion.

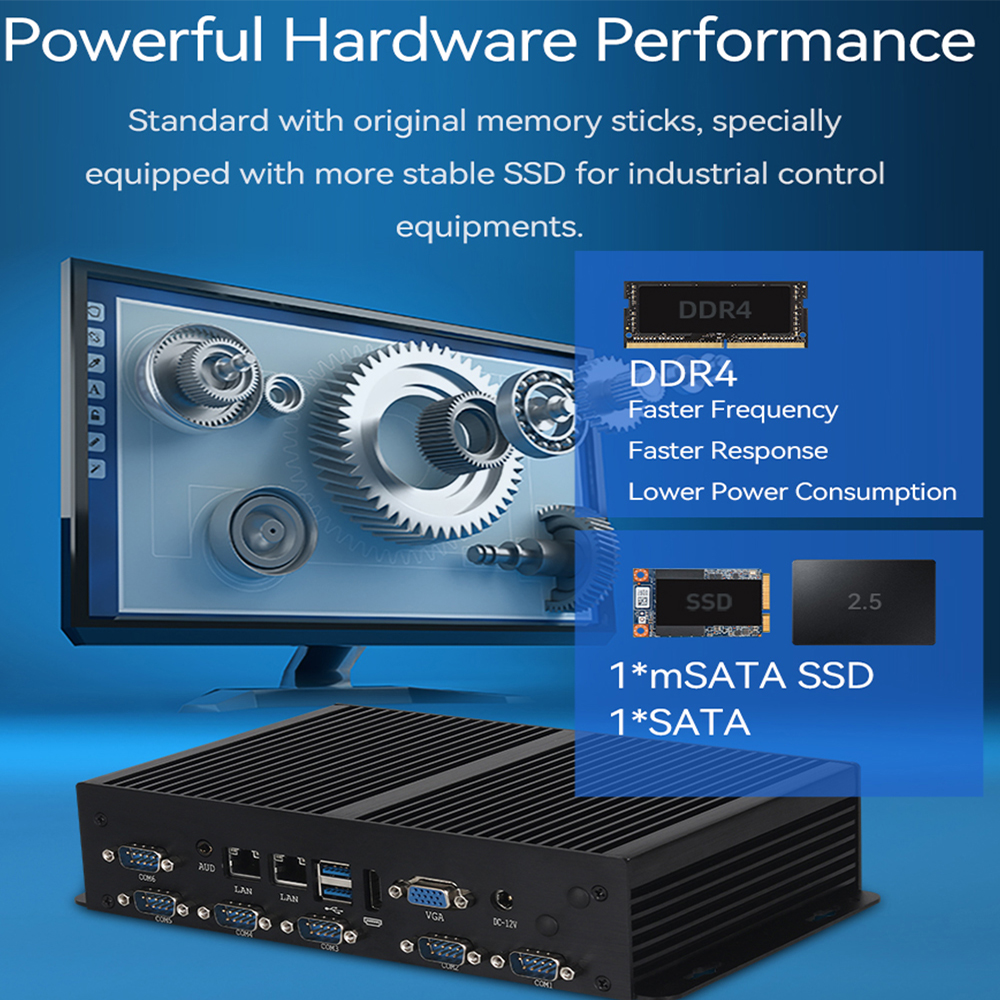

This mini PC turn for industrial control devices is equipped with a more stable MSATA SSD, which greatly improves the performance of the hardware. Intel Core i5-6300U/i5-7300U/i7-7500U Processor also equipped with a DDR4 RAM(max up to 32GB) and Intel Celeron 3855U Processor equipped with a DDR3 RAM(max up to 8GB), which reduces power consumption and increases frequency and response speed.

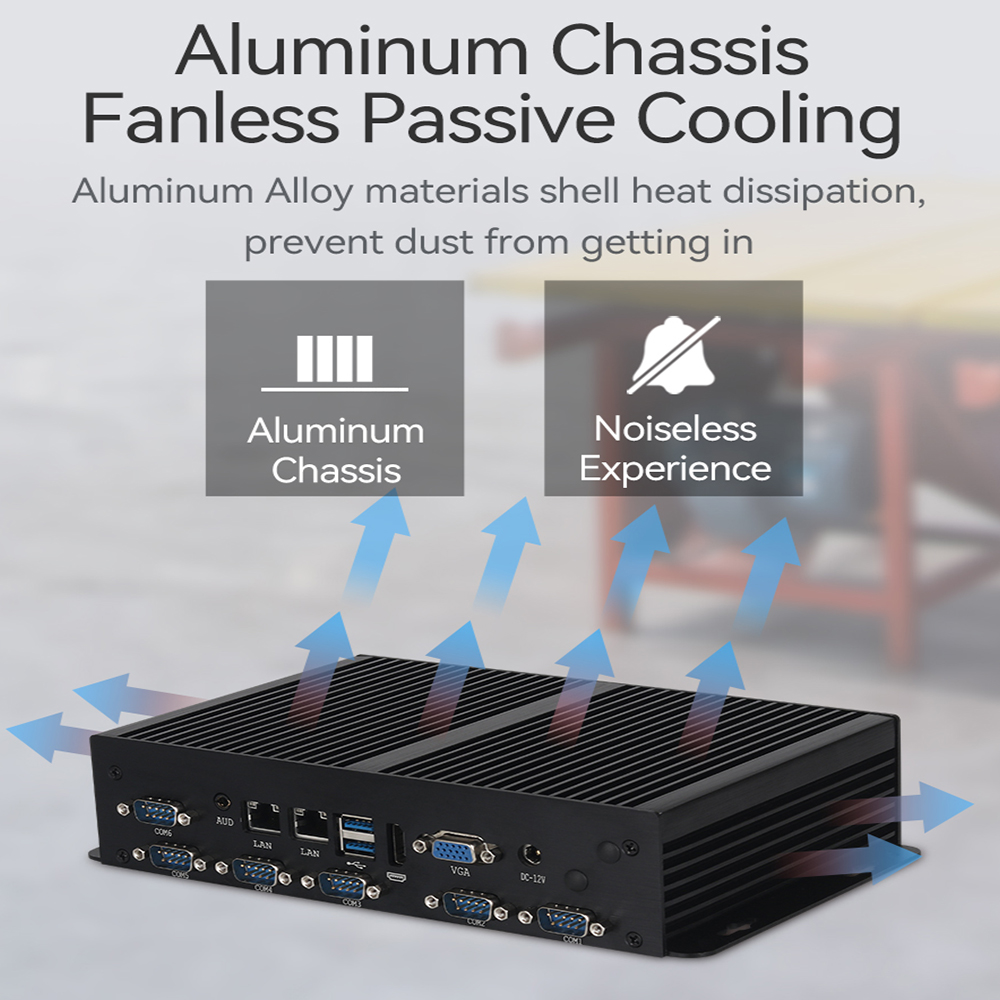

Adopting finned cooling design, it dissipates heat through the all-aluminum alloy body, which conducts heat faster and is fearless of high temperature, and can better prevent noise and dust.

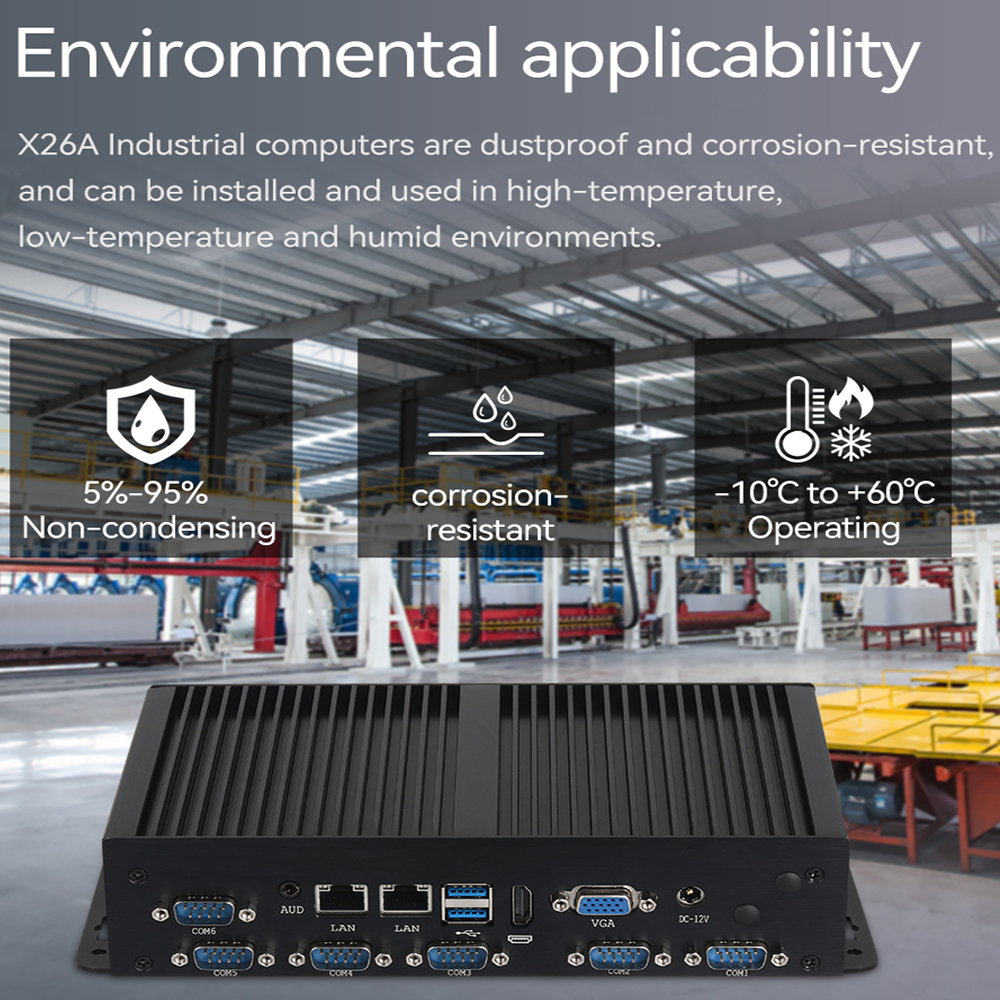

As an industrial control computer, the body is made of aluminum alloy metal material, which has stronger adaptability to cope with environmental changes such as high temperature and humidity, and has the ability of dust-proof, corrosion-resistant, and high and low temperature-resistant. It is also resistant to signal interference and vibration impact, and can operate stably in complex and changing industrial sites.

This embedded industrial control Mini PC is equipped with intel Core and Celeron series processors, which can meet the higher demand of modern industry can be applied to machine vision, face recognition, intelligent robotics, industrial automation and other scenarios.
