Factory Supply Guaranteed 100% Brand New Dongfeng 15tons hydraulic/hook arm garbage truck with garbage box
Hydraulic arm garbage truck (also called roll-off garbage truck, roll on roll off truck, hook lifter truck, hook lift garbage truck, carriage removable / dismountable garbage truck, hook loader container truck, etc. ) is designed to collect and transport municipal solid waste, widely used in residence community, hospital, municipal environmental section, garbage transportation station etc.
CLW GROUP roll on roll off garbage truck loading capacity ranges from 1ton, 2tons, 3tons, 5tons, 8tons, 14tons, 18tons, 20 tons etc.
VEHICLE IMAGES :

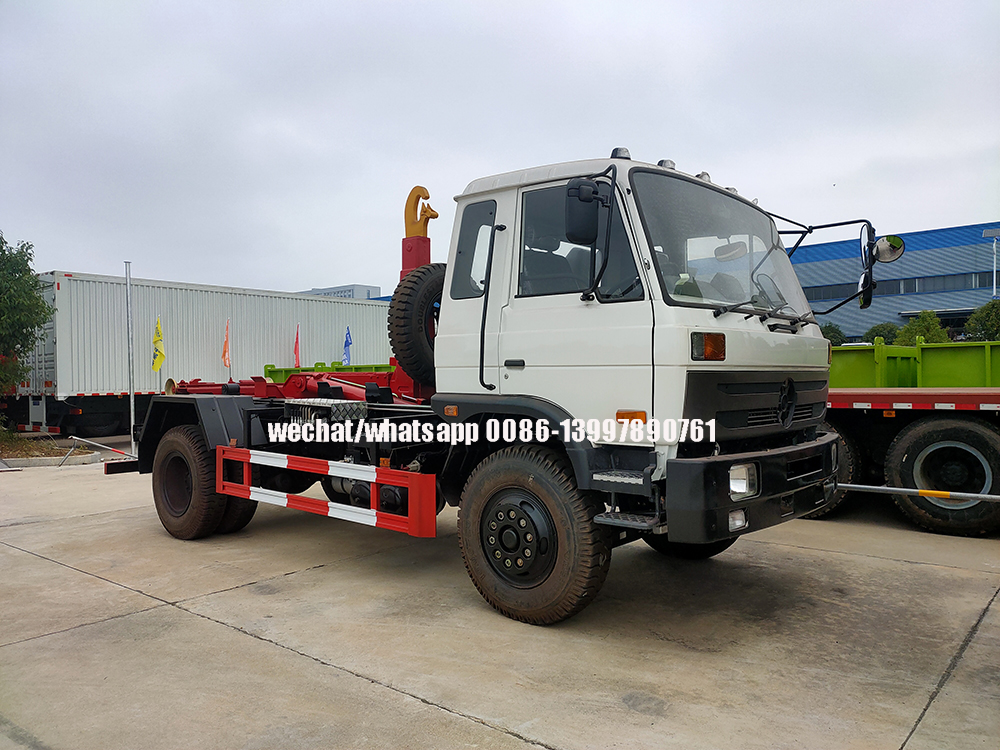

Dongfeng 15 tons hydraulic/hook arm garbage truck with garbage box Image 1
Dongfeng 15 tons hydraulic/hook arm garbage truck with garbage box Image 2
Dongfeng 15 tons hydraulic/hook arm garbage truck with garbage box Image 3
Dongfeng 15 tons hydraulic/hook arm garbage truck with garbage box Image 4
Dongfeng 15 tons hydraulic/hook arm garbage truck with garbage box Image 5
Dongfeng 15 tons hydraulic/hook arm garbage truck with garbage box Image 6
VEHICLE SPECIFICATIONS :
| Dongfeng hydraulic/hook arm garbage truck with garbage box | ||
| General | Vehicle Condition | Brand New |
| Chassis Brand | DONGFENG | |
| Overall Dimension | 8340 * 2500 * 3300 mm(L*W*H) | |
| GVW / Kerb Weight | 16000 kg / 9900 kg | |
| Cab | Cab Capacity | 3 persons allowed, with one sleeper |
| Air Conditioner | Air conditioner is equipped | |
| Engine | Fuel Type | Diesel |
| Engine Brand | CUMMINS | |
| Power | 190HP | |
| Displacement | 5900ml | |
| Emission Standard | euro 3 | |
| Chassis | Drive Type | 4X2, LHD or RHD |
| Transmission | 6F,1R | |
| Wheelbase/No. of axle | 4500 mm / 2 | |
| Tyre Specification | 10.00R20 | |
| Tyre Number | 6 tyres and 1 spare tyre | |
| Max Speed | 105 km/h | |
| Paint | Metallic paint | |
| Superstructure | Loading Capacity | 15Tons |
| Dustbin Material | Anti-corrosive Steel | |
| Hydraulic System | Chinese top brand multi-way valve, cylinders | |
| Control Method | Manual Control, remote control as optional | |
| Self-discharging Incline Angle | 50° | |
| Lifting Time | ≤60S | |
| Unloading Time | ≤60S | |
| The hook loader consists of underframe, linkage frame, fixed arm, telescopic arm, hook arm, locking system, hydraulic system --.. | ||
| All other standard accessories: Tool kit, English manual-- | ||
MORE DETAILS :

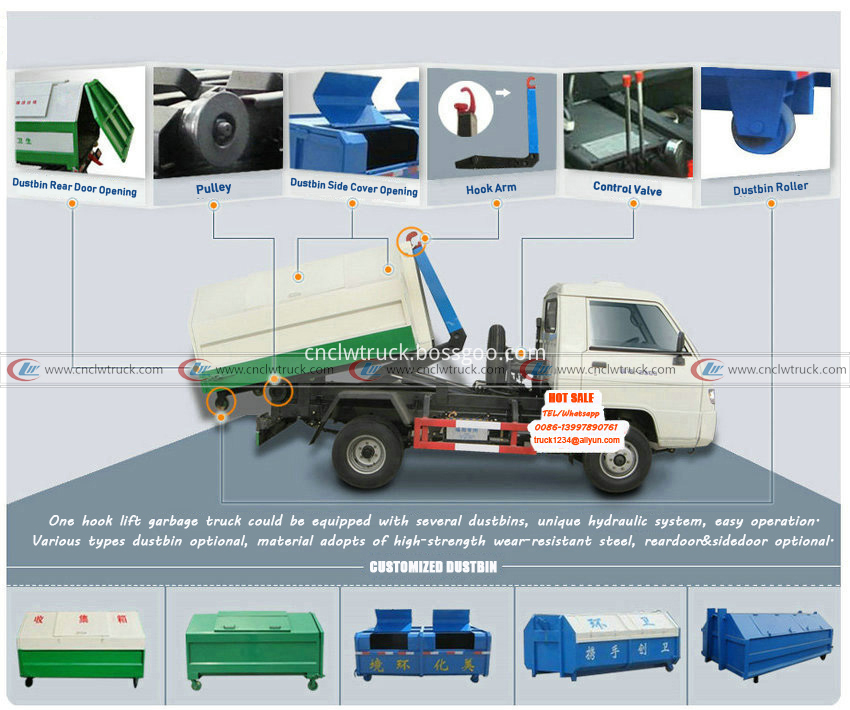

Roll on roll off garbage truck structural diagram

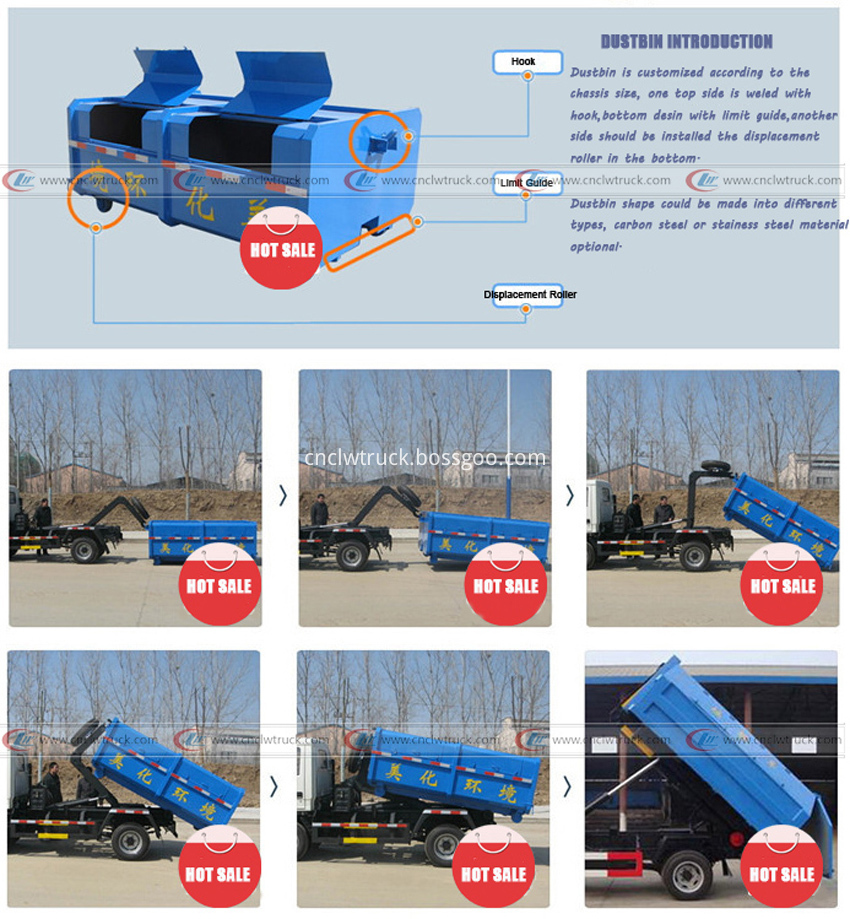

Hydraulic Arm Garbage Truck Working Status
Related Keywords: hook lift garbage truck , roll off garbage truck, hook arm garbage truck, howo hook lift garbage truck, hanging bucket garbage truck, upper body structure for hook lift garbage truck, etc
WHY CHOOS US:
We are professional special purpose vehicles manufacturer and exporter in china, we produce and sale trucks such as garbage truck, water tank truck, refrigeated truck, fire truck, ambulance, oil tank truck, road wrecker, car carrier, truck with crane, dump truck, oil tankers, semi trailer, etc..
Welcome to contact us for more information of the Dongfeng 15 tons hydraulic/hook arm garbage truck with garbage box at any time.
