DIA15mm to 200mm HDPE PE Polyethylene Extrusion Rod
High Density Polyethylene rod is known as HDPE rod. HDPE rod (high density polyethylene pe rod) has a melting point of about 130 ° C and a relative density of 0.941 to 0.960. It has good heat resistance and cold resistance, good chemical stability, high rigidity and toughness, and good mechanical strength. Dielectric properties and resistance to environmental stress cracking are also good. The melting temperature is 220 ~ 260C. For materials with large molecules, it is recommended that the melting temperature range is between 200 ~ 250C.
PE rod name High Density Polyethylene, polyethylene rod. PE rod is a kind of high crystallinity, non-polar thermoplastic material. The appearance of the original HDPE is milky white, and it has a certain degree of translucency in the thin section. The PE rod made by AHD plastic can reach diamter 400mm!
Polyethylene is an economical but tough engineering plastic which is used in a vast range of applications. The outstanding impact strength, low friction and excellent wear resistance properties makes HDPE ideal for cutting boards to wear part applications. HDPE is also FDA food approved making it a popular plastic for the food
Physical Datasheet:
| Item | HDPE PE Polyethylene Rod |
| Color | White / Black / Green /Blue/ Orange |
| Proportion | 0.96g/cm³ |
| Heat resistance (continuous) | 90℃ |
| Heat resistance (short-term) | 110 |
| Melting point | 120℃ |
| Glass transition temperature | _ |
| Linear thermal expansion coefficient | 155×10-6m/(m.k) |
| (average 23~100℃) | |
| Flammability(UI94) | HB |
| (Dipping into water at 23℃ | 0.0001 |
| Bending tensile stress/ Tensile stress off shock | 30/-Mpa |
| Tensile modulus of elasticity | 900MPa |
| Compressive stress of normal strain-1%/2% | 3/-MPa |
| Friction coefficient | 0.3 |
| Rockwell hardness | 62 |
| Dielectric strength | >50 |
| Volume resistance | ≥10 15Ω×cm |
| Surface resistance | ≥10 16Ω |
| Relative dielectric constant-100HZ/1MHz | 2.4/- |
| Bonding capacity | 0 |
| Food contact | + |
| Acid resistance | + |
| Alkali resistance | + |
| Carbonated water resistance | + |
| Aromatic compound resistance | 0 |
| Ketone resistance | + |
| Item name | High density Polyethylene Rod(HDPE Rod) |
| Diameter | 15mm, 20mm, 25mm, 30mm, 35mm, 40mm, 45mm, 50mm, 60mm, 65mm, 70mm,75mm, 80mm, 85mm, 90mm,100mm, 120mm, 150mm, 180mm, 200mm,230mm, 250mm, 300mm, 320mm, 350mm, 400mm |
| Length | 2000mm or 1000mm or can be customized |
| Color | white , black, green, blue, orange |
| Density | 0.96 g/cm3 |
| SAMPLE | FREE |
| FACTORY DIRECT SELL | |
Main Properties:
PE rod is odorless, non-toxic, feels like wax, has excellent low temperature resistance (minimum use temperature can reach -70 ~ -100 ℃), good chemical stability, resistance to most acid and alkali erosion (not resistant to oxidation properties Acid), insoluble in ordinary solvents at room temperature, low water absorption, excellent electrical insulation properties; low density; good toughness (also suitable for low temperature conditions); good stretchability; good electrical and dielectric insulation; low water absorption; Low water vapor permeability; good chemical stability; tensile resistance; non-toxic and harmless. However, PE rod is very sensitive to environmental stress (chemical and mechanical effects) and has poor heat aging resistance.

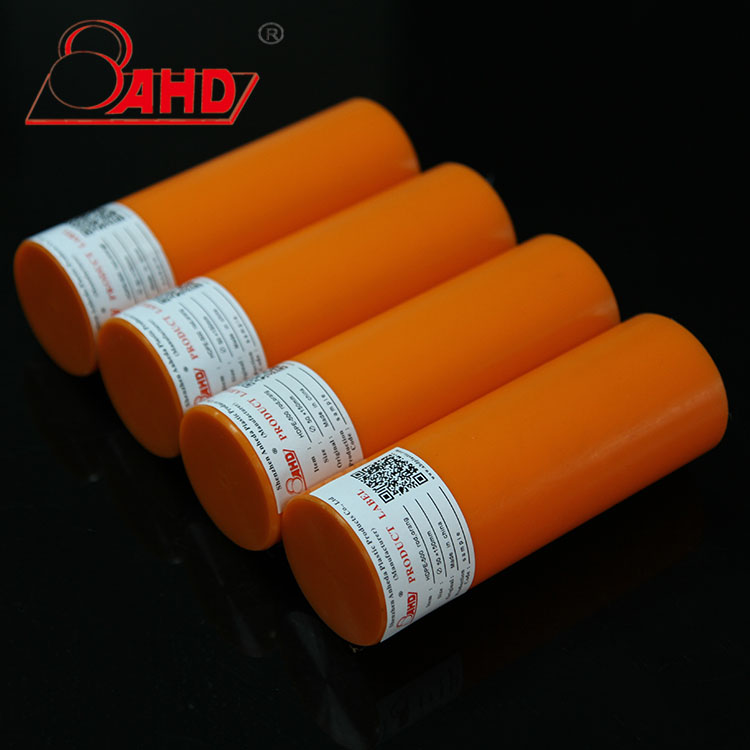

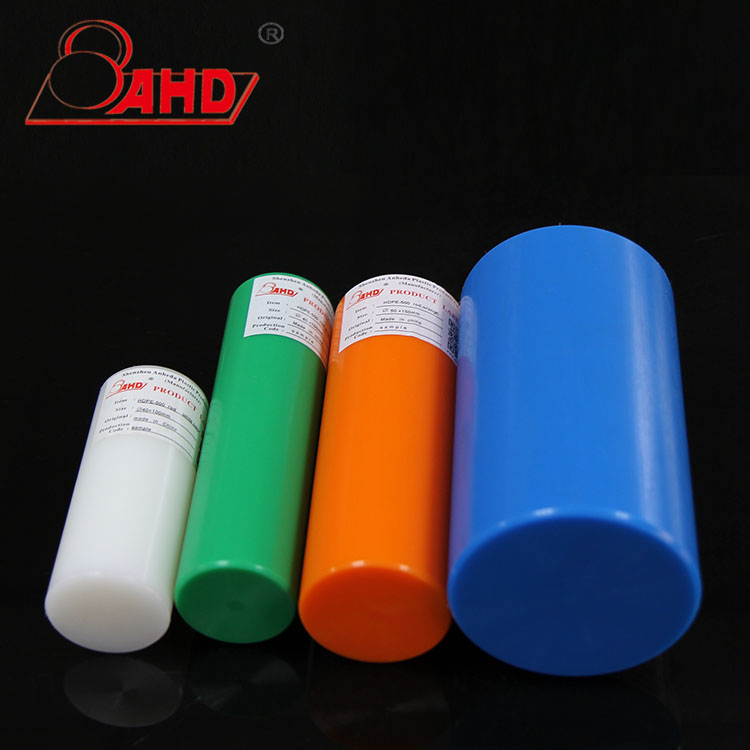

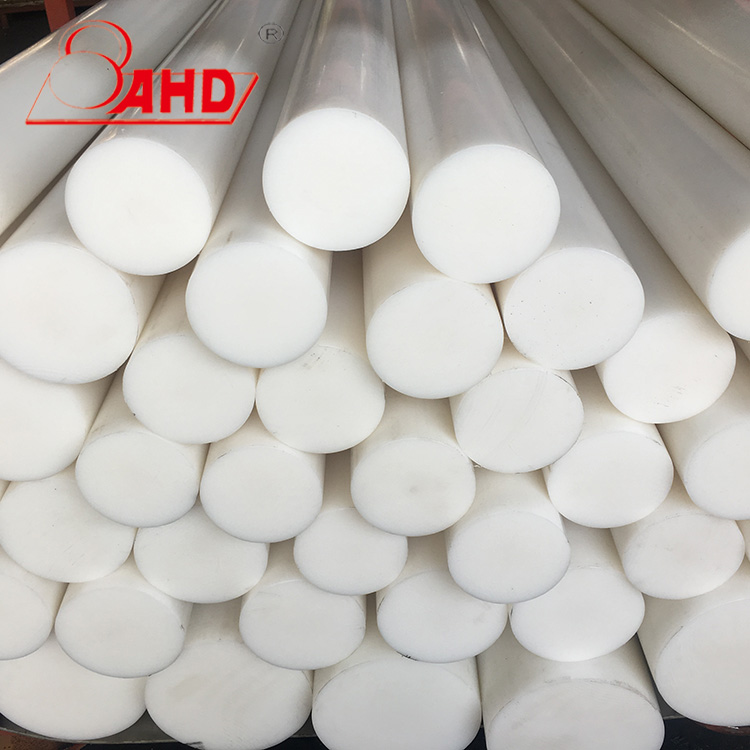

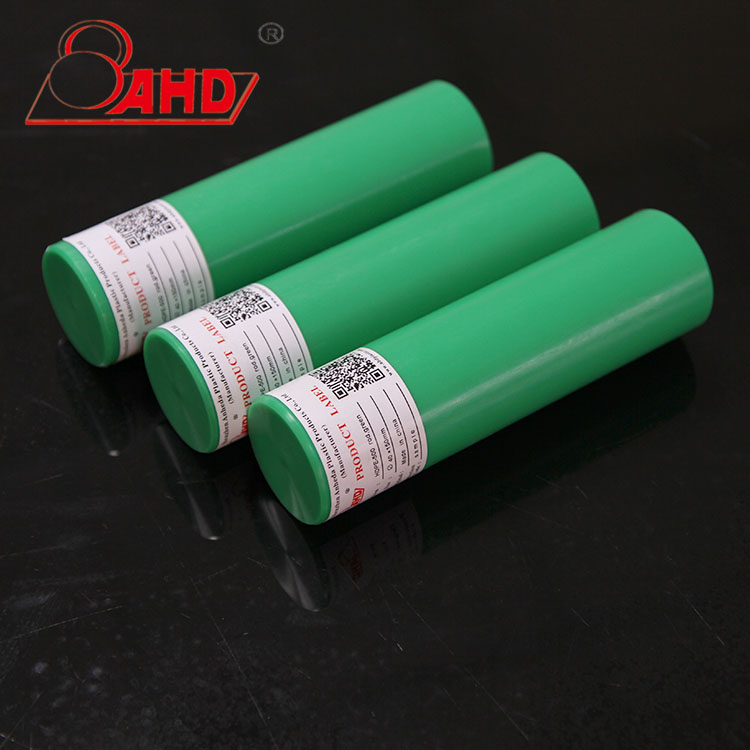

HDPE rod photo:
RFQ:
Q. Are you trade company or factory?
A: We are the factory of "PP SHEET, Polyethylene sheet , POM SHEET, POM ROD, HDPE ROD, ABS SHEET, PA6 SHEET, PU SHEET, PU ROD manufacturer in China since 1994S and own more than 250 production lines
Q: What is your main goods?
A: Our products inlcude "PP, ABS, PU, PA6, PC, HDPE, POM " sheet & rod
Q: Where is your factory?
A: We have 2 factories which produce different product, Shenzhen factory is located in Shajing Bao'an Dist, Donggunag factory is located in Hongmei Town, you are welcome to visit us to inspect by yourself
Q: Can i get free sample?
A: Sure, sample can be provided for quality checking and comparison if need. And we can ensure quality of mass production is same as sample
Q: What is the leading time?
A: The leading time is mainly depends on the order size, qty, color etc, if your have any inquiry, please send to us, we will check with production department to give an exact time! Normally will takes around 10--15 days for 20 tons sheets
