Polyethylene Plastic Sheet (high density polyethylene board) has a melting point of about 130 ° C and a relative density of 0.941 to 0.960. It has good heat resistance and cold resistance, good chemical stability, high rigidity and toughness, and good mechanical strength. Dielectric properties and environmental stress crack resistance are also good. The melting temperature is 220~260C. For materials with larger molecules, the recommended melting temperature range is between 200 and 250C.The pe board has the characteristics of high toughness, tensile strength and good wear resistance. It is widely used in chemical, clothing, packaging, food and other fields. Can be filled, flame retardant, modified, surface embossed, matte.
Hdpe Plastic Sheets
(high pressure low density polyethylene) is soft in nature, low in mechanical strength and low in melting point, and is suitable for film and cable insulation. Hdpe 500 Sheet (low pressure high density polyethylene) has high rigidity, high mechanical strength and high melting point. Suitable for hollow products, injection molding products, etc., widely used in the manufacture of ice court wall panels.
Standard size: 1500x3000mm, 1220x2440mm, 1000x2000mm
Thickness: 1mm to 200mm
| Thickness | Unit Weight per sheet (KGS) | ||
| mm | 1000x2000mm | 1220x2440mm | 1500x3000mm |
| 1 | 2.02 | 3.01 | 4.545 |
| 2 | 4.04 | 6.01 | 9.09 |
| 3 | 6.06 | 9.02 | 13.635 |
| 4 | 8.08 | 12.03 | 18.18 |
| 5 | 10.10 | 15.03 | 22.725 |
| 6 | 12.12 | 18.04 | 27.27 |
| 8 | 16.16 | 24.05 | 36.36 |
| 10 | 20.20 | 30.07 | 45.45 |
| 12 | 24.24 | 36.08 | 54.54 |
| 15 | 30.30 | 45.10 | 68.175 |
| 20 | 40.40 | 60.13 | 90.9 |
| 25 | 50.50 | 75.16 | 113.625 |
| 30 | 60.60 | 90.20 | 136.35 |
| 35 | 70.70 | ||
| 40 | 80.80 | ||
| 45 | 90.90 | ||
| 50 | 102.00 | ||
| 55 | 103.00 | ||
| 60 | 104.00 | ||
| 70 | 105.00 | ||
| 80 | 106.00 | ||
| 90 | 107.00 | ||
| 100 | 108.00 | ||
| 110 | 109.00 | ||
| 120 | 110.00 | ||
| 140 | 111.00 | ||
| 150 | 112.00 | ||
| 180 | 113.00 | ||
| 200 | 114.00 | ||
Physical Datasheet:
|
Item
|
PE Polyethylene Sheet |
|
Color |
White / Black / Green/Yellow/Blue/Red
|
|
Proportion
|
0.96g/cm³
|
|
Heat resistance (continuous)
|
90℃
|
|
Heat resistance (short-term)
|
11
|
|
Melting point
|
120℃
|
|
Glass transition temperature |
-
|
|
Linear thermal expansion coefficient (average 23~100℃) |
155×10-6m/(m.k)
|
|
Flammability(UI94)
|
HB
|
|
Dipping into water at 23℃
|
0.0001
|
|
Bending tensile stress/ Tensile stress off shock
|
30/-Mpa
|
|
Tensile modulus of elasticity
|
900MPa
|
|
Compressive stress of normal strain-1%/2%
|
3/-MPa
|
|
Friction coefficient
|
0.3
|
|
Rockwell hardness
|
62
|
|
Dielectric strength
|
>50
|
|
Volume resistance
|
≥10 15Ω×cm
|
|
Surface resistance
|
≥10 16Ω
|
|
Relative dielectric constant-100HZ/1MHz
|
2.4/-
|
|
Bonding capacity
|
0
|
|
Food contact
|
+
|
|
Acid resistance
|
+
|
|
Alkali resistance
|
+
|
|
Carbonated water resistance
|
+
|
|
Aromatic compound resistance
|
0
|
|
Katone resistance |
+
|

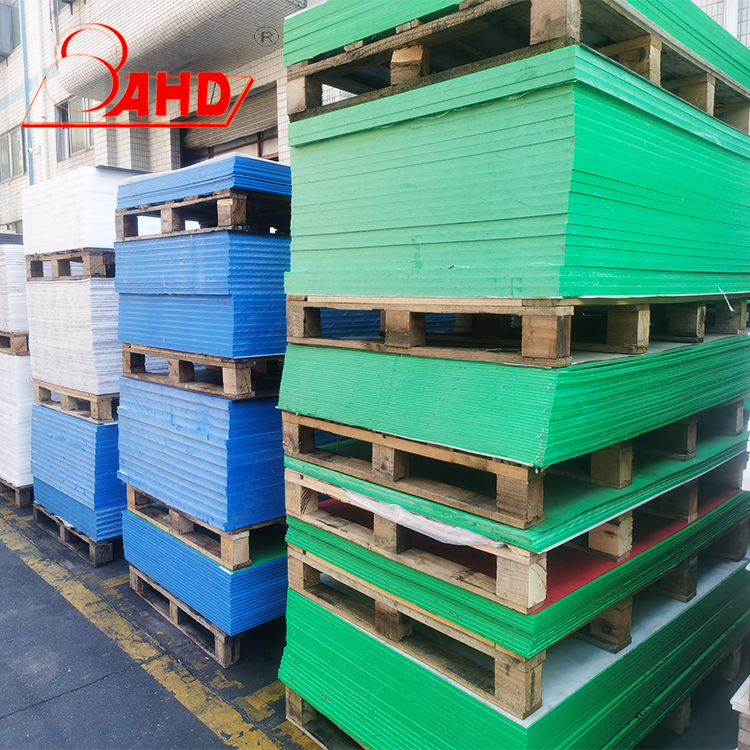

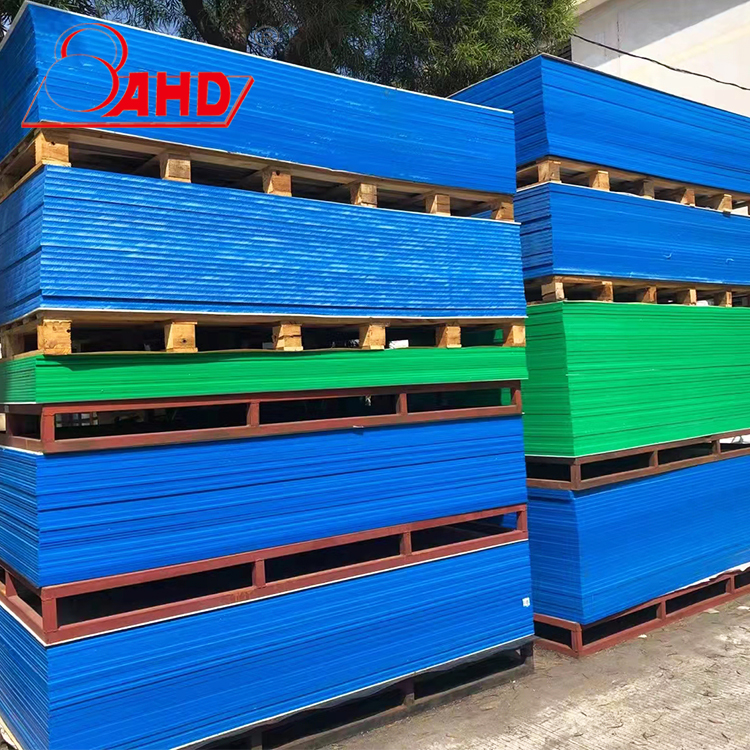

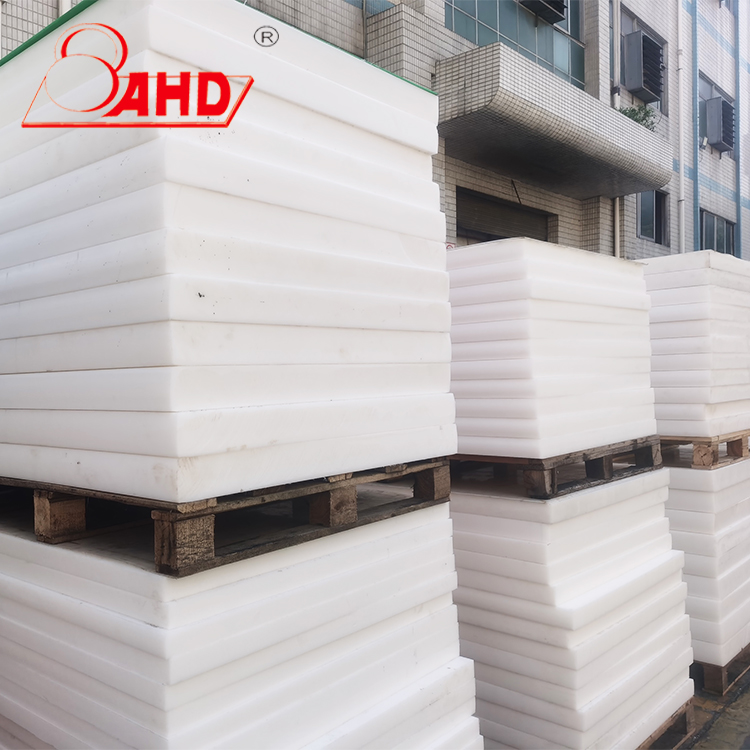

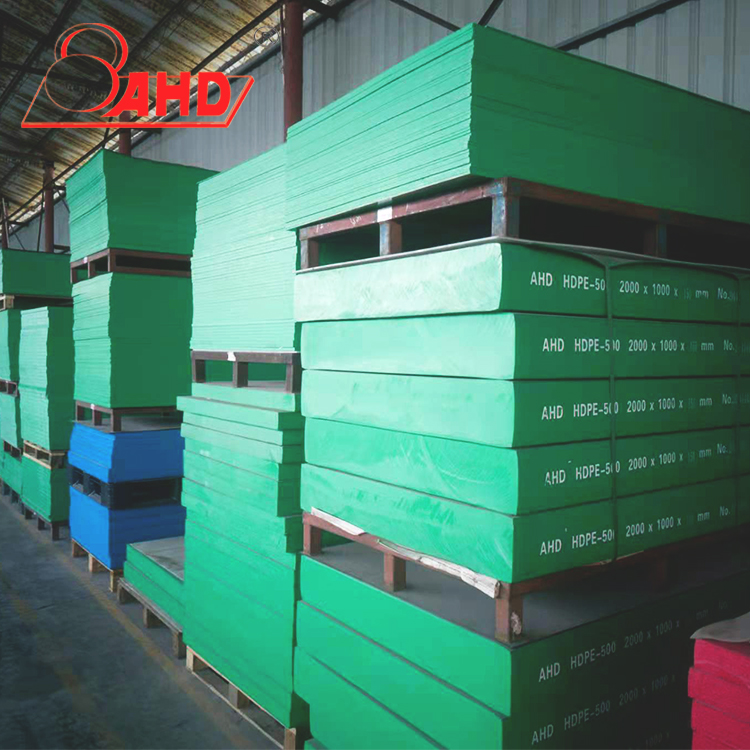

Detail Show:
Our Service:
1. Quotation reply: Answered within 24h.
2. MOQ: For general size, MOQ can be 100KGS.If you need to customize products, MOQ is 1000KGS of each specification.
3. Sample: samples can be sent free, you just need pay for express fee.
4. Mixed batch: Support mixed batch.
5. After sales service: Your satisfaction is our final goal. You can always get a solution from us when you have questions after receiving the goods.
6. Main goods: HDPE sheet and rod, POM sheet and rod, PC sheet and rod, PU sheet and rod, PP sheet and rod, PEI sheet, PPS sheet, ABS sheet
