3V1-06 1/8'' 3 Way Air Solenoid Valve 12V
BRANDO is a Pneumatic Solenoid Valve manufacturer and exporter in Ningbo, China, which has more than 10 years experience. The most common types are 2/2 way, 3/2 way, 5/2 way and 5/3 way. The valves can be single or double acting (one or two solenoids).
Brando Supply:
1. 5/2 Way Pneumatic Solenoid Valve: 4V110-06, 4V120-06, 4V210-06, 4M220-06, 4V210-08, 4V220-08, 4V310-08, 4V320-08, 4V310-10, 4V410-15, 4V420-15, 4M110-06, 4M120-06, 4M210-06, 4M220-06, 4M210-08, 4M220-08, 4M310-08, 4M320-08, 4M310-10, 4M320-10
2. 5/3 Way Pneumatic Solenoid Valve: 4V130C-06, 4V130E-06, 4V130P-06, 4V230C-06, 4V230E-06, 4V230P-06, 4V230C-08, 4V230E-08, 4V230P-08, 4V330C-08, 4V330E-08, 4V330P-08, 4V330C-10, 4V330E-10, 4V330P-10, 4V430C-15, 4V430E-15, 4V430P-15
3. 3/2 Way Pneumatic Solenoid Valve: 3V110-06, 3V120-06, 3V210-06, 3V220-06, 3V210-08, 3V220-08, 3V310-08, 3V320-08, 3V310-10, 3V320-10, 3V410-15, 3V420-15, 3V1-M5, 3V1-06, 3V1-08.
4. 2/2 Way Pneumatic Solenoid Valve: 2V025-06, 2V025-08
Data of 3V1 Series AirTAC Type Solenoid Valves:
| Model | 3V1-M5 | 3V1-06 | 3V1-08 |
| Medium |
Air (to be filtered by 40 μ m filter element) |
||
| Action | Direct Acting | ||
| Way & Position | 3 Port 2 Position | ||
| Port Size | M5 | 1/8'' | 1/4'' |
| Orifice Size | 1.0mm | ||
| Pressure Range | 0 to 0.8MPa | ||
| Max. Resistance Pressure | 1.2 MPa | ||
| Coil Voltage | 12V, 24V, 110V, 220V | ||
| Coil Power | AC: 5.5VA, DC: 4.8W | ||
| Max. Frequency | 10 cycle/sec | ||

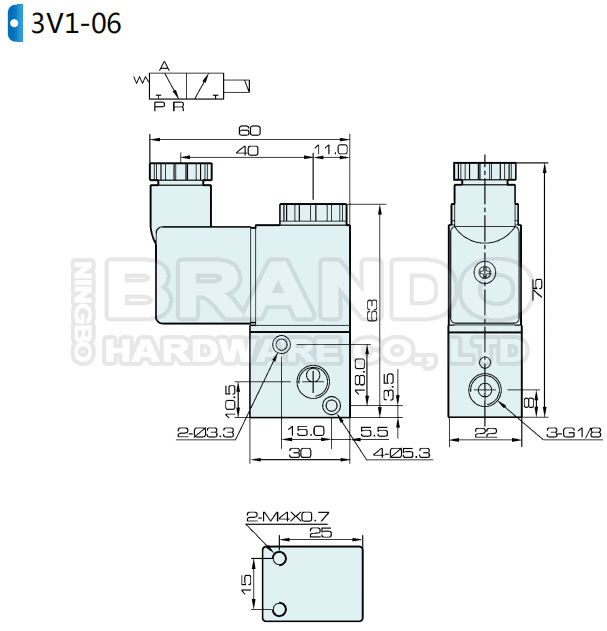

Dimension of 3V1-06 Pneumatic Solenoid Valve:
Factory Production Display of Pneumatic Solenoid Valve:
More Pneumatic Solenoid Valves for you to choose:
*4V100 Pneumatic Valves *4V200 Pneumatic Valves *4V300 Pneumatic Valves *4V400 Pneumatic Valves
*5/2 Way Pneumatic Valves *5/3 Way Pneumatic Valves *2/2 Way Pneumatic Valves *Pneumatic Fast Fittings
Focus on your demands, Offer you best solution:
√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing
