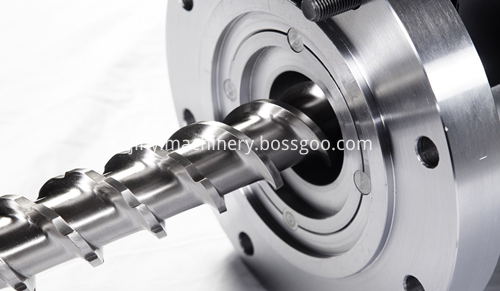

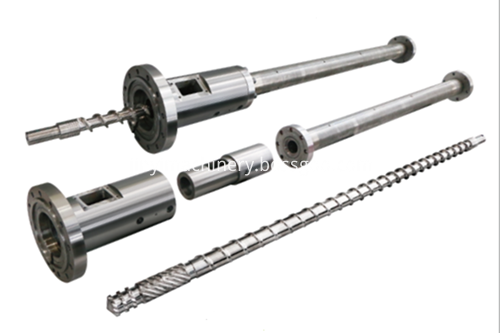

Extrusion Single Screw Barrel
Ningbo Jinyi extrusion series screws and barrels are manufactured based on years of expertise in design, R&D and application segments of various pipes, profiles, cables, films, blown molding, wire drawing and granulation in the extrusion field , to provide customers with advanced design as a total solution provider.
Parameters
Screw out diameter d：15mm ≤ d ≤ 300mm
Screw length L：L ≤ 10000mm
Nitriding hardness：HV ≥ 900
After grinding 0.20mm, HRC ≥760 (38CrMoALA);
Nitriding brittleness：≤ 2 level
Surface finish Ra：Ra0.4µm
Straightness：0.015mm
Thickness of bimetallic layer：1.5-2.0mm
Hardness of bimetallic layer：HRC56-60
Thickness of chrome plating layer: 0.03-0.05mm
Applications
It is suitable for ABS sheet, PVC soft and hard pipe, cable, blown film, cast film, blow molding, profile, pipe and other products.
Advantages
1. Unique technical design with larger output
2. Advanced equipment with finest machining
3. Perfect match of tolerance
