Tie Bars for Two Platen Injection Molding Machine

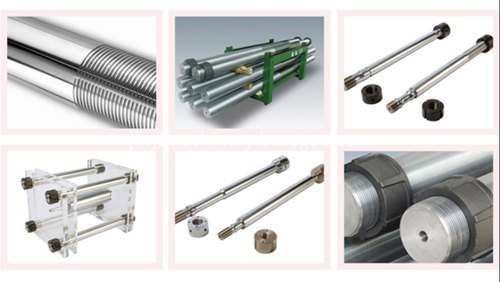

Our second factory, Ningbo Lichao Tiebar Precision Machinery Co., Ltd. is specialized in manufacturing nitriding and chrome plated tie bars together with matching guide rods, piston rods, nuts and other accessories for injection molding machine, die casting machine and forging machine.

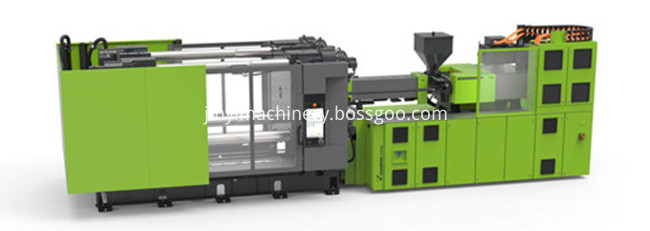

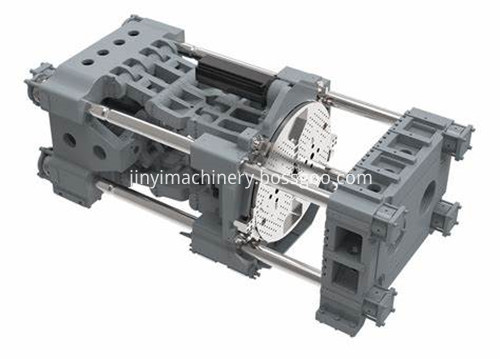

For two-platen injection molding machine, tie bars are assembled for supporting and aligning the platens, which then support the mold. The space between the tie-bars limits the size of the mold that can be placed in the injection molding machine.
Technical Parameters

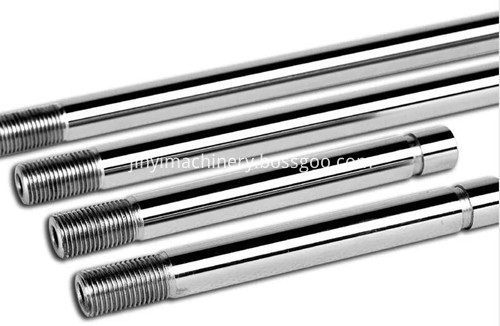

Product Name : Tiebar or Tie Bar
Material: JYN3
Heat Treatment: Quench & Temper
Surface Treatment: Nitrided, post-oxidated or Chrome Plated
Chrome Thickness: 0.05mm
Surface Hardness: > 55 HRC
Max. Diameter: 600mm
Max. Length: 10,000mm
Application
Injection molding machine, die casting machine and forging machine, etc.

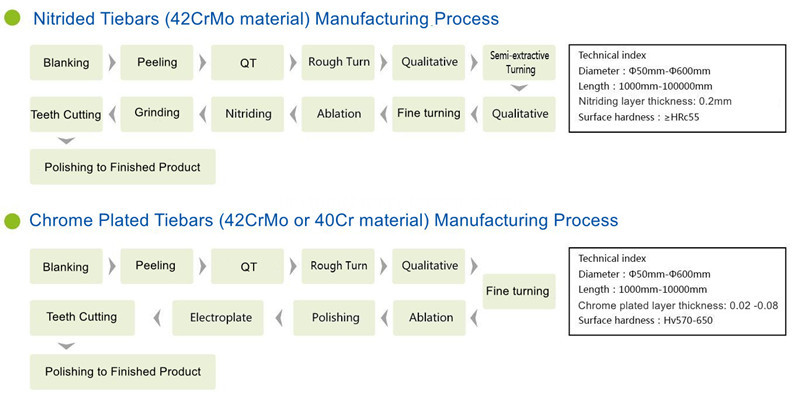

Manufacturing Process
Here is a comparison of the different manufacturing processes for nitrided and chrome plated tiebars.
