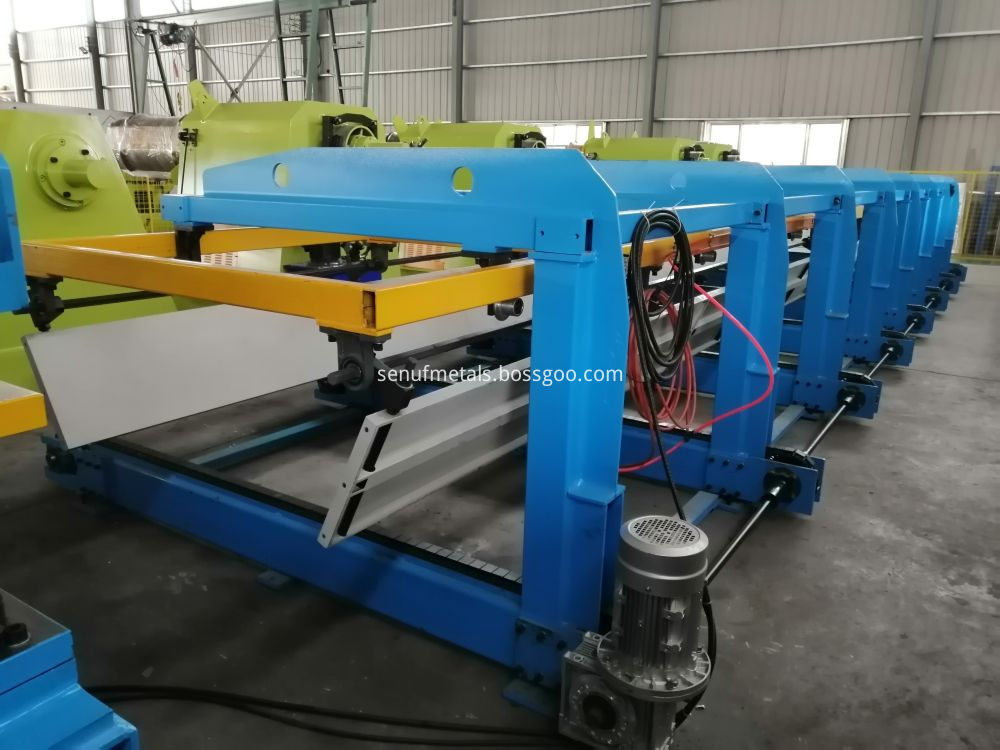

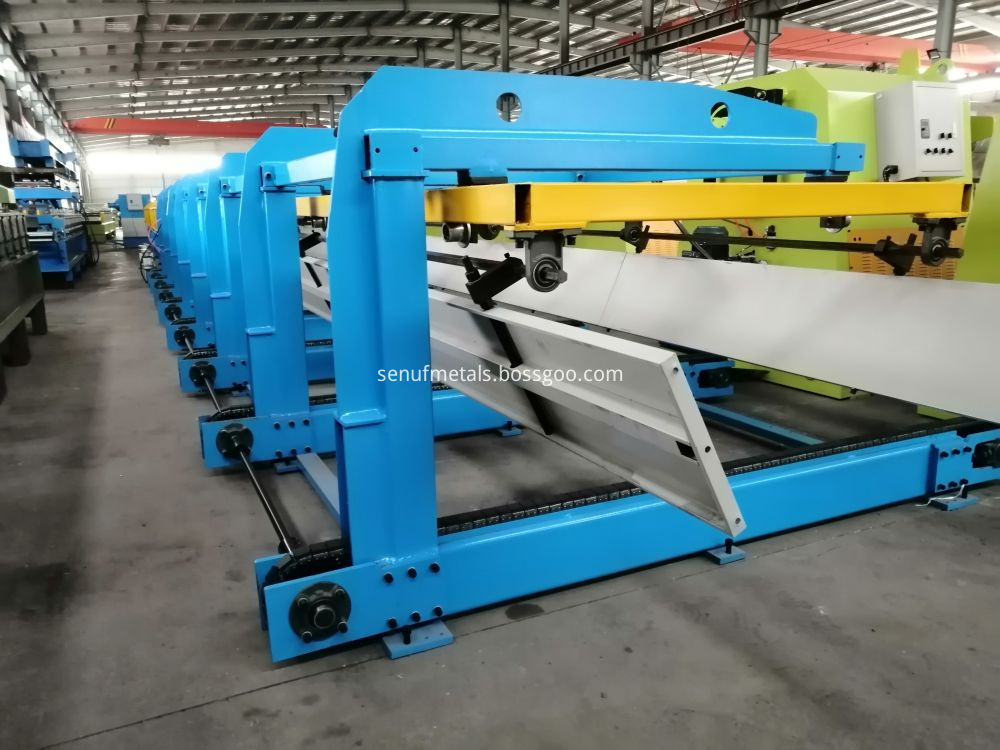

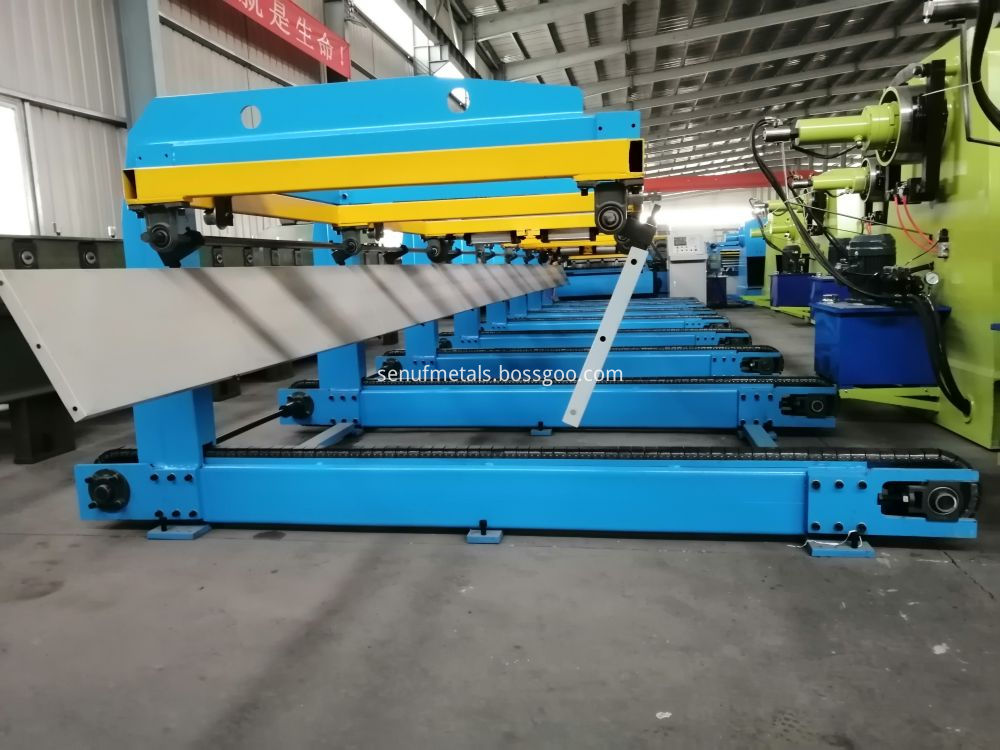

Sheet Stacker for Metal Rollforming System
With a stacker sheets are protected from
scratches all the while keeping your rollformer in production. The sheets stay protected by sliding along the rollers and guides rather than each other. The pneumatic powered stacker arms are triggered by a photo eye which
releases the panels and drops them onto the stacked sheets.The design ofboth stackers allows for minimal drop distance of the panel which is critical key to a successful stacker.The drop distance is normally four
inches.The less distance the sheet has to
drop,the more uniform the stacked sheets will be.
Product Details
Technical Specification of Sheet Stacker for Metal Rollforming System:
Outline dimensions:6000mmx1800mmx1500mm
Pneumatic system:Air pump(air supply power), equipped by user
Shift-out electric motor power: 3KW
Feedingsystem:Delivering material by transmission shaft.Motor power:2.2KW
Storage table:Move between the left and right by gear motor motor power: 2.2KW
Electric control system: Feeding and blanking material automatically
Max.Length of feed:15000mm Gas source:≥1M3 Stacker type:6m
Thickness:Max300mm
Main used production liner
Metal sheet roofing forming machine ,C Purlin Roll Forming Machine; Z Purlin Roll Forming Machine
Main features
Sheet Stacker for Metal Rollforming System
Main motor power:2.2kw
Drive:pneumatic
material: 45#forge steel and quenched
Length of stacker:6m/8m/12m
Weight of stacker:About 5ton
Size of stacker:About10000x1800x2000mmLxWxH
Color of stacker:Yellow and Blue or Customized
