2mm 12mm 50mm Clear PC plastic sheet 1000*2000mm Polycarbonate solid sheet board

PC has better impact resistance, weather resistance and aging resistance than plexiglass. Generally used in indoor plexiglass, outdoor needs long-term weather resistance and high temperature. There are many PCs, and the specific advantages and disadvantages are as follows: 1. Mechanical properties: PC endurance board has excellent impact resistance, which is 250 times higher than traditional glass and 30 times higher than acrylic. 2. Good tensile strength, good heat resistance of PC endurance board, even at 120℃, its tensile strength can still reach 350kgf/cm23, bending strength: PC endurance board has good bending resistance, even if the bending angle reaches 90° Does not break. 4. Melting temperature: The melting temperature of PC endurance board is 135℃, and its continuous use temperature reaches 120℃. 5. Light transmittance: The light transmittance of PC endurance board is more than 85%, which is equivalent to glass. 6. Weather resistance: Generally, PC endurance sheets are exposed outdoors for a long time, and it is easy to cause yellowing and surface degradation due to ultraviolet radiation. The surface of Zhuoni PC endurance board is covered with a UV-resistant layer. Even if it is exposed outdoors for a long time, its optical and mechanical properties have no significant changes.

Pc Solid Plastic Rods Applicatiion:

Residential building lighting, canopy, carport, sun room, stadium roof, pool roof, transportation infrastructure, industrial building lighting, mall aisle, hotel atrium, greenhouse, soundproof wall, advertising light box, signage, security, interior decoration, etc.

Pc Plastic Rod Specification

Item name	PC ( Polycarbonate) sheet
Type:	extruded
Size:	1000*2000mm
Thickness:	15---200mm
Density:	1.2 g/cm³
Color:	Translucent
Brand name:	AHD
Material:	100% virgin material
Sample:	FREE
Acid resistance:	YES
Food Contact	YES

Physical Datasheet:

Item	PC sheet
Color:	clear
Proportion:	1.2g/cm³
Heat resistance (continuous):	125℃
Heat resistance (short-term):	135℃
Glass transition temperature:	150℃
Linear thermal expansion coefficient (average 23~100℃):	65×10-6 m/(m.k)
Average 23--150℃	65×10-6 m/(m.k)
Flammability(UI94):	HB
Tensile modulus of elasticity:	2400MPa
Dipping into water at 23℃ for 24h	13%
Dipping into water at 23℃	0.35%
Bending tensile stress/ Tensile stress off shock	70/- Mpa
Breaking tensile strain	˃50%
Compressive stress of normal strain-1%/2%:	18/35 MPa
Pendulum gap impact test	9 KJ/m2
Friction coefficient:	0.55
Rockwell hardness:	M75
Dielectric strength:	28 kv/mm
Volume resistance:	10 15Ω×cm
Surface resistance:	10 15Ω
Relative dielectric constant-100HZ/1MHz:	3/3
Critical tracking index(CTI)	600
Bonding capacity:	+
Food contact:	+
Acid resistance:	+
Alkali resistance	-
Carbonated water resistance:	0
Aromatic compound resistance:	-
Ketone resistance:	-

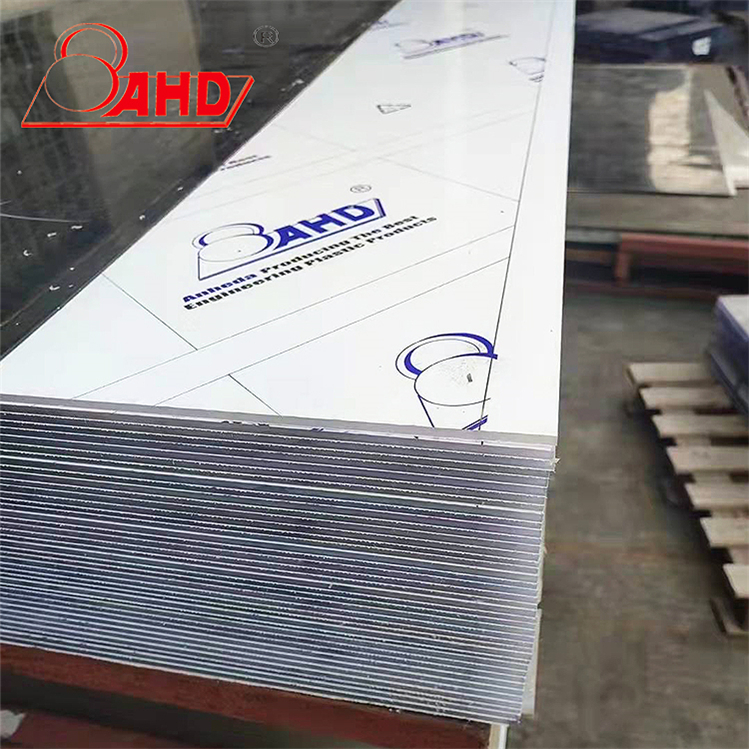

PC Sheet Photo:
