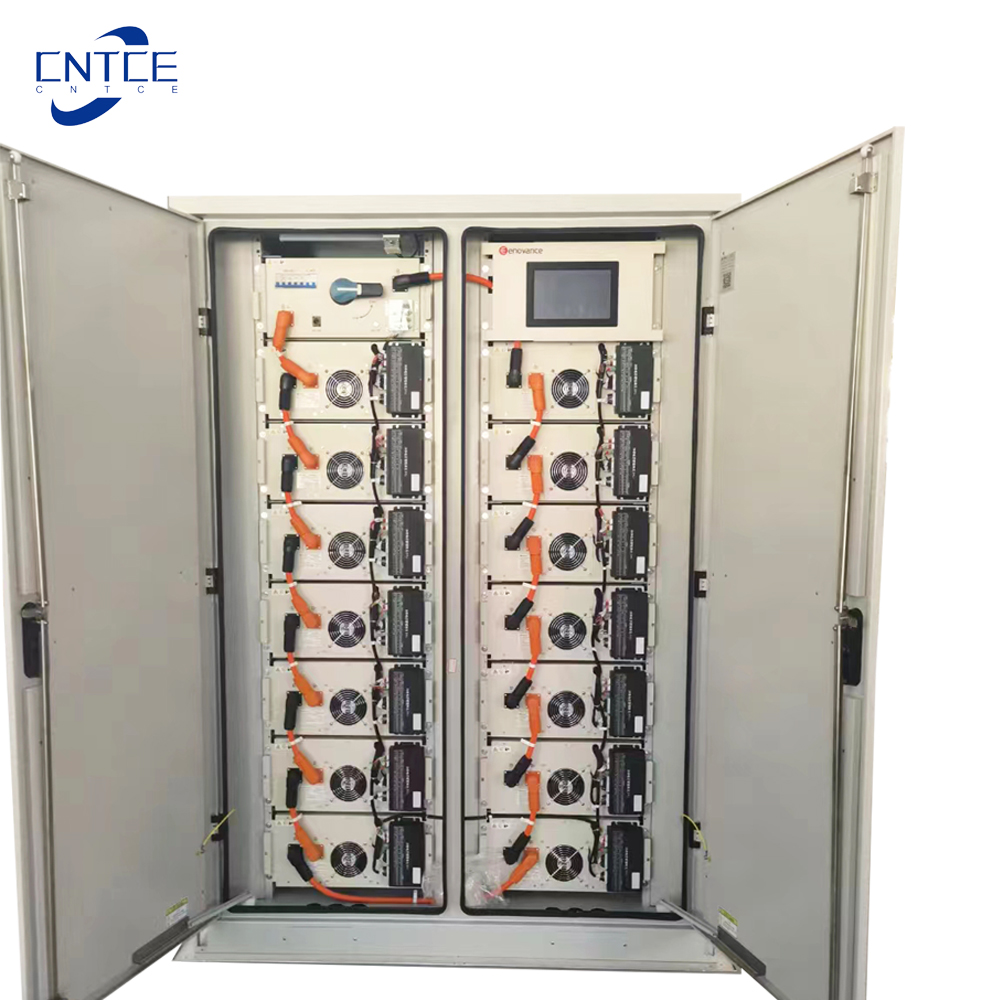

Outdoor Battery Storage Cabinet System

Outdoor Battery Storage Cabinet System

2 month ago

4 0

Guangdong Yuqiu Intelligent Technology Co.,Ltd

 3 month year

Product details

CNTCE energy storage technologies manufactures indoor and outdoor industrial enclosures to meet the needs of the Battery + Energy Storage industries. With the increasing importance for renewable energy sources, you need storage for the energy and power supply.

1. All-in-one energy storage system solution supports simultaneous access to load, battery, power grid, and photovoltaic

2. Home solar storage system manufactures indoor and outdoor industrial enclosures to meet the needs of the Battery + Energy Storage industries.

3. Battery energy storage systems have perfect protection function to protect inverter and battery

4.Solar power home systems, easy to use

5. Solar Power Battery Storage can be expanded to facilitate flexible , Multiple working modes can be flexibly set.

6. Battery energy storage systems Seamlessly switch from off-grid state to provide uninterrupted supply of load

7. House solar systems IP55 stainless enclosure with corrosion resistant painting.

8. Built-in battery management system, HVAC, and automatic fire suppression system

Specifications

Maximum power 5kW/10KW/20KW/30KW

rated power 3kW/5KW/10KW/15KW

Rated voltage 110v-460V

rated current 5--30A

system capacity 5kWH/10KWH/20KWH/30KWH

AC model 1 phase/3 phases

Battery Type LiFePO4(LFP)

grid mode Off Grid

PV Maximum input voltage 500Vdc

PV Maximum input power 5kW/10KW/20KW/30KW

PV MPPT working voltage range >250

PV MPPT full load voltage range >110

Battery rated capacity 5kWH/10KWH/20KWH/30KWH

Battery rated voltage 51.2V

Battery working voltage 40V-58.4V

Rated charge and discharge rate 0.5C

Battery Maximum charge and discharge current 5A-90A

EMS user interface LCD/LED (OPTION)

EMS Communication EMS Interface Ethernet，ModbusTCP，CAN,RS485(OPTION)

EMS RF antenna Wireless Antenna Interface(OPTION)

EMS GPS interface GPS Antenna Port(OPTION)

EMS Power input DC24V(OPTION)

System life 6000次@25℃，0.5CP，95%DOD,SOC≥70%

Altitude 2000M

storage temperature -40℃ ~ 70℃

Operating temperature -20℃ ~ 55℃

environment humidity 5% - 95%RH,

Fire Fighting System Hot melt adhesive/heptafluoropropane/non-storage perfluorohexanone fire extinguishing system

cooling method Industrial air conditioner/ intelligent air cooling

Air Conditioning Cooling Capacity AC4000W/AC8000W/AC16000W/AC32000W

degree of protection IP55/IP66
