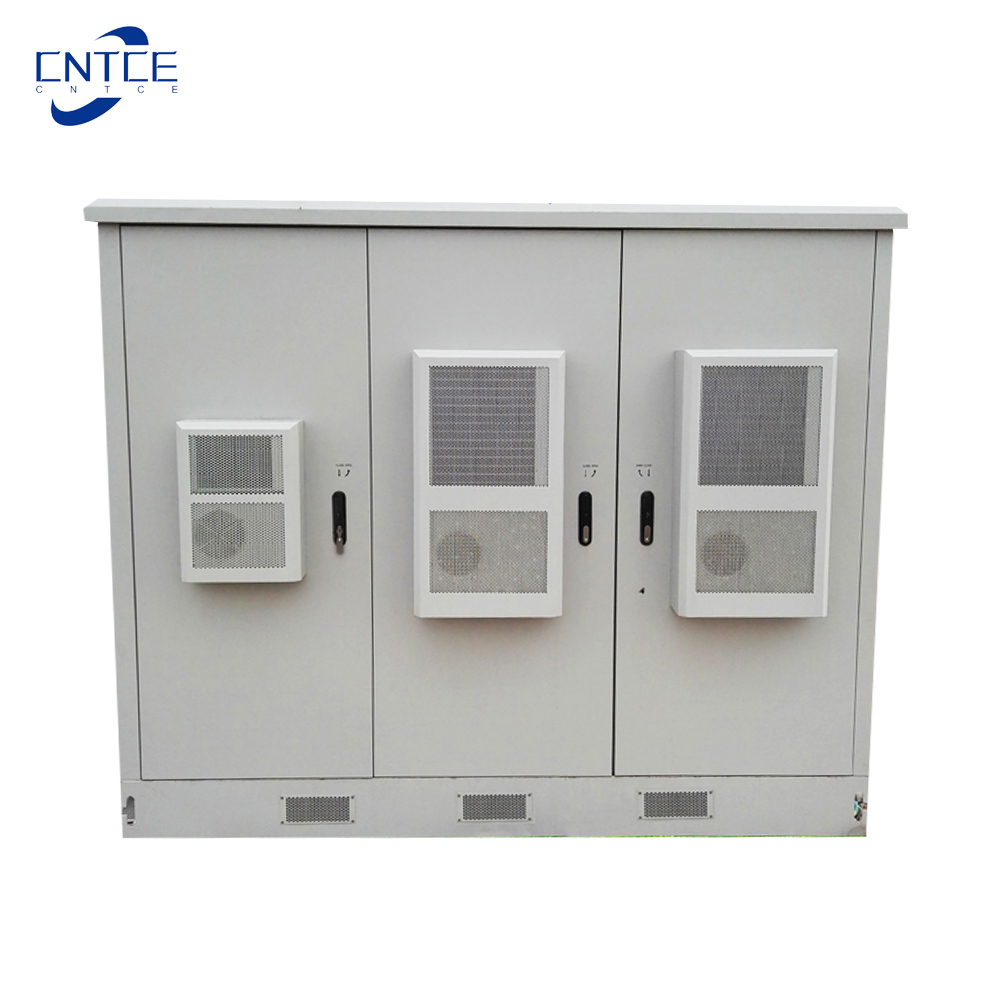

Outdoor Weatherproof Equipment Cabinet

2 month ago
5 0
Product details

Product Feature

1. Sandwich panel construction.

2. Outdoor powder coating.

3. Galvanized steel material.

4. Anti-theft three-points outdoor cabinet lock, excellent keyhole protection device.

5. IP65/IP55 cabinet, walls and roof in double steel with high quality insulation.

6. High performance Air-conditioning unit for heat removal.

7. Door keeper to hold door open at service.

8. Pass earthquake intensity 8 anti-seismic performance test.

9. Waterproof, Ventilation, Heat dissipation, Anti-corrosion,  Lightning Protection, Dustproof, Firm Structure, Modular Installation.

Product Details

Regular Items

Model

Height(U)
(Internal height)

External Dimension

Option Equipment

H(mm)

W(mm)

D(mm)

CNT606060

10U

600

600

600

Material: steel plate, galvanized plate, stainless steel 304, stainless steel 316
Color: conventional RAL7035, customizable
Mount method: floor-standing installation
Equipment shelves: equipment rack, battery rack,         integrated rack
Maintenance method: front door, front and rear door
Protection level: IP55/IP65/IP66
Air conditioner:
   AC220V: 300W, 600W, 1000W, 1500W, 2000W, 3000W, 5000W
   DC48V: 300W, 600W, 1000W, 1500W, 2000W, 3000W
Heat exchange: 40W/K, 60W/K, 80W/K, 120W/K, 150W/K 200W/K
Switching power supply: 48V100A, 48V200A, 48V300A, 48V400A, 48V600A,
UPS: 500VA, 1KVA, 2KVA, 3KVA, 5KVA, 6KVA, 10KVA
Battery: 48V100Ah, 48V200Ah, 48V280Ah
Sensor: Door , temperature and humidity, smoke, water immersion, tilt

CNT906565

16U

900

650

650

CNT136565

25U

1300

650

650

CNT167575

31U

1650

750

750

CNT161575

31U+31U

1650

1500

750

CNT188080

35U

1800

800

800

CNT217575

40U

2050

750

750

CNT219090

40U

2050

900

900

CNT211890

40U+40U

2050

1800

900

CNT212790

40U+40U+40U

2050

2700

900

CNT212810

40U+40U+40U+40U

2050

2850

1000

CNT249090

48U

2400

900

900



Outdoor Power Cabinet

Option Configuration:

Heat dissipation method: industrial air conditioner/heat exchange/fan

Power supply mode: switching power supply/UPS/PCS power supply

Backup mode: lead-acid battery/lithium iron phosphate battery

Power distribution mode: DC/AC/single/three-phase power distribution

Dynamic environment monitoring: customer equipment/environmental data collection

Protection class: IP20/IP54/IP55/IP66

Color Appearance: RAL7035/customized outdoor powder coating

System certification: ISO9001, ISO14001, ISO45001

Specifications

Outside dimension: H*W*D 2100*2600*1200 MM

Cabinet dimension: H*W*D 1900*2500*1100 MM

Cabinet composition: cabinet body + cabinet door + base + top cover + rack + cabinet lock

Cabinet type: 1 unit, 1 cabin, front door

Cabinet material: Galvanized steel/Aluminum/stainless steel/Color coated steel

Thermal insulation performance: thermal conductivity <0.472W/(m2.k)

Equipment shelf: 19 inches, 3 pairs of support bars;

Cabinet base: 100mm high, 2.0mm thickness

Line entry method: Bottom in and Bottom out Φ50*8

Hinge Embedded

Lighting 48V/220V LED Lamp

Lock built-in door, 3-point anti-theft lock

Payment T/T,L/C,Western Union

Warrenty 1 Year

Anti-theft design: built-in door, built-in hinge, 3-point anti-theft lock

Structure Welded/Frame/Assembly

Protection level: IP55

Color appearance: RAL7035 GREY/Custom

Working temperature -40~55℃

Delivery time 15~25 working days

Package Fumigation Wooden Box/ Pallet and Carton

Certification ISO9001/ISO14001/ISO45001

Electrical control: LED light *1

Fan DC48V/220Vac

Power Distribution (PDU)(Option) AC INPUT: 63A/2P *1; AC OUTPUT: 16A/1P*4;DC OUTPUT: 16A/1P*4 or customer requirement

Environment Monitoring Unit(Option) 48VDCCommunication port: RS485, TCP/IP, SNMP optional

Door Sensor(Option) Monitor door open status

Water Sensor(Option) Monitor water status inside

Temperature & Humidity Sensor(Option) Monitor temperature and humidity

Smoke Sensor(Option) Monitor smoke status

Ground Bar(Option) Resistance value

Power supply(Option) 150A/200A/300A/400A/600A
